Currently Unavailable
-
-
-
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
- Manufacturer Limited Warranty period (parts): 3 years
- Manufacturer Limited Warranty period (labor): 3 years
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
A simple and inexpensive motherboard for the enthusiast or the first time builder, the Asus M2V-TVM is a great starting point for anyone wanting to build a system or upgrade their motherboard. Designed with the small form factor case in mind, this motherboard will fit into most compact desktop systems. Equipped with an AMD socket AM2 suitable for Athlon 64 processors, including the X2 and FX series, the M2V-TVM is more than capable of handling anything you might think of.
Using the VIA K8M890 chipset with integrated graphics in conjunction with up to 2GB of DDR2 memory, the M2V-TVM is perfect for those that don’t need a discrete graphics card. You can even output to your home video system with connectivity to external home theater audio systems via a coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
It also includes a 10/100 Ethernet port, onboard 5.1 channel sound, and 2 SATA ports. With those 2 ports, you can add multiple hard drives to the system through RAID 0 and RAID 1. This remarkable card has multiple expansion slots: one x16, and one x1 PCIe slots, plus an additional 2 PCI slots. Build a powerful system: the Asus M2V-TVM is a great foundation.
-
- 5
-
- 0%
- 4
-
- 17%
- 3
-
- 17%
- 2
-
- 0%
- 1
-
- 67%
| Product Rating: |

|
| Total Reviews: |
6 |
The worst board
- Pros: I think that the computer turned on is a pro.
- Cons: Like other prople have said slow
slow slow. The chip set is even worse even with the update it did not fix anything. Forget about playing games on it. Turned my 7600 gt into a sputtering fool.
- Other Thoughts: I have to say that I am glad that I did not by this product from newegg. I just wish that I heard about Newegg before my purchase. Safe Mode is F5
Cheap n' Works
- Pros: Inexpensive for an Asus board + AM2, fired up first try and works great.
- Cons: Very slow POST with HDD and DVD-ROM on same IDE channel - very sure HDD was master and DVD was slave. Problem fixed with a second IDE cable.
- Other Thoughts: No O/C ability, not important for this budget build for me, but FYI.
| Model | M2V-TVM |
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 / Sempron |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | VIA K8M890 |
-
- 5
-
- 0%
- 4
-
- 17%
- 3
-
- 17%
- 2
-
- 0%
- 1
-
- 67%
| Product Rating: |
|
| Total Reviews: |
6 |
The worst board
- Pros: I think that the computer turned on is a pro.
- Cons: Like other prople have said slow
slow slow. The chip set is even worse even with the update it did not fix anything. Forget about playing games on it. Turned my 7600 gt into a sputtering fool.
- Other Thoughts: I have to say that I am glad that I did not by this product from newegg. I just wish that I heard about Newegg before my purchase. Safe Mode is F5
YEAH! IT does!
- Pros: I spent over a grand for a re-do on my rig. AM2 X2 3.8, OCZ DDR2 800mhz, a FOXCONN 8800GTX. OK, now, to save a little on the board, I pick an ASUS! PROS? It lit.
- Cons: This is the worst mobo I've ever had & I've been building for 13 years!
It "DOES" support 800mhz dual channel, if you want your OCZ heat spreaders laying against each other when you juice it up!
Asus, this is a raw deal. What? I have to spend $200.00 to get the banks separated? Your done. never again!
- Other Thoughts: Please Yahweh, help me to find a buyer at auction!
put this on your do not buy list
- Pros: it was in one piece
- Cons: wow can i say that this motherboard sucks.
yeagh everything works. but the features are cheap cheap cheaply made. sluggish after being on for more than an hour. If you use one apllication for a while it will put all of its resources towards a specific application that is running. and getting out of that application is slow and time comsuming.
- Other Thoughts: this is quite possibly the worst motherboard i have ever worked with
| Model |
| Brand |
ASUS |
| Model |
M2V-TVM |
| Supported CPU |
| CPU Socket Type |
AM2 |
| CPU Type |
Athlon 64 X2 / Athlon 64 / Sempron |
| FSB |
1000MHz Hyper Transport (2000 MT/s) |
| Chipsets |
| North Bridge |
VIA K8M890 |
| South Bridge |
VIA VT8237R Plus |
| Memory |
| Number of Memory Slots |
2×240pin |
| Memory Standard |
DDR2 533 |
| Maximum Memory Supported |
2GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
1 |
| PCI Express x1 |
1 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
2 x ATA100 4 Dev. Max |
| SATA 1.5 Gb/s |
2 |
| SATA RAID |
0/1 |
| Onboard Video |
| Onboard Video Chipset |
VIA Chrome9 IGP |
| Onboard Audio |
| Audio Chipset |
Realtek ALC655 |
| Audio Channels |
6 Channels |
| Onboard LAN |
| LAN Chipset |
Realtek 8100C |
| Max LAN Speed |
10/100Mbps |

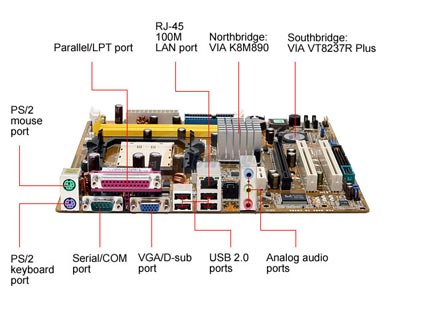

| Rear Panel Ports |
| PS/2 |
2 |
| COM |
1 |
| LPT |
1 |
| Video Ports |
D-Sub |
| USB 1.1/2.0 |
4 x USB 2.0 |
| Audio Ports |
3 Ports |
| Onboard USB |
| Onboard USB |
4 x USB 2.0 |
| Physical Spec |
| Form Factor |
Micro ATX |
| Dimensions |
9.6" x 8.6" |
| Power Pin |
24 Pin |
| Packaging |
| Package Contents |
M2V-TVM
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
Power Cable |
| Manufacturer Warranty |
| Parts |
3 years limited |
| Labor |
3 years limited |
Introduction
A simple and inexpensive motherboard for the enthusiast or the first time builder, the Asus M2V-TVM is a great starting point for anyone wanting to build a system or upgrade their motherboard. Designed with the small form factor case in mind, this motherboard will fit into most compact desktop systems. Equipped with an AMD socket AM2 suitable for Athlon 64 processors, including the X2 and FX series, the M2V-TVM is more than capable of handling anything you might think of.
Using the VIA K8M890 chipset with integrated graphics in conjunction with up to 2GB of DDR2 memory, the M2V-TVM is perfect for those that don’t need a discrete graphics card. You can even output to your home video system with connectivity to external home theater audio systems via a coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
It also includes a 10/100 Ethernet port, onboard 5.1 channel sound, and 2 SATA ports. With those 2 ports, you can add multiple hard drives to the system through RAID 0 and RAID 1. This remarkable card has multiple expansion slots: one x16, and one x1 PCIe slots, plus an additional 2 PCI slots. Build a powerful system: the Asus M2V-TVM is a great foundation.
Highlights
 |
AMD Socket AM2
This motherboard supports AMD’s Socket AM2-based CPUs, including the Athlon 64 X2, Athlon 64 and Sempron series. With a 2000MHz system bus using Hyper Transport Technology and support for dual-channel DDR2 RAM, AM2 motherboards form the basis for phenomenal system performance.
|
 |
VIA K8M890+VT8237R Plus Chipset
The VIA K8M890 incorporates the VIA Chrome9 IGP (integrated graphics processor) to deliver DirectX 9 graphics with hardware pixel shaders and extensive support for high definition video. Integrating support for the latest PCI Express graphics cards and high speed peripheral devices with the VT8237R Plus south bridge for HD audio, fast networking and advanced storage makes this AMD an amazing multimedia powerhouse.
|
 |
PCI Express x16 Graphics Interface
The latest PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.
|
 |
Serial ATA with RAID
The revolutionary Serial ATA interface provides scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. Two SATA ports support RAID 0 and 1 for better performance and enhanced data security.
|
 |
ASUS EZ Flash
With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required!
|
Quick Specs
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 / Sempron |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | VIA K8M890 |
| South Bridge | VIA VT8237R |
| Memory Standard | DDR2 533 |
| Onboard Video Chipset | S3 Chrome9 IGP |
| PCI Express x16 | 1 |
| SATA 1.5 Gb/s | 2 |
| Max LAN Speed | 10/100Mbps |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | Micro ATX |
|
Reviewed By: Broattie on 6/25/2007
Tech Level: somewhat high - Ownership: 1 month to 1 year
