Deactivated Item
-
-
-
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
- Manufacturer Limited Warranty period (parts): 1 year
- Manufacturer Limited Warranty period (labor): 1 year
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
A full featured motherboard with plenty of power, the Asus M2N4-SLI is great motherboard for anyone needing to replace or upgrade their system. Equipped with an AMD socket AM2, suitable for Athlon 64 processors, including the X2 and FX series, the M2N4-SLI is more than capable of handling anything you may want to run.
Using the Nvidia nForce 4 SLI chipset, this remarkable card supports SLI Technology which gives you the ability to use 2 graphics cards together for even more graphics power. With all this going on, things could heat up rapidly, but ASUS has really studied the issue of heat and cooling across the motherboard and CPU. Passive heat sinks and a strategic board layout will help you keep cool in the hottest action.
It also includes a gigabit Ethernet port, 5.1 channel onboard sound, and 4 SATA ports. Those four ports let you add multiple hard drives to the system, managed by RAID 0, 1, 0+1, 5, and JBOD. It also has multiple expansion slots to use, including two x16, and two x1 PCIe slots, plus an additional two PCI slots. Build a powerful system, the Asus M2N4-SLI is a foundation.
-
- 5
-
- 52%
- 4
-
- 23%
- 3
-
- 10%
- 2
-
- 7%
- 1
-
- 8%
| Product Rating: |

|
| Total Reviews: |
154 |
a very good budget board
- Pros: Seems like a rock solid board so far. Supports most of the stuff the more expensive boards do, such as DDR 800 and SLI. For a budget system, you get increbible performance, and the rock solid reliability you come to expect from ASUS.
- Cons: there are no cons to this board IMO
- Other Thoughts: If you don't have much money to spend, but you desperately want to go AM2, this is a board you really shouldnt pass up.
Rinky Dink BIOS
- Pros: None...this board is a dud.
- Cons: This board worked fine for about two months and then it developed a problem with spontaneous reboots. At first I thought it was a heat related problem or a problem with the power supply. It was neither. The problem with this board is that the BIOS causes the system to spontaneously reboot at random intervals.
- Other Thoughts: This board is junk. Don't buy it. And if ASUS tells you the problem is your power supply or your memory modules, don't believe them. They are either lying or they don't know about the problems with this board.
| Model | M2N4-SLI |
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA nForce 500 SLI MCP |
-
- 5
-
- 52%
- 4
-
- 23%
- 3
-
- 10%
- 2
-
- 7%
- 1
-
- 8%
| Product Rating: |
|
| Total Reviews: |
154 |
Ok board
- Pros: Very stable. I have had this board for a while and I have not noticed any problems with it.
- Cons: Cannot overclock very well, if your into that. The onbaord audio is useless and only 8x speed in SLI. But you get what you pay for
- Other Thoughts: I bought this board when I needed to upgrade and did not have alot of cash. This is still a good baord would buy again if I needed to.
It works.
- Pros: Nothing has gone wrong with this board. It simply works.
- Cons: You can't overclock at all with this board. The option to change voltages isn't available
- Other Thoughts: Don't get this board if you want to overclock. If you need a stable motherboard that works like its supposed to then get it.
good buy
- Pros: this mobo does everthing its supossed to had no issues yet
- Cons: none
- Other Thoughts: i havent tried ocing it has a 4600+ brisbane in it give past experience asus usually doesnt oc the best
| Model |
| Brand |
ASUS |
| Model |
M2N4-SLI |
| Supported CPU |
| CPU Socket Type |
AM2 |
| CPU Type |
Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron |
| FSB |
1000MHz Hyper Transport (2000 MT/s) |
| Chipsets |
| North Bridge |
NVIDIA nForce 500 SLI MCP |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 800 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
2 |
| PCI Express x1 |
2 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
2 x ATA100 4 Dev. Max |
| SATA 3Gb/s |
4 |
| SATA RAID |
NV RAID 0/1/0+1/5 JBOD |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC850 |
| Audio Channels |
6 Channels |
| Onboard LAN |
| Max LAN Speed |
10/100/1000Mbps |

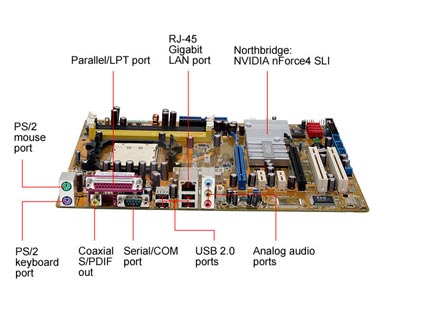

| Rear Panel Ports |
| PS/2 |
2 |
| COM |
1 |
| LPT |
1 |
| USB 1.1/2.0 |
4 x USB 2.0 |
| S/PDIF Out |
1 x Coaxial |
| Audio Ports |
3 Ports |
| Onboard USB |
| Onboard USB |
6 x USB 2.0 |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Power Pin |
24 Pin |
| Packaging |
| Package Contents |
M2N4-SLI
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Power Cable
ASUS Q-Connector Kit
SLI Bridge |
| Manufacturer Warranty |
| Parts |
1 year limited |
| Labor |
1 year limited |
Introduction
A full featured motherboard with plenty of power, the Asus M2N4-SLI is great motherboard for anyone needing to replace or upgrade their system. Equipped with an AMD socket AM2, suitable for Athlon 64 processors, including the X2 and FX series, the M2N4-SLI is more than capable of handling anything you may want to run.
Using the Nvidia nForce 4 SLI chipset, this remarkable card supports SLI Technology which gives you the ability to use 2 graphics cards together for even more graphics power. With all this going on, things could heat up rapidly, but ASUS has really studied the issue of heat and cooling across the motherboard and CPU. Passive heat sinks and a strategic board layout will help you keep cool in the hottest action.
It also includes a gigabit Ethernet port, 5.1 channel onboard sound, and 4 SATA ports. Those four ports let you add multiple hard drives to the system, managed by RAID 0, 1, 0+1, 5, and JBOD. It also has multiple expansion slots to use, including two x16, and two x1 PCIe slots, plus an additional two PCI slots. Build a powerful system, the Asus M2N4-SLI is a foundation.
Highlights
 |
AMD Socket AM2
This motherboard supports AMD's Socket AM2-based CPUs, including the Athlon 64 X2, Athlon 64 FX and Athlon 64 series. With a 2000MHz system bus using Hyper Transport Technology and support for dual-channel DDR2 RAM, AM2 motherboards form the basis for phenomenal system performance.
|
 |
NVIDIA nForce 500 SLI Chipset for Performance Gaming
NVIDIA nForce 500 SLI MCPs deliver outstanding gaming experiences. Enjoy scalable graphics performance with NVIDIA SLI technology. Other advanced features include SATA 3Gb/s RAID and Gigabit LAN.
|
 |
Dual-Channel DDR2 800
DDR2 next generation memory technology replaces current DDR memory and provides a walloping performance boost. With support for up to 800MHz DDR2 memory, the ASUS M2N4-SLI delivers fantastic performance in extreme 3D graphics environments and in memory intensive applications.
|
 |
SATA II with RAID Support
The second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. Four SATA II ports support RAID 0, 1, 0+1, 5 and JBOD array for better performance, enhanced data security, and flexible capacity upgrades.
|
 |
NVIDIA Native Gigabit Ethernet
The industry's fastest Gigabit Ethernet performance eliminates network bottlenecks and improves overall system efficiency with FirstPacket technology for lower latency and TCP/IP acceleration for system performance optimization by offloading CPU-intensive packet filtering tasks to hardware.
|
 |
Coaxial S/PDIF Out
This motherboard provides convenient connectivity to external home theater audio systems via a coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack, to transfer digital audio without converting to the analog format while keeping the best signal quality.
|
Quick Specs
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA nForce 500 SLI MCP |
| Memory Standard | DDR2 800 |
| PCI Express x16 | 2 |
| SATA 3Gb/s | 4 |
| PATA | 2 x ATA100 4 Dev. Max |
| Max LAN Speed | 10/100/1000Mbps |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | ATX |
|
Reviewed By: Man Beast on 8/10/2006
Tech Level: high - Ownership: 1 day to 1 week
