Deactivated Item
-
-
Similar Items
Not the product you're looking for? We can make some suggestions to help you decide on a product that fits your needs.
view similar products
-
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 77%
- 4
-
- 13%
- 3
-
- 3%
- 2
-
- 3%
- 1
-
- 4%
| Product Rating: |
|
| Total Reviews: |
289 |
First Asus
- Pros: Nice heat sinks on board, Bios has tons of great features, put it all together and it worked fine with no problems!
- Cons: Sata ports, hate it when they face the side and not face upward makes plugging things in a real pain in the but.
Only complaint....
- Other Thoughts: Great to use with a phenom II 940
AMAZING System Board
- Pros: Smooth install, tons of options, plenty of room to work. The power switch integrated onto the mobo is an awesome idea! Saves a ton of time when testing a system during the build. I have built two systems with this board, soon to be three, and I have had no issues whatsoever. Overclocking software is pretty cut & dry, and it works very well. Do not question the purchase of this mobo, you will not be disappointed!
- Cons: original drivers were a bit dated.
- Other Thoughts: grab latest drivers from asus usa.
Cool board, best out for AM2+
- Pros: Solid, no problems with overclocking. Very nice features in BIOS. Not prohibitive at all - or cryptic. Tons of options for Overclocking if you so desire. Also, handling 8 GB of DDR2 1066 (Corsair Dominator) without any instability issues.
- Cons: doesn't distill whiskey.
- Other Thoughts: System:
AMD PhenomII 940 3Ghz OC'd to 3.7Ghz
8GB Corsair Dominator DDR2 1066 OC'd to 1100
Asus M3A79-T Deluxe Motherboard
1 75 GB WD Raptor 10,000 RPM System Drive
2 1TB WD Data drives
CoolerMaster Cosmos 1000 Case
CoolerMaster V8 CPU Heatsink/Fan
6 Thermaltake 93CFM fans (one mounted on V8)
Sapphire Radeon 4870 1GB
Samsung 22" LCD - 2ms 2253LW

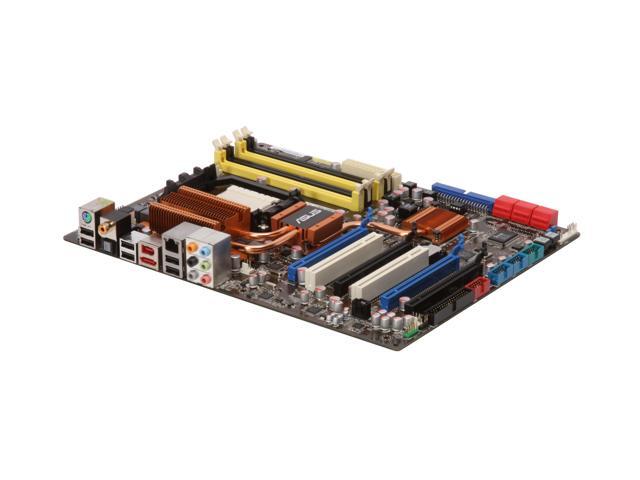

| Model |
| Brand |
ASUS |
| Model |
M3A79-T Deluxe |
| Supported CPU |
| CPU Socket Type |
AM2+/AM2 |
| CPU Type |
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| FSB |
2600MHz Hyper Transport (5200 MT/s) |
| Chipsets |
| North Bridge |
AMD 790FX |
| South Bridge |
AMD SB750 |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 1066 |
| Maximum Memory Supported |
16GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express 2.0 x16 |
4 x PCIe 2.0 x16 slots with ATI CrossFireX™ support (@ dual x16, triple x16 / x8 / x8, or quad x8 modes) |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
6 |
| SATA RAID |
0/1/5/10 |
| Onboard Audio |
| Audio Chipset |
ADI AD2000B |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Marvell 88E8056 |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
1 |
| USB 1.1/2.0 |
6 x USB 2.0 |
| IEEE 1394 |
1 x IEEE 1394a |
| eSATA |
1 x eSATA 3Gb/s |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
3 x USB connectors support additional 6 USB ports |
| Onboard 1394 |
| Onboard 1394 |
1x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Power Pin |
24 Pin |
| Features |
| Features |
140W CPU Support – Enhanced Power Design for future CPU upgrade!
100% Japan-made Solid Cap (5000hrs VRM) – Longer Life & Higher Efficiency!
ASUS Express Gate – 5 Secs from Bootup to Online!
ATI CrossfireX technology support – Quad-CrossFire Support for Extreme Performance |
| Packaging |
| Package Contents |
M3A79-T Deluxe
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
4-pin to SATA Power Cable
IEEE 1394 & USB Bracket
CrossFire Bridge |
|
|
5x Winner of Customer Choice Award - AMD Motherboards
Reviewed By: Darkside on 4/7/2009
Tech Level: average - Ownership: 1 day to 1 week
