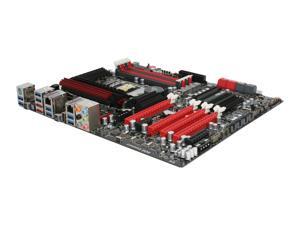

Main image of ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Intel P67 USB 3.0 Extended ATX Intel Motherboard

Alt view image 2 of 5 - ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Intel P67 USB 3.0 Extended ATX Intel Motherboard

Alt view image 3 of 5 - ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Intel P67 USB 3.0 Extended ATX Intel Motherboard

Alt view image 4 of 5 - ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Intel P67 USB 3.0 Extended ATX Intel Motherboard

Alt view image 5 of 5 - ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Intel P67 USB 3.0 Extended ATX Intel Motherboard

Shop All ASUS Products

ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Intel P67 USB 3.0 Extended ATX Intel Motherboard

Name: ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Extended ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813131700
Rating: 4 (150 reviews)

(150) Write a Review

Intel P67
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333 (Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (150)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.

CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4x240pin
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333 (Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.)
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	4 x PCIe 2.0 x16 (single @x16, dual @x8, triple @x8, x16, x16 )
PCI Express x4	1 x PCI Express x4
PCI Express x1	1 x PCI Express x1

Serial ATA (SATA)	2 xSATA 6.0 Gb/s ports (Red) by P67 2 xSATA 6.0 Gb/s ports (Red) by Marvell 9182
SATA RAID	2 x SATA 6.0 Gb/s ports (Red) and 4 x SATA 3Gb/s ports (Gray) support RAID 0,1,5,10

Audio Chipset	Realtek ALC889
Audio Channels	8 Channels

ASUS MAXIMUS IV EXTREME (REV 3.0) LGA 1155 Intel P67 USB 3.0 Extended ATX Intel Motherboard

Learn more about the ASUS MAXIMUS IV EXTREME (REV 3.0)

Customer Reviews of the ASUS MAXIMUS IV EXTREME (REV 3.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x Optical S/PDIF Out / 1 x PS/2 / 1 x USB 2.0/1.1 / 2 x eSATA 3GB/S / 8 x USB 3.0
PS/2	1
USB 3.0	8 x USB 3.0
USB 1.1/2.0	1 x USB 2.0/1.1 (also for ROG Connect)
eSATA	2 x eSATA 3Gb/s
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Onboard USB	2 x USB 3.0 + 8 x USB 2.0
Other Connectors	1 x 8-pin ATX 12V Power connector 1 x Power-on switch 1 x Reset switch 1 x Front panel audio connector 1 x System Panel connector 1x CPU Fan connector 3 x Chassis Fan connector 1 x Power Fan connector 3 x Optional Fan connector 1 x S/PDIF Out connector 1 x 24-pin ATX Power connector 7 x ProbeIt measurement points 3 x Thermal sensor connectors 1 x En/Dis-able Clr CMOS header 2 x EZ Plug connectors (4-pin Molex Power connectors) 1 x RC Bluetooth header 1 x LN2 Mode switch 1 x Q_Reset switch 1 x Go Button 1 x BIOS switch button 1 x ROG light connector

Form Factor	Extended ATX
Dimensions (W x L)	12" x 10.6"
Power Pin	24 Pin

Onboard LAN
Max LAN Speed	2 x 1Gbps
Bluetooth	Bluetooth V2.0/V2.1+EDR
