Model

Brand

ASUS

Model

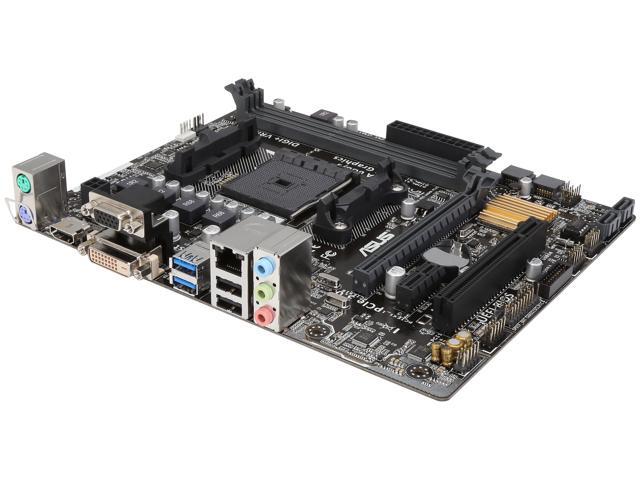

A68HM-Plus

Supported CPU

CPU Socket Type

FM2+

CPU Type

Athlon/A- Series (FM2+)

Chipsets

Chipset

AMD A68H FCH (Bolton D2H)

Memory

Number of Memory Slots

2×240pin

Memory Standard

DDR3 2400(O.C.)/2133/1866/1600/1333

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCIe 3.0/2.0 x16 *2
*2: Only FM2+ Processors can support PCIe3.0.

PCI Express x1

1 x PCIe 2.0 x1

PCI Slots

1 x PCI Slot

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s port(s), gray

SATA RAID

0/1/10/JBOD

Onboard Audio

Audio Chipset

Realtek ALC887-VD

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8111GR

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)

Video Ports

1 x DVI
1 x D-Sub

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.0

2 x USB 3.0

USB 1.1/2.0

2 x USB 2.0

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 4 x USB 2.0

Other Connectors

1 x TPM connector(s)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

8.9" x 7.2"

Power Pin

24 Pin

Features

Features

FM2+ Socketed motherboard features enduring 5X Protection, high-clarity audio and the new UEFI BIOS on the A68H Chipset

- Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours
- Audio Features - Audio that roars on the battlefield
- New UEFI BIOS - The Smoothest and Slickest Mouse-controlled Graphical BIOS
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0

Special Features

ASUS 5X Protection:
- ASUS DIGI+ VRM - 3 + 2 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating

ASUS EPU:
- EPU

ASUS Exclusive Features:
- AI Suite 3
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker

ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert

ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Push Notice

ASUS Q-Design:
- ASUS Q-Slot

Packaging

Package Contents

Accessories

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
