Model

Brand

ASUS

Model

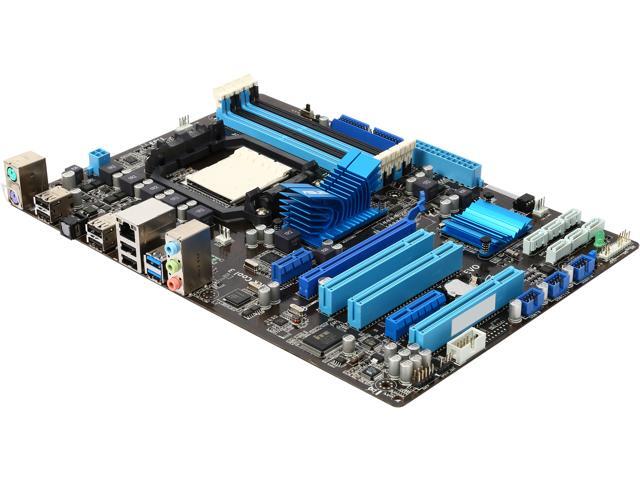

M4A87TD/USB3-R

Supported CPU

CPU Socket Type

AM3

CPU Type

Phenom II / Athlon II / Sempron 100 Series

FSB

5.2 GT/s HyperTransport 3.0

Chipsets

Chipset

AMD 870

South Bridge

AMD SB850

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2000(O.C.)/ 1600/ 1333/ 1066

Maximum Memory Supported

16GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 2.0 x16

1 x PCI Express 2.0 x16

PCI Express x4

1 x PCIe 2.0 x4

PCI Express x1

1 x PCIe 2.0 x1

PCI Slots

3 x PCI Slots

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s port(s), white

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

VIA VT1818

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek 8111E

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)

RJ45

1 x LAN (RJ45) port(s)

USB 3.0

2 x USB 3.0

USB 1.1/2.0

6 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

Other Connectors

1 x IDE connector(s)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s) (3 -pin)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Core Unlocker switch(es)
1 x Clear CMOS jumper(s)

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12" x 8.4"

Power Pin

24 Pin

Features

Features

Unlock the AMD CPU's Potential, Turbo-Charge Your Performance!

AMD AM3 CPU Support
AMD 870 + SB850 Chipset
Turbo Unlocker - On Demand Real Time CPU Boost
Core Unlocker - Intelligently Unlocks True Core Performance
TurboV EVO - The Ultimate O.C. Processor
USB 3.0 Support

OG Exclusive Features

Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS Xtreme Design:
ASUS Hybrid Processor - TurboV EVO:
- Turbo Unlocker
- TurboV
- CPU Level Up
ASUS EPU:
- EPU
ASUS Hybrid Switch:
- Core Unlocker
- Turbo Key
ASUS Exclusive Features:
- MemOK!
- Express Gate
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS

BIOS:
8 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability:
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

Support Disc:
Drivers
Anti-virus software (OEM version)
ASUS Utilities
ASUS Update
