Model

Brand

ASUS

Model

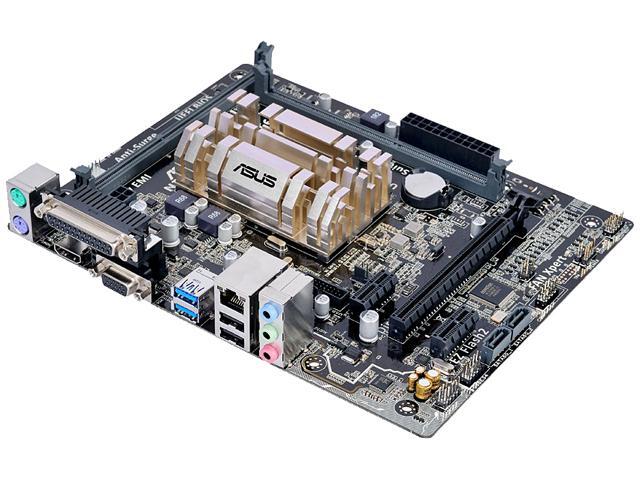

N3050M-E

Combo Type

Motherboard/CPU/VGA Combo

Bundle

CPU

Intel Celeron Dual-Core N3050 SoC onboard Processors

Memory

Number of Memory Slots

2×240pin

Memory Standard

DDR3 1600/1066

Maximum Memory Supported

8GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express x16

1 x PCIe 2.0 x16 (x1 mode)

PCI Express x1

2 x PCIe 2.0 x1

Storage Devices

SATA

2 x SATA 6Gb/s port(s), dark brown,
Supports Intel Smart Connect Technology

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor
Multi-VGA output support: HDMI/RGB ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB

Onboard Audio

Audio Chipset

Realtek ALC887-VD2

Audio Channels

8 Channels

Onboard LAN

LAN Chipset

Realtek RTL8111H

LAN Speed

10/100/1000Mbps

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)

Video Ports

1 x D-Sub

HDMI

1 x HDMI

USB 1.1/2.0

2 x USB 2.0

USB 3.0

2 x USB 3.0 (blue)

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

Other Connectors

1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

Features

Features

Low-power, fanless motherboard for Intel Celeron SoC N3050 processors, with 5X Protection and HDMI/D-Sub support

Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.
USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
AI Suite 3: One-stop access to innovative ASUS features
Fan Xpert: Dedicated CPU and case fan controls
New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added

Special Features
ASUS 5X Protection:
- ASUS LANGuard - Advanced LAN protection
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS Exclusive Features:
- AI Suite 3
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM

Operating System Support:
Windows 8.1 , 64bit

BIOS:
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

8.9" x 7.0"

Package Contents

Package Contents

Accessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
