Item#: N82E16813135046

ECS 945GZT-M V1.0 LGA 775 Intel 945GZ Micro ATX Intel Motherboard

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel 945GZ
  • Core 2 Duo / Pentium D / Celeron D
  • DDR2 533

LOADING... LOADING...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the ECS (EliteGroup) 945GZT-M V1.0

Model

|
Brand
ECS
Model
945GZT-M V1.0

Supported CPU

|
CPU Socket Type
LGA 775
CPU Type
Core 2 Duo / Pentium D / Celeron D
FSB
800/533 MHz
Supported CPU Technologies
Hyper-Threading Technology

Chipsets

|
Chipset
Intel 945GZ
South Bridge
Intel ICH7

Onboard Video

|
Onboard Video Chipset
Intel GMA 950

Memory

|
Number of Memory Slots
2×240pin
Memory Standard
DDR2 533
Maximum Memory Supported
2GB
Channel Supported
Dual Channel

Expansion Slots

|
PCI Express x16
1 x PCI Express x16 (signals at x4)
PCI Slots
2 x PCI Slots

Storage Devices

|
PATA
1 x ATA100 2 Dev. Max
SATA 3Gb/s
4 x SATA 3Gb/s

Onboard Audio

|
Audio Chipset
Realtek ALC883
Audio Channels
6 Channels

Onboard LAN

|
LAN Chipset
Realtek 8100C
Second LAN Chipset
Intel
Max LAN Speed
10/100Mbps

Rear Panel Ports

|
PS/2
2
COM
1
Video Ports
D-Sub
USB 1.1/2.0
4 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors

|
Onboard USB
2 x USB 2.0 connectors support 4 ports

Physical Spec

|
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 8.6"
Windows Vista
Certified for Windows Vista
Power Pin
24 Pin

Packaging

|

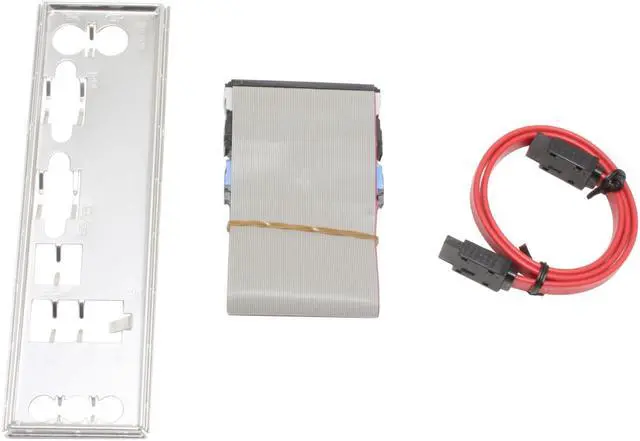

Package Contents
945GZT-M V1.0
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
