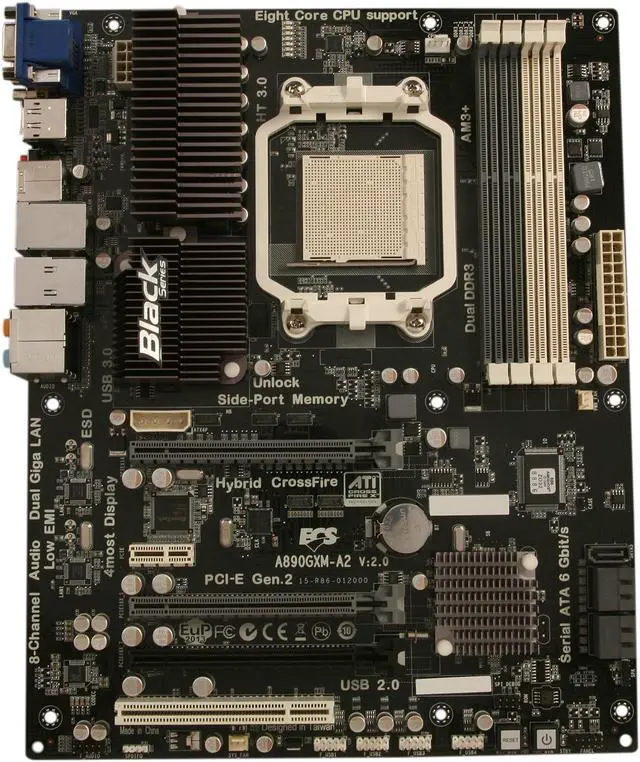

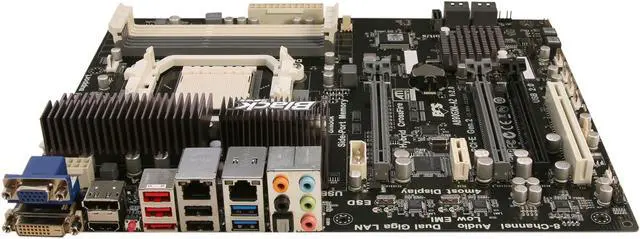

ECS A890GXM-A2(2.0) AM3+ AMD 890GX USB 3.0 HDMI ATX AMD Motherboard
- AMD 890GX
- FX / Phenom II / Athlon II / Sempron 100 Series
- DDR3 1866(OC) / 1800(OC) / 1600(OC) / 1333 / 1066
Specs
Reviews (18)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) A890GXM-A2(2.0)
| Brand | ECS |
|---|---|
| Model | A890GXM-A2(2.0) |
| CPU Socket Type | AM3+ |
|---|---|
| CPU Type | FX / Phenom II / Athlon II / Sempron 100 Series |
| Chipset | AMD 890GX |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1866(OC) / 1800(OC) / 1600(OC) / 1333 / 1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 3 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 5 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | ATI Radeon HD 4290 |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Second LAN Chipset | Realtek 8111DL |
| Max LAN Speed | 2 x 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DisplayPort / 1 x DVI / 1 x HDMI / 2 x USB 3.0 / 4 x USB 2.0/1.1 / 5 x Audio Jacks |
|---|---|
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply connector 1 x 8-pin ATX 12V Power Connector 1 x 4-pin power connector for VGA card 1 x 4pin CPU_FAN connectors 1 x 3-pin PWR_FAN connector 1 x Power on button 1 x Reset button 1 x Speaker header 1 x Front panel audio header 1 x SPDIF out header 1 x Chassis intrusion header |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | 15u Gold Contact - 3 Times Extra Protection Support HD Video Playback ATI CrossFireX Technology Ready Support for ATI Hybrid Graphics Technology Applied Solid Capacitor Speedy Storage Interface - SATA 6G Motherboard Intelligent BIOS III (M.I.B III) |
|---|
| First Listed on Newegg | May 24, 2012 |
|---|
