the DFI Infinity NF UltraII-M2 is a full featured motherboard with plenty of "oomph", great for anyone needing to upgrade or replace their system. Equipped with an AMD socket AM2, suitable for Athlon 64 processors, including the X2 and FX series, it can manage anything you have room for! Using the Nvidia nForce 4 Ultra chipset, it can hold up to 4GB of DDR2 memory to give you powerful support for memory intensive applications. It also includes a gigabit Ethernet port, 7.1 channel onboard sound, and 4 SATA ports.
You can use these ports for a variety of storage solutions, because this great board supports RAID 0, 1, 0+1, and JBOD. The Infinity NF UltraII-M2 has multiple expansion slots to use including two x16, and one x1 PCIe slots, plus an additional three PCI slots. Go ahead: build the system you want, you're getting a great, solid foundation.
-
- 5
-
- 50%
- 4
-
- 27%
- 3
-
- 11%
- 2
-
- 8%
- 1
-
- 4%
| Product Rating: |

|
| Total Reviews: |
92 |
No POST? Call DFI
- Pros: Lots of features for inexpensive board - coax+optical digital audio, firewire, RAID,
- Cons: Older BOIS incompatible with Brisbane CPU - really a fault of Newegg for shipping "stale" boards
- Other Thoughts: Thanks to the other reviewers, I knew to call DFI (510-274-8000 Ext.117) and have them send me the current BIOS on a chip. Newegg was clueless as to how to exchange for a more recently manufactured board and just wanted to RMA the whole MB/CPU combo. Hard to believe they "have no way to contact" the warehouse. More likely just lazy...
Great board, great service
- Pros: Great features on this board. Excellant customer service at DFI. No hold time on the phone and immediate solution. I haven't actually been able to post the board yet, so I will leave it for now.
- Cons: Purchased the combo with Athlon 64X2 4000+. The problem was that the proc in the combo is a 65nm and the only way the board will recognize it is with the 02/07 bios update. Good luck flashing the bios when the board won't boot. Called DFI and they are sending me a new bios chip free of charge(this should be in the "pros" section).
- Other Thoughts: I am still thinking I will have a solid board. I just wonder if some of the "DOA" reviews are not due to this problem. Beware and research before buying a combo deal because these are not tested to play nice together. Newegg rocks though and I will buy here again and again.
| Model | UltraII-M2 |
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA nForce4 Ultra |
-
- 5
-
- 50%
- 4
-
- 27%
- 3
-
- 11%
- 2
-
- 8%
- 1
-
- 4%
| Product Rating: |
|
| Total Reviews: |
92 |
Good Board
- Pros: Easy setup, simple design, performs as advertised.
- Cons: None
- Other Thoughts: For a workstation PC, this board works great.
Great
- Pros: LOW COST-EASTO INSTALL
- Cons: NONE
- Other Thoughts: FOR A LOW COST MB I CAN'T COMPLAIN. NO PROBLEMS YET
Great Board
- Pros: Great Board at a great price with many features.
- Cons: Audio needs some work. I could not get the sound quality I wanted so I use a sound card.
- Other Thoughts: I'm writing this review now as I am purchaseing another board as a replacement for my backup PC. I've owned this board over a year now and have had no issues as it's stable and overclocks well.
| Model |
| Brand |
DFI |
| Model |
INFINITY NF ULTRAII-M2 |
| Supported CPU |
| CPU Socket Type |
AM2 |
| CPU Type |
Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB |
1000MHz Hyper Transport (2000 MT/s) |
| Chipsets |
| North Bridge |
NVIDIA nForce4 Ultra |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 533 and DDR2 667 DIMMs |
| Maximum Memory Supported |
4GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
2 |
| PCI Express x1 |
1 |
| PCI Slots |
3 |
| Storage Devices |
| PATA |
2 x ATA100 4 Dev. Max |
| PATA RAID |
NV RAID 0/1/0+1 JBOD |
| SATA 3Gb/s |
4 |
| SATA RAID |
NV RAID 0/1/0+1 JBOD |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC850 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Marvell 88E1115 |
| Max LAN Speed |
10/100/1000Mbps |

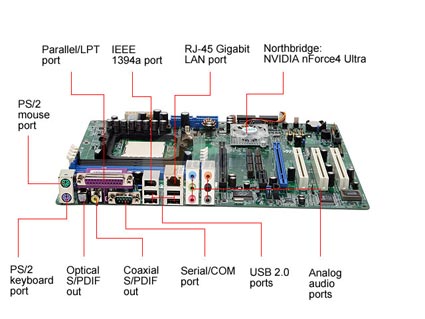

| Rear Panel Ports |
| PS/2 |
2 |
| COM |
1 |
| LPT |
1 |
| USB 1.1/2.0 |
4 x USB 2.0 |
| IEEE 1394 |
1 x IEEE 1394a |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
6 x USB 2.0 |
| Onboard 1394 |
| Onboard 1394 |
1x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Power Pin |
24 Pin |
| Packaging |
| Package Contents |
INFINITY NF ULTRAII-M2
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Power Cable
Floppy Drive Diskette |
| Manufacturer Warranty |
| Parts |
1 year limited |
Introduction
the DFI Infinity NF UltraII-M2 is a full featured motherboard with plenty of "oomph", great for anyone needing to upgrade or replace their system. Equipped with an AMD socket AM2, suitable for Athlon 64 processors, including the X2 and FX series, it can manage anything you have room for! Using the Nvidia nForce 4 Ultra chipset, it can hold up to 4GB of DDR2 memory to give you powerful support for memory intensive applications. It also includes a gigabit Ethernet port, 7.1 channel onboard sound, and 4 SATA ports.
You can use these ports for a variety of storage solutions, because this great board supports RAID 0, 1, 0+1, and JBOD. The Infinity NF UltraII-M2 has multiple expansion slots to use including two x16, and one x1 PCIe slots, plus an additional three PCI slots. Go ahead: build the system you want, you're getting a great, solid foundation.
Highlights
 |
AMD Socket AM2
This motherboard supports AMD's Socket AM2-based CPUs, including the Athlon 64 X2, Athlon 64 FX and Athlon 64 series. With a 2000MHz system bus using Hyper Transport Technology and support for dual-channel DDR2 RAM, AM2 motherboards form the basis for phenomenal system performance.
|
 |
NVIDIA nForce4 Ultra Chipset
The NVIDIA nForce4 Ultra media and communications processor (MCP) delivers unbelievable PC performance with PCI Express graphics support and cutting-edge features including SATA II with RAID support and NVIDIA Gigabit Ethernet. Designed with an innovative low-latency, highly-integrated architecture, NVIDIA nForce4 Ultra MCPs reside on your motherboard and offer a world-class feature set for overall PC performance.
|
 |
Gigabit Ethernet Connectivity
The DFI INFINITY NF ULTRAII-M2 features a fast Gigabit network interface for high-speed LAN connections at up to 1000Mb/s data transfer rates. Gigabit LAN is ideal for supercharged seamless streaming of Internet audio and video content.
|
 |
SATA II with RAID Support
The second generation SATA interface delivers up to 300MB/sec transfer speed, doubling that of the first generation Serial ATA. Four SATA II ports support RAID 0, 1, 0+1 and JBOD array for better performance, enhanced data security, and flexible capacity upgrades.
|
 |
S/PDIF In/Out Interface
S/PDIF allows connections to today's hottest digital audio devices without signal loss. Connect S/PDIF out to an AC-3 decoder for full-on theater quality digital sound.
|
 |
IEEE 1394a Support
IEEE 1394 is a widely used standard of interface between personal computers and digital AV equipment. With IEEE 1394a you can easily connect digital devices such as a digital camcorder to the IEEE 1394a port provided on this motherboard for up to 400Mbps data transfer speeds.
|
Quick Specs
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA nForce4 Ultra |
| Memory Standard | DDR2 667 |
| PCI Express x16 | 2 |
| SATA 3Gb/s | 4 |
| PATA | 2 x ATA100 4 Dev. Max |
| Max LAN Speed | 10/100/1000Mbps |
| IEEE 1394 | 1 x IEEE 1394a |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | ATX |
|
Reviewed By: on 5/2/2007
Tech Level: somewhat high - Ownership: 1 week to 1 month
