Item#: N82E16813136039

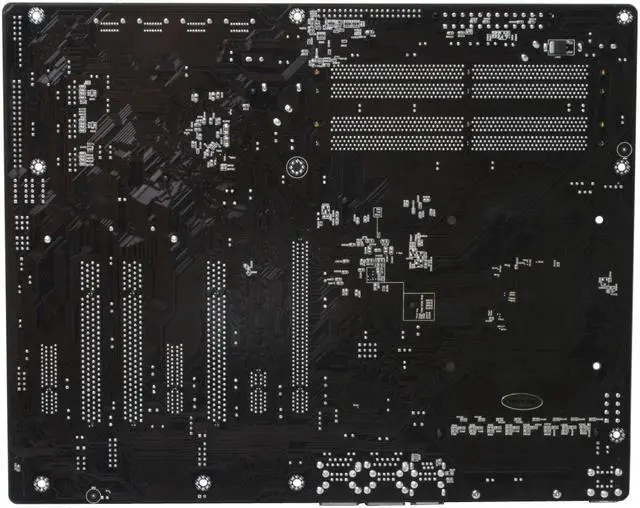

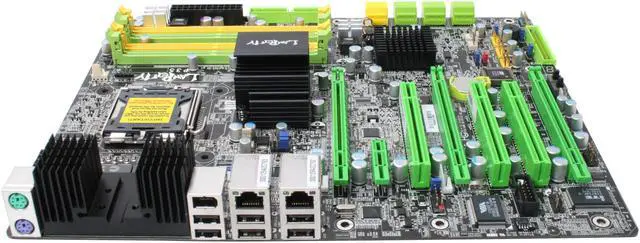

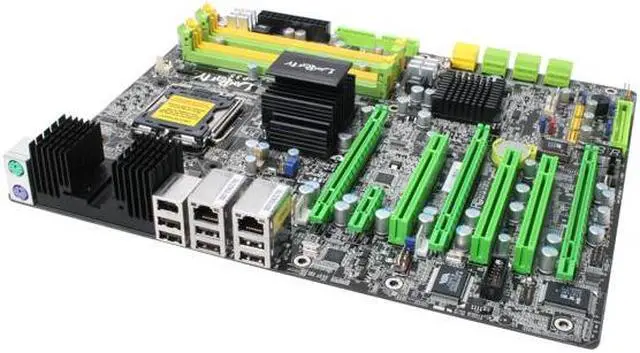

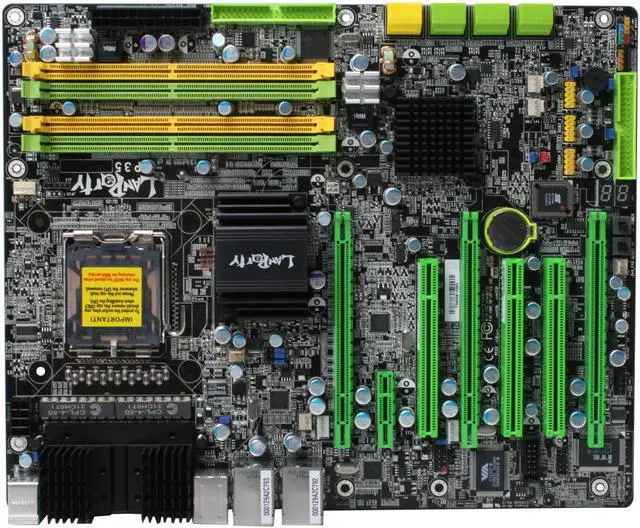

DFI LP LT P35 T2R LGA 775 Intel P35 ATX Intel Motherboard

  • Intel P35
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 800
ICON Loading...

Learn more about the DFI LP LT P35 T2R

Model

Brand
DFI
Model
LP LT P35 T2R

Supported CPU

CPU Socket Type
LGA 775
CPU Type
Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB
1333/1066MHz

Chipsets

Chipset
Intel P35
South Bridge
Intel ICH9R

Memory

Number of Memory Slots
4×240pin
Memory Standard
DDR2 800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel

Expansion Slots

PCI Express x16
3 x PCI Express x16 slots (PCIE1 at x16, PCIE3 at x4 or x1 and PCIE4 at x1)
PCI Express x1
1
PCI Slots
3

Storage Devices

PATA
1 x ATA100 2 Dev. Max
SATA 3Gb/s
8
SATA RAID
0/1/0+1/5

Onboard Video

Onboard Video Chipset
None

Onboard Audio

Audio Chipset
Realtek ALC885
Audio Channels
8 Channels

Onboard LAN

LAN Chipset
Marvell 88E8052
Second LAN Chipset
Marvell 88E8053
Max LAN Speed
Dual 10/100/1000Mbps

Rear Panel Ports

PS/2
2
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
Audio Ports
6 Ports

Internal I/O Connectors

Onboard USB
6 x USB 2.0
Onboard 1394
1 x 1394a

Physical Spec

Form Factor
ATX
Dimensions
12.0" x 9.6"
Power Pin
24 Pin

Manufacturer Warranty

Labor
LP LT P35 T2R
Driver Disk
User Manual

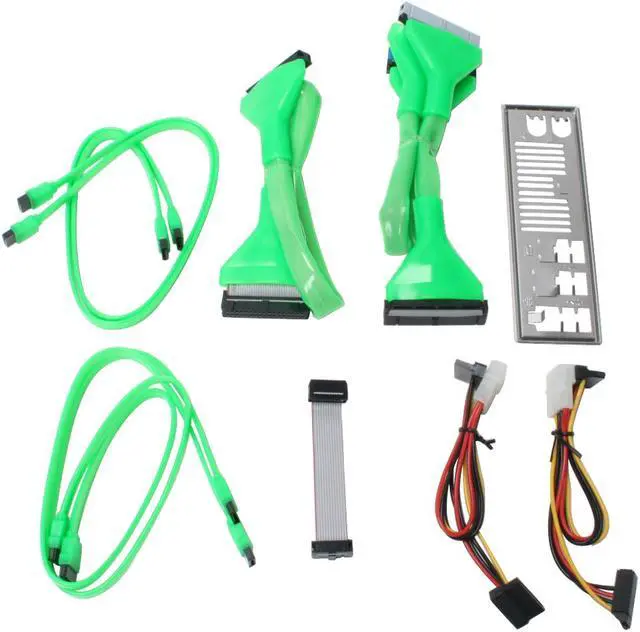

Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
CrossFire Bridge
Floppy Drive Diskette

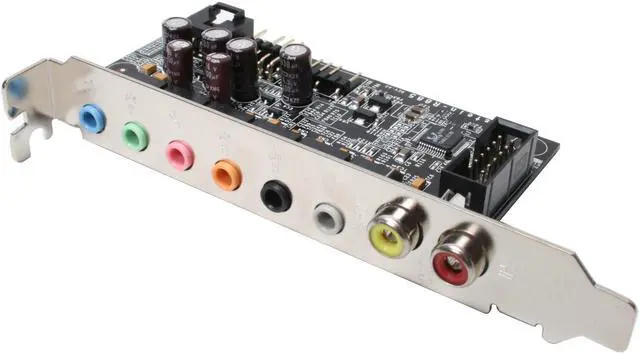

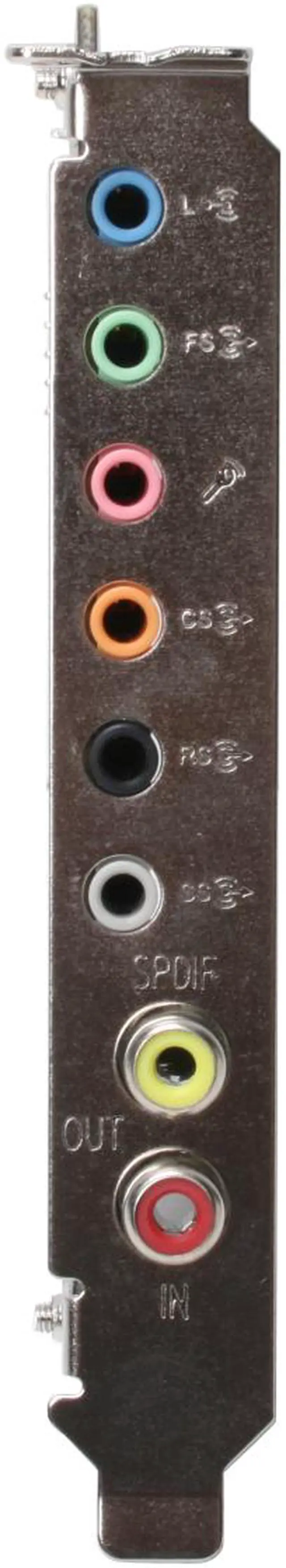

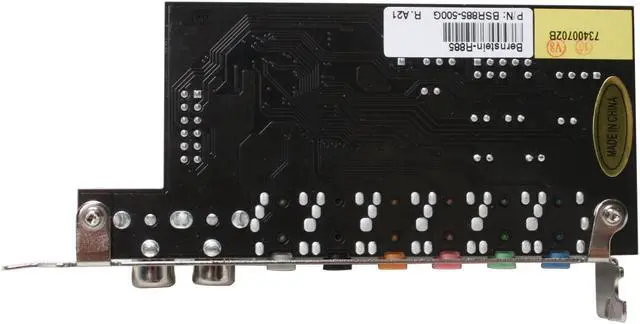

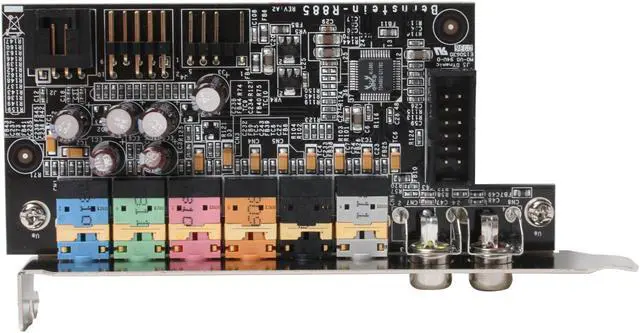

Bernstein Audio Module

Quick Info


Customer Reviews of the DFI LP LT P35 T2R

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 1/8/2009 6:43:47 PM
  • Tech Level: High
  • Ownership: more than 1 year

1 out of 5 eggsThis mobo is all talk

Pros: Aside from the competition, not much.

1) If anything, the bios offers a lot of tweaks.

Cons: 1) Not compatible with Enermax power supplies. Yet this should be a given since what LANPARTY board is compadible with Enermax power supplies? How about none.

2) Very picky with ram.

3) 8 SATA ports, 2 dedicated to RAID. The problem, utilize all of the SATA ports and it will overwhelm the lanes, causing corruption. This happened on both the original and RMA motherboard I received, across multiple hard drives, both new and old.

If you are only using 5 of the 6 SATA ports (non RAID) you should be fine. Use all 6 and you may experience problems.

4) Not compatible with speed fan and other overclocking tools. Running this program will cause the system to crash.

Other Thoughts: I went with a DFI board to see what all the buzz was. Unfortunately with all of the advanced bios settings, it failed to get me a higher clock speed than my old ASUS or Abit board.

Next time I will save my cash and go with a Gigabyte or ASUS board with hopefully fewer issues.

0 out of 1 people found this review helpful. Did you? Yes No

  • Ye Y.
  • 11/23/2008 3:47:34 PM
  • Tech Level: Somewhat Low
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggs

Pros: Stable and smooth.

Cons: The instruction bulletin is not very instructable.

Did you find this review helpful? Yes No

  • Peter P.
  • 10/7/2008 12:18:38 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month

1 out of 5 eggsdisappointing at best, stay away!

Pros: I am rather disappointed in this board, difficult for me to find any Pros about it at this time. I suppose if you run a single gfx card and have no other PCIe cards, this is a fine board.

Cons: PCIe configuration! One word: Horrible! Another word: Misleading!
So, PCIe1 is locked at 16x, which is good.
Now comes the hammer, PCIe2/3/4 run either all at 1x!!!
OR, you can set PCIe2 to run at 4x, BUT then PCIe2 AND PCIe3 do not work at all, AND LAN2 doesn't work either.

The manual doesn't tell you that, neither does Newegg (obviously not their job). ONLY if you download the additional explanation on BIOS settings from DFI you will find the PCIe configuration issues explained on the bottom of page 3.

See for yourself: http://us.dfi.com.tw/Upload/BIOS/UTLTP35.pdf

Other Thoughts: Save yourself from a lot of hassle, and spend your cash on a different brand board, preferably from a manufacturer who doesn't trick you into thinking that what you get is one PCIe 16x, one PCIe 4x, and two PCIe 1x.

9 out of 12 people found this review helpful. Did you? Yes No

  • Garryn C.
  • 9/30/2008 6:26:17 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsSo far, So Good

Pros: For the money, This is a rather awesome mobo, BIOS very friendly to work with. and very OC'ing friendly aswell.

Cons: Crossfire ready, But not SLI ready, I also have heard that they are having problems with certain ATI cards. cant remember any details but hopefully those are either fabrications or have been fixed, because this is a crossfire ready board.

Other Thoughts: Make sure your not trying to go for SLI! works great with single Nvidia cards though. I dont know if I want to use crossfire or just go with 260GTX. but for now runs my 8800GT
just fine.

Did you find this review helpful? Yes No

  • Anonymous
  • 9/21/2008 7:01:59 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsNice nice nice!!!

Pros: easy fast install, started up on the first try. Huge intallation book easy reading. Intalled Vista 64bit with NO problem. DFI once ahain prove that they know how to make good Mother Boards.
Easy start with 2 buitton for start and reset. Digital readout with info in book.

Cons: SATA like to have them strait up instead of to the side. My case is reversed. A Lian-Li.

Other Thoughts: Vista 64, 6 Hard drive total 2.7TB, 2 DVD-RW HP4 GB of 800MHz DDR2, Intel Q6600, XFX 8800GT Alpha Dog.
Vista Experiance 5.8.

Did you find this review helpful? Yes No

  • Cari M.
  • 9/18/2008 8:33:08 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsDFI LanParty LT P35T2R

Pros: Easy to work with, great instruction manual, very detailed BIOS pages. So good I've just ordered a second one for my husband's PC.

Cons: Doesn't see 8gb of my Corsair XMS2 - would not POST at all... but runs more than happily on 4gb. The other 4gb can go in hubby's LT when it arrives.

Other Thoughts: Needs no BIOS update to see Q9400. CD contains all the drivers needed for Vista Ultimate 64 bit.

Did you find this review helpful? Yes No

  • Anonymous
  • 9/8/2008 9:14:13 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsTop Notch P35 Board

Pros: This is one of a few boards that can handle +4Ghz quads very well do to excellent dual 4-phases (8-phases effective) digital PWM capable of providing +200A to the CPU on demand. The layout of the mobo is great. Good northbridge and PWM cooling. Board comes with integrated heatsink on the memory and nortbridge phases effectively cooling the MOS-FETs giving in return very stable clocks. Easy DDR1200, handles 4GB of memory very well. Very good BIOS capable of calculating memory delays and skews by itself. This was very first board to including fine tuning options such as GTL Ref. voltages for maximum quad overclock/stability. It was also very first to include pull-in phases, e.g you run the board under performance level of 5 but stability of 6, brilliant! If you're looking to run a quad, this board should your best bet. x38 / x48 / P45 don't go near the capability of P35 with quads. I have done 485FSB Prime95 / Linpack stable with good Q6600 quad. I have done 600FSB w\ E8600.

Cons: Avoid Enermax PSUs, OCZ / Corsair / PCP&C recommended. If you're not an enthusiast go with other brands as this board will provide you with so much tweaks that you will take no use of. Simple hackery required when overclocking, but can be mastered in no time.

Did you find this review helpful? Yes No

  • William L.
  • 8/1/2008 7:33:41 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week

5 out of 5 eggsGood board

Pros: Its DFI. Theyre high quality, even though their customer service doesnt match. Love the color layout, love the debug LED's and that if you press the power and reset at the same time you can reset the CMOS.

Cons: Only ting i dont really like is that the video card slot is realy close to the ram, and you cant remove your ram without taking out your card. My other issue is taht when i need to reset the cmos the board doesnt like to come back up right away and i hve to clear it a few more times. Thats my fault though since i bought it open box for 60$ off...shouldnt be a problem if you buy it new. This isnt a problem for me since this is my secondary PC.

Other Thoughts: DFI P35, E7200 (4ghz coming soon), 2GB A-Data Vitesta Extreme Edition DDR2 800 4-4-4-12, 7900GS, Thermaltake 500w power supply. 120gb HDD. OCZ vendetta keepin 'er cool.

0 out of 2 people found this review helpful. Did you? Yes No

  • Daniel G.
  • 7/5/2008 4:14:57 AM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsPleased with my purchase

Pros: Numerous bios options . Good layout . My bios was from Dec 07 so my E8400 worked right out of the box . nice accesories package . Radical color

Cons: None so far .

Other Thoughts: DFI LT P35 T2R , E8400 , Corsair XMS2 ( 2GB) , BFG 8800GTS(G92) , Coolmax 700W , 12,400 3DMARK06 at stock

1 out of 1 people found this review helpful. Did you? Yes No

  • Garrett E.
  • 6/27/2008 10:16:32 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggshappy so far

Pros: Runs very stably with my Quad Core Q6700. Lots of room to grow with this board, plenty of slots; all solid state caps make for good reliability. You can really tweak settings in the BIOS if you want to; Other than that, it senses all the right voltages for my OCZ memory. I know to put this as a pro because some people with NVidia boards have put that as a con (one of the main reasons i got a P35 board). Board works as Advertised.

Cons: Watch out for the SATA connectors if you have a Antec 900 case (I do). Other than that, the other cables you have to route should be ok.

Other Thoughts: Didn't try the audio module (have creative X-Fi). Didn't overclock it yet, don't intend to everything is working great. Haven't contacted their support or encountered any issues with it. These are all things I can't comment on. Not running any Multi-GPU setup.

3 out of 3 people found this review helpful. Did you? Yes No
