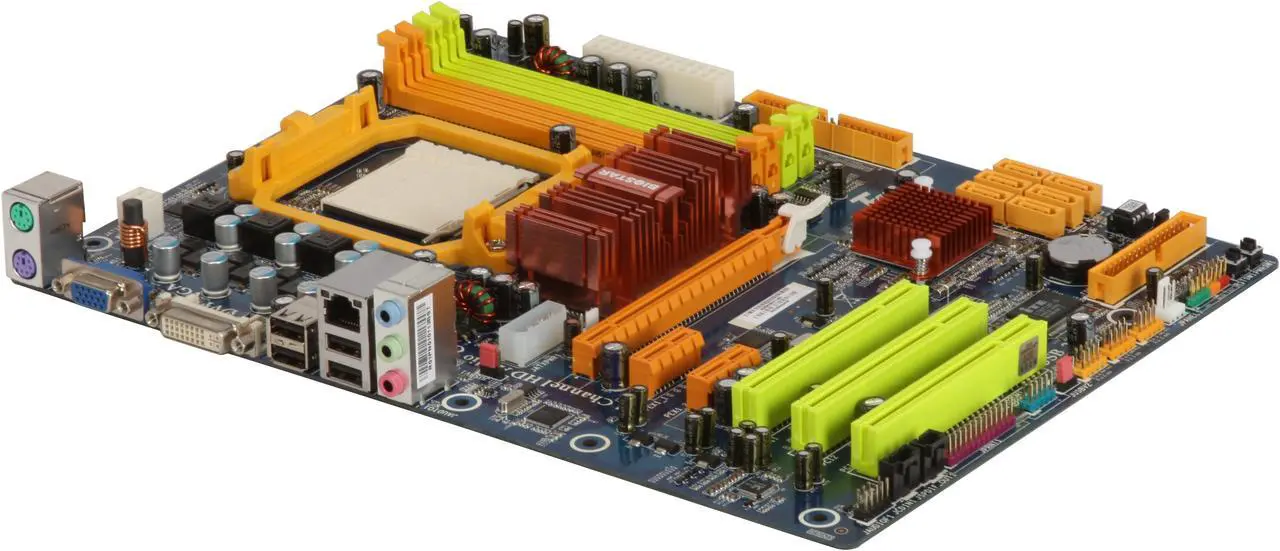

BIOSTAR TA790GXB A2+ AM2+/AM2 AMD 790GX ATX AMD Motherboard
- AMD 790GX
- Phenom X4 / Phenom X3 / Athlon 64 / Sempron
- DDR2 1066
Specs
Reviews (137)
Learn more about the Biostar TA790GXB A2+
| Brand | BIOSTAR |
|---|---|
| Model | TA790GXB A2+ |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom X4 / Phenom X3 / Athlon 64 / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 790GX |
|---|---|
| South Bridge | AMD SB750 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express 2.0 x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | ATI Radeon HD 3300 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |

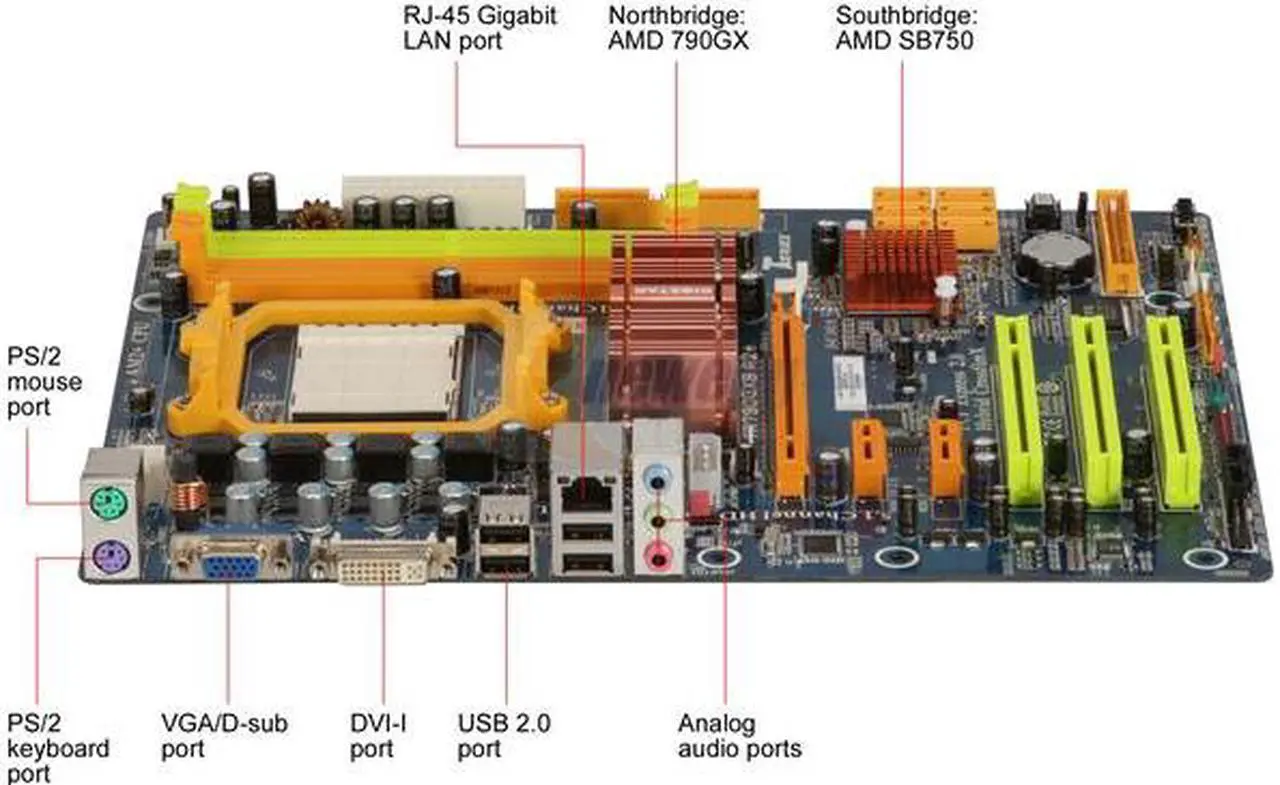

| Back I/O Ports | 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.8" |
| Power Pin | 24 Pin |
| Date First Available | March 10, 2009 |
|---|
