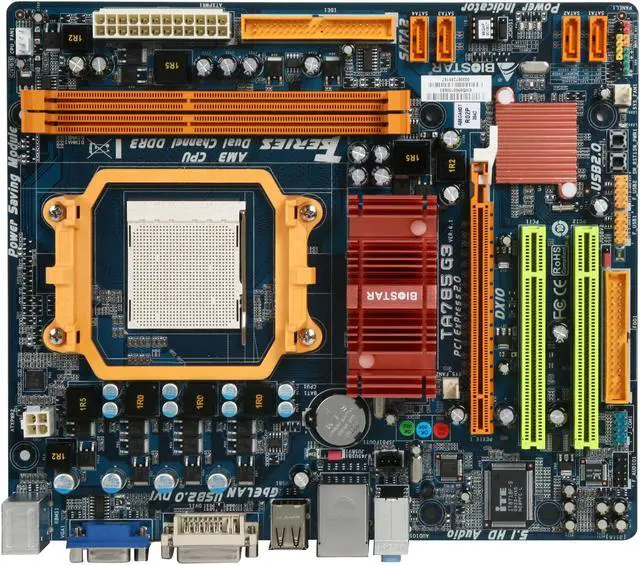

BIOSTAR TA785G3 AM3 AMD 785G Micro ATX AMD Motherboard

(19) Write a Review
  • AMD 785G
  • AMD Phenom II X4 Processor AMD Phenom II X3 Processor AMD Phenom II X2 Processor AMD Athlon II X2 Processor Maximum CPU TDP (Thermal Design Power) : 125Watt
  • DDR3 800/1066/1333/1600(OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (19)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Biostar TA785G3

Model
Brand BIOSTAR
Model TA785G3
Supported CPU
CPU Socket Type AM3
CPU Type AMD Phenom II X4 Processor
AMD Phenom II X3 Processor
AMD Phenom II X2 Processor
AMD Athlon II X2 Processor
Maximum CPU TDP (Thermal Design Power) : 125Watt
FSB 2600 MHz
Chipsets
Chipset AMD 785G
South Bridge AMD SB710
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 800/1066/1333/1600(OC)
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4200
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.23"
Power Pin 24 Pin
Packaging

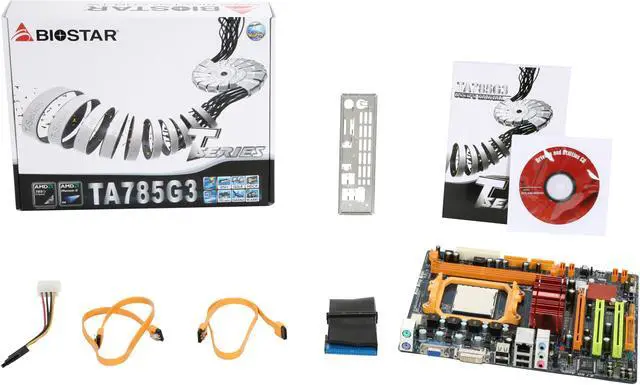

Package Contents TA785G3
1 x IDE Cable
2 x SATA Cable
1 x SATA Power Cable
1 x I/O Shield
1 x CD Driver
1 x User Manual
Additional Information
Date First Available November 13, 2009
