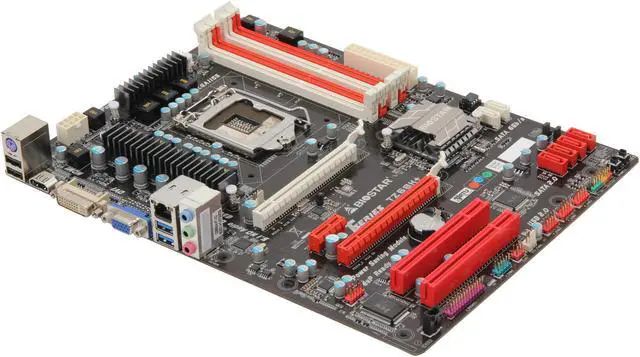

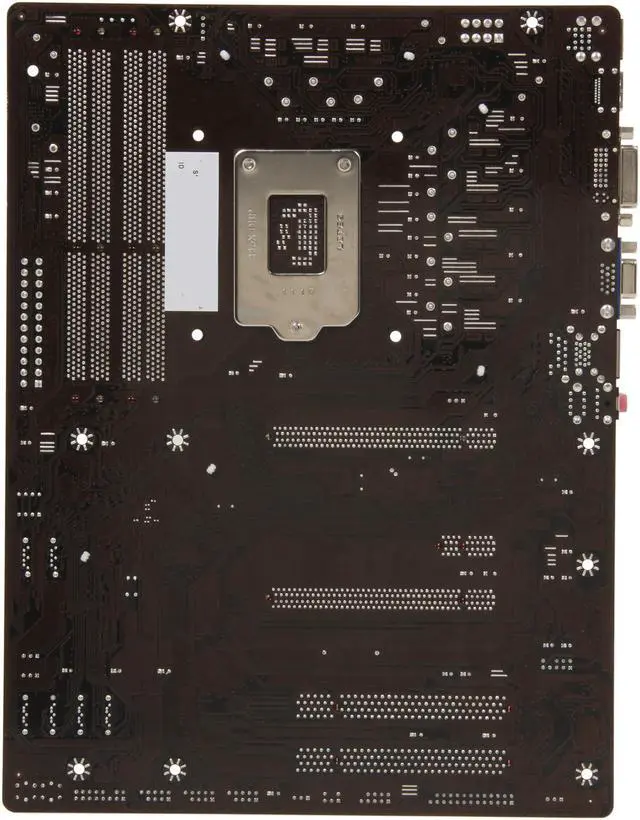

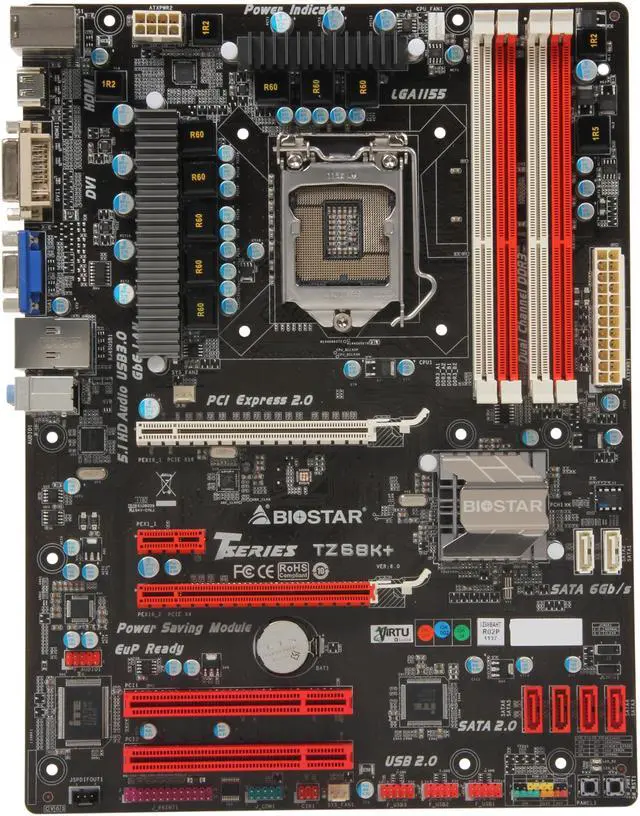

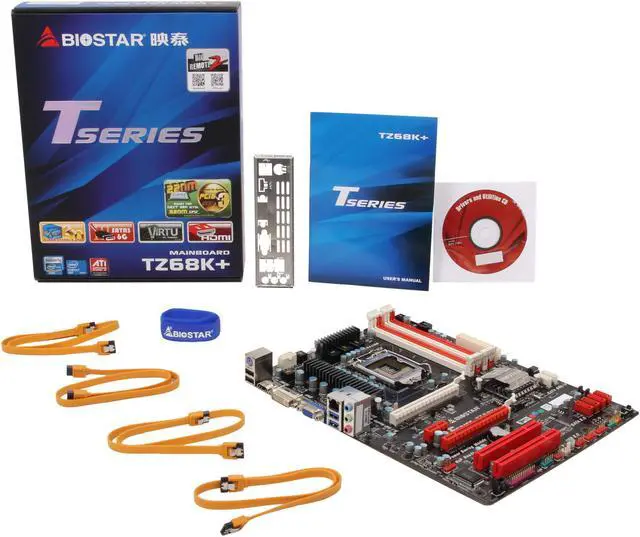

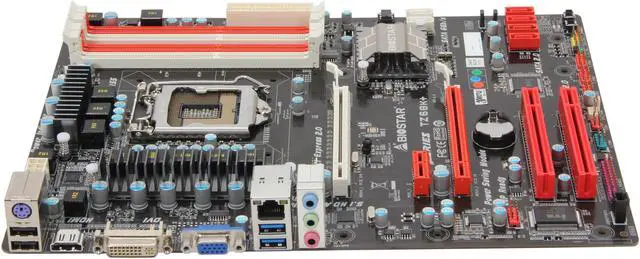

BIOSTAR TZ68K+ LGA 1155 Intel Z68 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z68
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 2200(OC)/2133(OC)/1866(OC)/1600(OC)/1333/1066

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Based on the Intel Z68 chipset, the BIOSTAR TZ68K+ motherboard delivers the best of two worlds, the system tweaking and overclocking capability presented in the Intel P67 chipset, and the media features of the H67 platform when working with the 2nd generation Intel core processor. The brand new Intel Smart Response technology, which harnesses the fast storage of flash memory based SSDs to cache your data, can launch your Operating System and frequently used applications in seconds as well as boost your system performance to a new level.

  • newegg Intel Smart Response Technology Intel Smart Response Technology is an Intel Rapid Storage Technology (RST) caching feature that improves computer system performance. It allows a user to configure computer systems with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive (or a RAID volume) for maximum storage capacity while delivering an SSD-like overall system performanc. (It is required to update both “BIOS” and “Intel RST Driver” to the latest version)
  • newegg Virtu GPU Virtulization Software Graphics technology found in an integrated GPU, an Intel Sandy Bridge CPU or on a discrete 3D graphics card have a variety of different, yet important, graphics, media, gaming and power saving benefits. In comes Virtu, the first GPU virtualization software that makes it all accessible and eliminates the need to choose.
  • newegg 8 Phase Power Design & 100% Solid Caps 8 phase power design enables the best delivery of power to supercharge your system, giving extreme users unparalleled overclocking ability and the lowest temperatures to reach maximum performance levels. And with armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.
  • newegg T-Overclocker T-overclocker presents a simple Windows-based system performance enhancement and utility management. It features several powerful yet easy to use tools such as overclocking for system performance enhancement, CPU and memory special enhancement, a smart-fan control for managing fan speed control of both CPU cooling fan, north-bridge chipset cooling fan, PC health for monitoring system status, and pre-set OC modes for easy OC.
  • newegg BIO-Remote 2 BIO-Remote2 Technology is featuring users a better Home Theater environment. Users who own either Android mobile or Apple goods are able to access and control your PC remotely; at this moment, your smart device became an intelligent and functional remote controller; more than that, BIO-Remote2 also includes both function of mouse pad and power point presentation mode.
  • newegg USB 3.0 & SATA III Experience fastest data transfers at 5 Gbps with USB 3.0--the new latest connectivity standard, which is built to connect easily with next-generation components and peripherals. SATA III 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATA III allows an incredible data boost which is 2x faster than the SATA 3Gb/s.

Learn more about the Biostar TZ68K+

Model

|
Brand
BIOSTAR
Model
TZ68K+

Supported CPU

|
CPU Socket Type
LGA 1155
CPU Type
Core i7 / i5 / i3 (LGA1155)

Chipsets

|
Chipset
Intel Z68

Onboard Video

|
Onboard Video Chipset
Supported only by CPU with integrated graphic

Memory

|
Number of Memory Slots
4×240pin
Memory Standard
DDR3 2200(OC)/2133(OC)/1866(OC)/1600(OC)/1333/1066
Maximum Memory Supported
32GB
It is recommended to install memory module on the red DDR3 DIMM slot (DDR3_A2 or DDR3_B2) to boot the system.
Channel Supported
Dual Channel

Expansion Slots

|
PCI Express 2.0 x16
2 (x16, x4)
PCI Express x16
2
PCI Express x1
1 x PCI Express x1
PCI Slots
2 x PCI Slots

Storage Devices

|
SATA 3Gb/s
4 x SATA 3Gb/s
SATA 6Gb/s
2 x SATA 6Gb/s
SATA RAID
0/1/5/10

Onboard Audio

|
Audio Chipset
Realtek ALC892
Audio Channels
6 Channels

Onboard LAN

|
LAN Chipset
Realtek 8111E
Second LAN Chipset
Intel
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

|
PS/2
1
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 3.0
2 x USB 3.0
USB 1.1/2.0
2 x USB 2.0
Audio Ports
3 Ports

Internal I/O Connectors

|
Onboard USB
6 x USB 2.0
Other Connectors
1 x Printer Header
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-OUT Header
1 x CPU FAN Header
2 x System FAN Header
1 x Serial Header
1 x CIR Header

Physical Spec

|
Form Factor
ATX
Dimensions (W x L)
12" x 9.06"
Power Pin
24 Pin

Features

|
Features
Supports the Intel 2nd generation Core i7 and Core i5 processors in the 1155 package

Intel Z68 single chip architecture

Support 4-DIMM DDR3-2200(OC)/2133(OC)/1866(OC)/1600(OC)/1333 up to 32G maximum capacity

Support SATA 6Gb/s 2X speed than current SATA 3G

Support Intel Smart Response Technology (It is required to update both "BIOS" and "Intel RST Driver" to the latest version)

Support USB 3.0

100% X.D.C solid capacitor

BIOSTAR G.P.U (Green Power Utility) Technology for Energy Saving

BIOSTAR Toverclocker utility
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
