BIOSTAR H81MHC LGA 1150 Intel H81 HDMI USB 3.0 Micro ATX Intel Motherboard
- Intel H81
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
- DDR3 1600/1333/1066
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar H81MHC
| Brand | BIOSTAR |
|---|---|
| Model | H81MHC |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) |
| Chipset | Intel H81 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RTL8111G |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 Mouse 1 x PS/2 Keyboard |
| Video Ports | 1 x VGA Port |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Front Audio Header 1 x Front Panel Header 1 x CPU FAN Header 1 x System FAN Header 1 x Serial Header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.9" x 6.7" |
| Features | Support the Intel 4th generation Core i7 and Core i5 processors in the 1150 package Intel H81 single chip architecture Support 2-DIMM DDR3-1600/1333up to 16G maximum capacity |
|---|

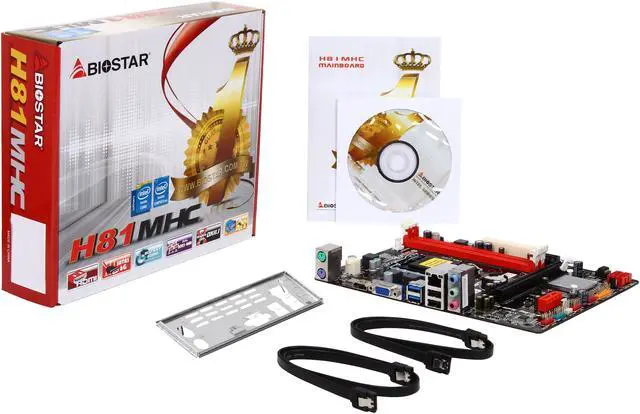

| Package Contents | BIOSTAR H81MHC Motherboard 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
|---|
| Date First Available | May 06, 2014 |
|---|
