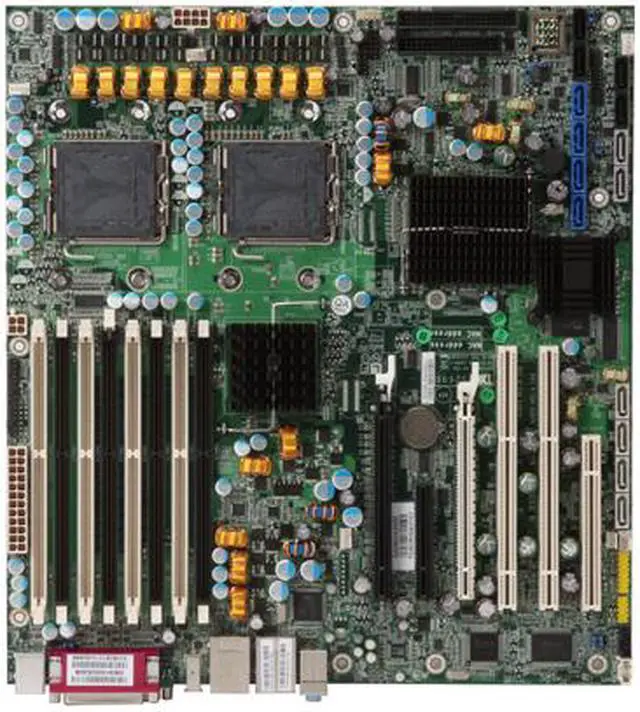

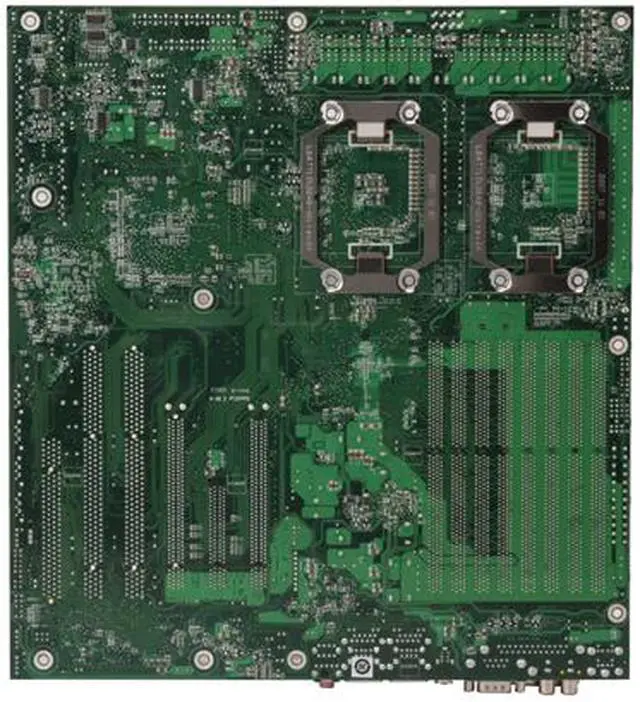

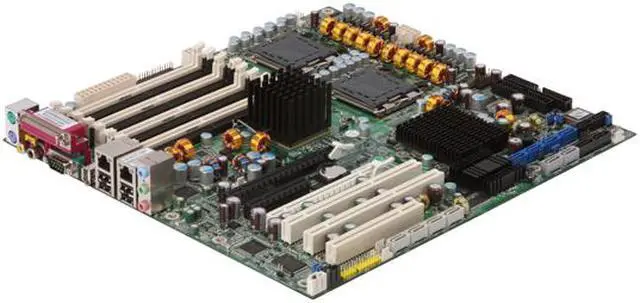

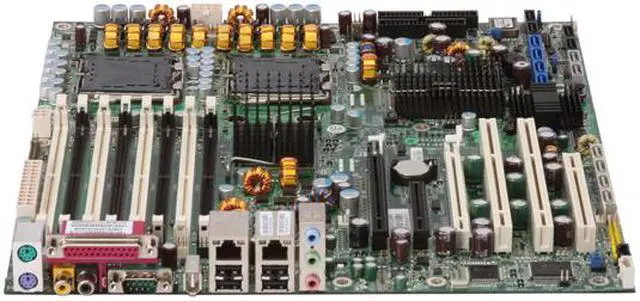

TYAN S2696WA2NRF (SAS) Tempest i5000XT Dual LGA 771 Intel 5000X Extended ATX Dual Intel Xeon Server Motherboard

(10) Write a Review
  • Dual LGA 771
  • Intel 5000X
  • 8 x 240Pin
Specs
Reviews (10)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the TYAN S2696WA2NRF (SAS)

Model
Brand TYAN
Model S2696WA2NRF (SAS)
Supported CPU
CPU Socket Type Dual LGA 771
CPU Type Dual Intel Xeon
Chipsets
North Bridge Intel 5000X
South Bridge Intel 6321ESB
Memory
Number of DDR2 Slots 8 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 32GB
Channel Supported Four memory channels
ECC Supported Yes
Registered FBDIMM
Expansion Slots
PCI Express x16 2 x PCI-E x16 slots (one x4 sig. from 6321ESB; one x16 signals for graphics cards)
PCI Express x8 1 x PCI-E x8 slot (x4 sig. from 6321ESB)
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID RAID 0, 1, 5, and 10 supported (Window OS only)
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC888
Onboard LAN
LAN Speed 10/100/1000Mbps
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Onboard Ports
Onboard USB 2 x USB 2.0
Onboard 1394 1 x 1394a
Features
Features LSI 1068E SAS controller
8 x SAS ports
RAID 0, 1, and 1E supported
Supports Integrated Mirroring, Integrated Enhanced Mirroring, and Integrated Stripping
Dimensions
Form Factor Extended ATX
Dimensions (W x L) 12.0" x 13.0"
Packaging

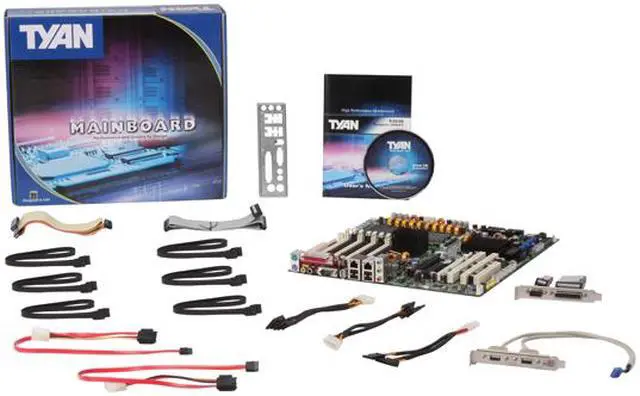

Package Contents S2696WA2NRF (SAS)
Rear I/O Panel Shield
User Manual
Driver Disk
IDE/PATA Cable
FDD Cable
6 x SATA Cable
3 x Power Cable
USB Bracket
COM Port Bracket
Additional Information
First Listed on Newegg January 02, 2007
