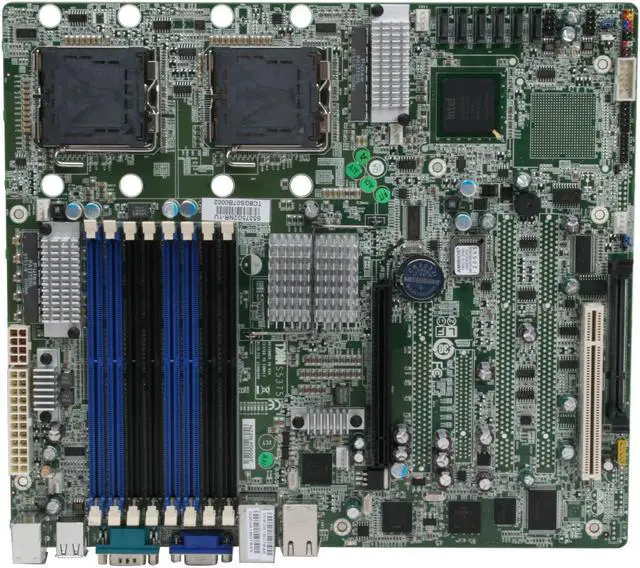

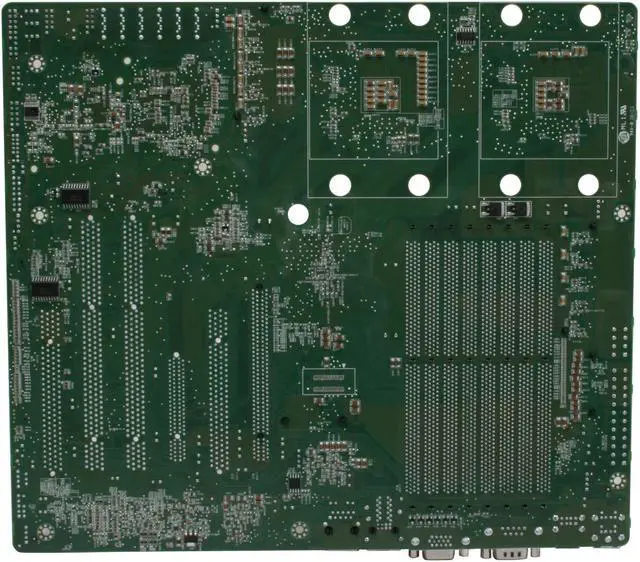

TYAN S5375G2NR-1U Tempest i5100X Dual LGA 771 Intel 5100 CEB Dual Intel Xeon Server Motherboard

Be the first to review this product...
  • Dual LGA 771
  • Intel 5100
  • 8 x 240Pin
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the TYAN S5375G2NR-1U

Model
Brand TYAN
Model S5375G2NR-1U
Supported CPU
CPU Socket Type Dual LGA 771
CPU Type Dual Intel Xeon
System Bus 1333/1066 MHz
Chipsets
North Bridge Intel 5100
South Bridge Intel ICH9R
Memory
Number of DDR2 Slots 8 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 32GB
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset XGI Z9s
Onboard LAN
LAN Chipset Intel 82573V
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82573V
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps

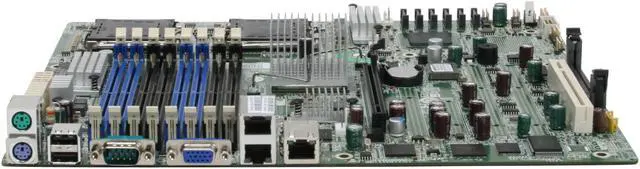

Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Dimensions
Form Factor CEB
Dimensions (W x L) 12.0" x 10.5"
Additional Information
First Listed on Newegg March 04, 2008
