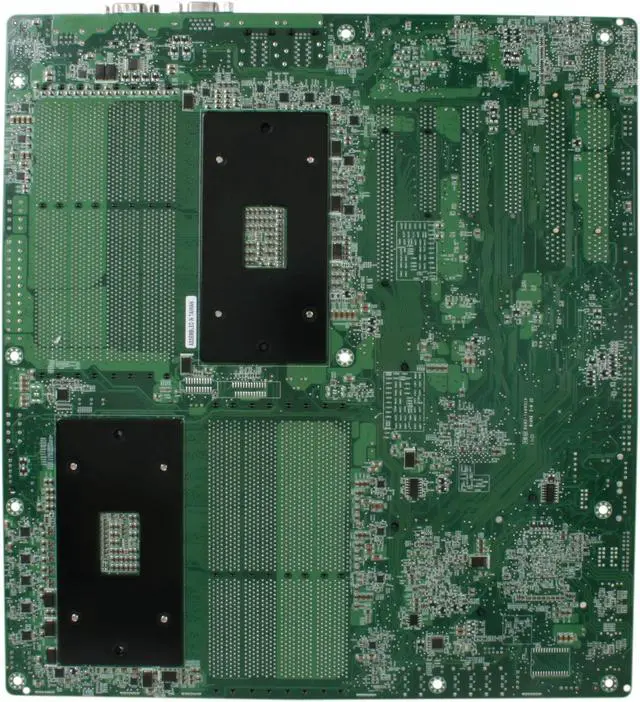

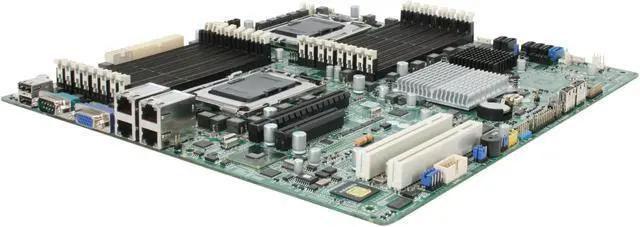

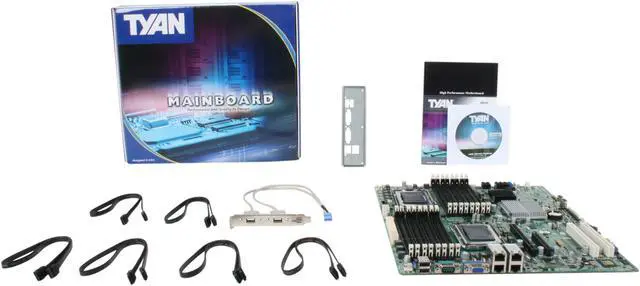

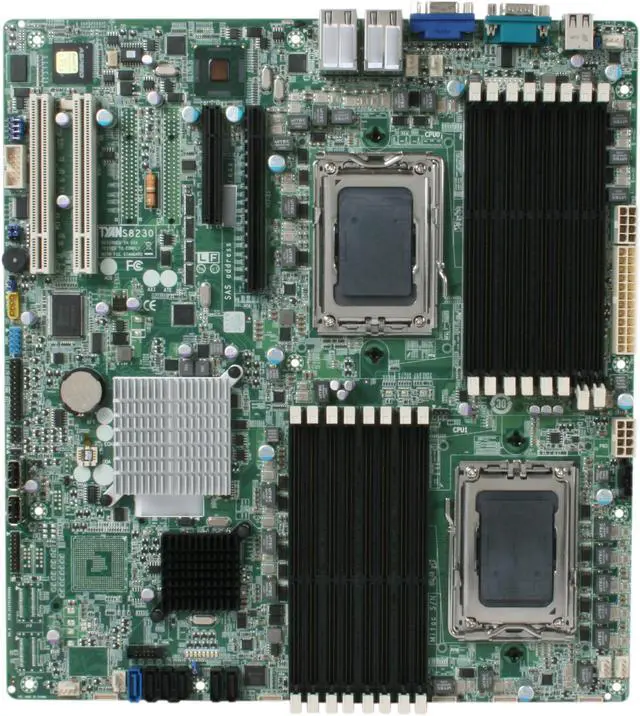

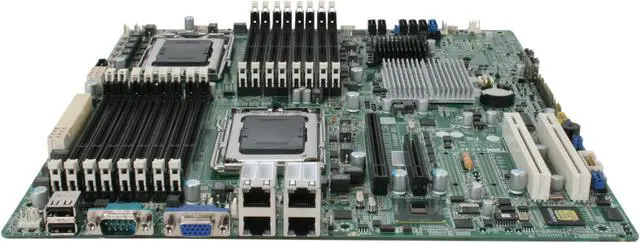

TYAN S8230GM4NR-LE Extended ATX Server Motherboard Dual Socket G34 AMD SR5670 DDR3 1333

(2) Write a Review
  • Dual Socket G34
  • AMD SR5670
  • 16 x 240pin
Overview
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Based on AMD SR5670 + SP5100 chipset, the powerful TYAN S8230 motherboard is designed to support dual AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors or AMD 32nm 8-Core/12-Core/16-Core Opteron 6200 Series Processors and up to 128GB of 800, 1066 and 1333MHz DDR3 memory. Leveraging advanced technology from AMD, the S8230 is capable of offering scalable 32 and 64-bit computing, high-bandwidth memory design, and lightning-fast PCI-E bus implementation.

All of these rich feature sets provides the S8230 with the power and flexibility to meet demanding requirements for today’s IT environments. The S8230 not only empowers you in today’s demanding IT environment but also offers a smooth path for future application upgradeability.

  • neweggDual AMD Sixteen/Twelve/Eight-Core Opteron 6200 Series Processors SupportWith dual G34 sockets and AMD SR5670 chipset, the TYAN S8230GM4NR-LE server board supports up to two 16-, 12- and 8-Core 32nm AMD Opteron 6200 series processors (Interlagos) to address the demanding needs for high performance and balanced architecture by modern business.
  • neweggScalable DDR3 MemorySixteen 240-pin DIMM sockets support U/RDDR3 & LV RDDR3 memory at up to 1333MHz, up to 128GB in quad-channel per CPU, ensuring ample capacity for demanding applications.
  • neweggQuad Gigabit LAN PortsFeaturing Intel 82574L and Intel 82576EB LAN controllers, the TYAN S8230GM4NR-LE is outfitted with quad Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
  • neweggEasy ExpansionOne PCIe 2.0 x16 slot, one PCI 2.0 x8 slot and two PCI slots support a range of expansion cards and discrete cards for flexible expansion.
  • neweggSATA with PROMISE SW RAID SolutionSix SATA 3Gb/s ports allows flexible storage configuration. Promise Software RAID delivers fast, efficient, and reliable RAID algorithm, with support for RAID 0, 1, 5, 10.
  • neweggIntegrated ManagementThe integrated Aspeed AST2050 BMC (Baseboard Management Controller) with IPMI (Intelligent Platform Management Interface) v2.0 support enables out-of-band capabilities for monitoring hardware and software status regardless of the OS or power state. Optional i/KVM support provides a complete remote management upgrade solution.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
