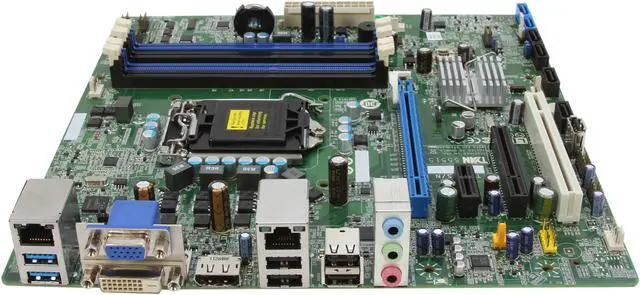

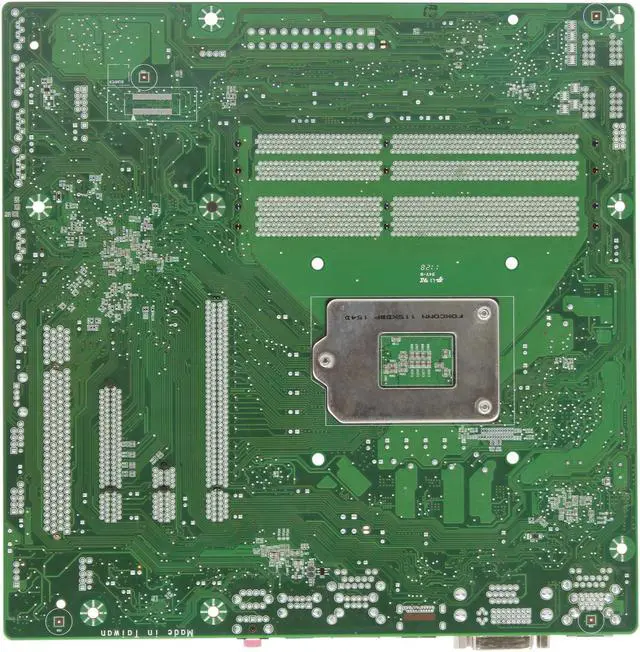

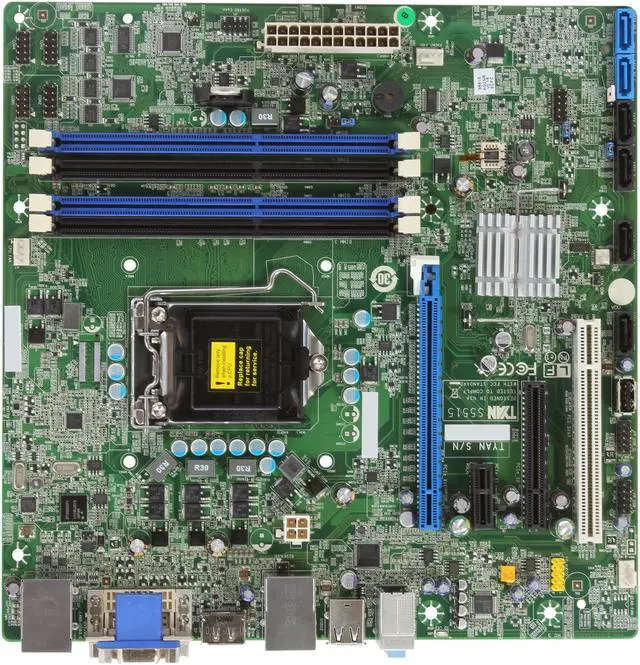

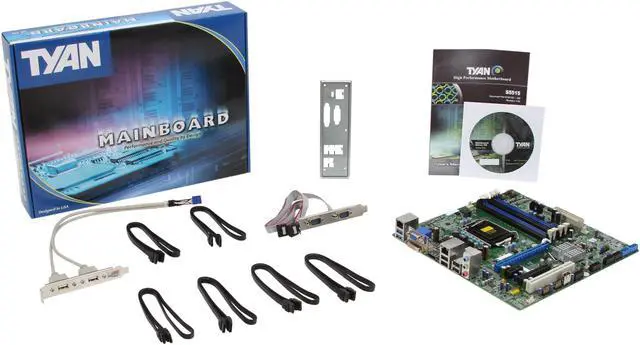

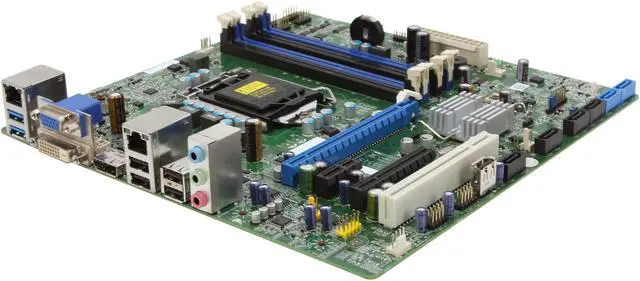

TYAN S5515AG2NR Micro ATX Server Motherboard LGA 1155 Intel Q67 DDR3 1333/1066

Be the first to review this product...
  • LGA 1155
  • Intel Q67 Super I/O: Nuvoton 5577D
  • 4 x 240pin
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the TYAN S5515AG2NR

Model
Brand TYAN
Model S5515AG2NR
Supported CPU
CPU Socket Type LGA 1155
CPU Type Intel Core i3/ i5/ i7 series
Chipsets
North Bridge Intel Q67
Other Chipset Super I/O: Nuvoton 5577D
Memory
Number of DDR3 Slots 4 x 240pin
DDR3 Standard DDR3 1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 (1) PCI-E Gen.2 x16 slot
PCI Express x8 (1) PCI-E Gen.2 x8 slot (w/ x4 link)
PCI Express x1 (1) PCI-E Gen.2 x1 slot
PCI Slots (1) PCI 32-bit slot (5.0V)
Storage Devices
SATA 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID 0/1/10/5 (Intel RST)
Onboard LAN
LAN Chipset Intel 82583
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82579
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Video Ports D-Sub + DVI + Display Port
USB 1.1/2.0 2 x USB 3.0 + 4 x USB 2.0
Onboard Ports
Onboard USB 1 type A onboard
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
First Listed on Newegg January 12, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
