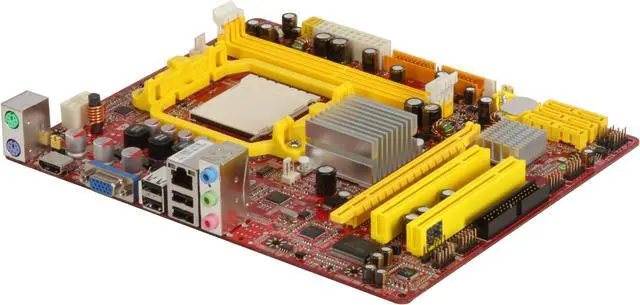

JetWay JPA78VM5-H-LF AM2+/AM2 AMD 780V HDMI Micro ATX AMD Motherboard
- AMD 780V
- Phenom / Athlon 64 X2 / Athlon 64 / Sempron
- DDR2 1066
Specs
Reviews (24)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JPA78VM5-H-LF
| Brand | JetWay |
|---|---|
| Model | JPA78VM5-H-LF |

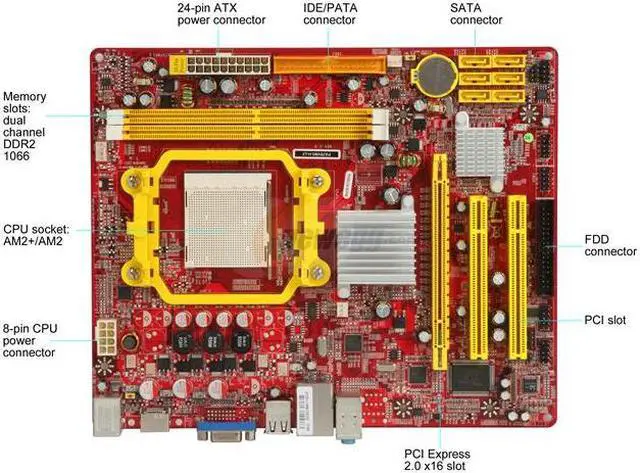

| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom / Athlon 64 X2 / Athlon 64 / Sempron |
| Chipset | AMD 780V |
|---|---|
| South Bridge | AMD SB700 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 1066 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/JBOD |
|---|
| Onboard Video Chipset | ATI Radeon 3100 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |

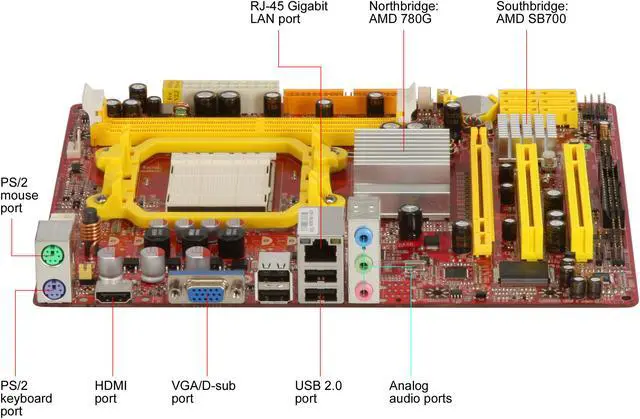

| Back I/O Ports | 1 x D-Sub / 1 x HDMI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.8" |
| Power Pin | 24 Pin |
| First Listed on Newegg | March 11, 2009 |
|---|
