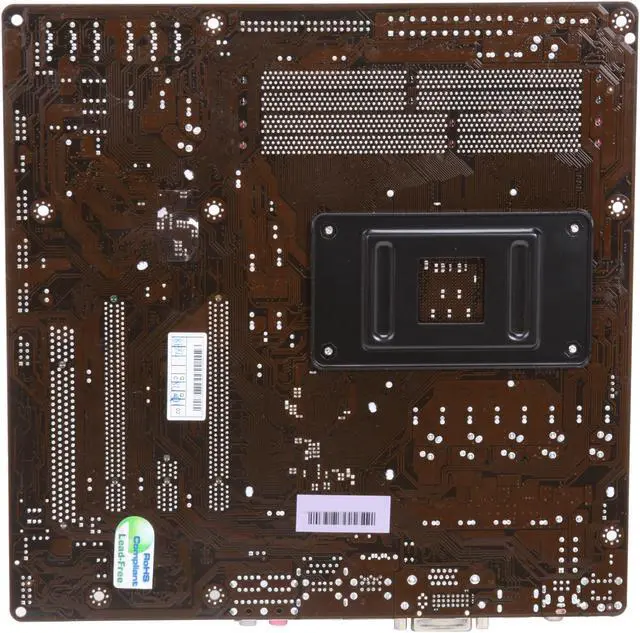

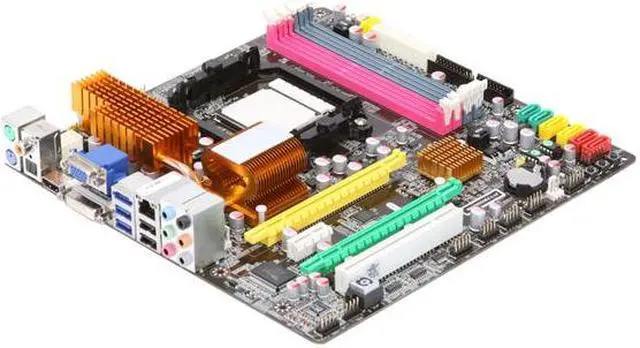

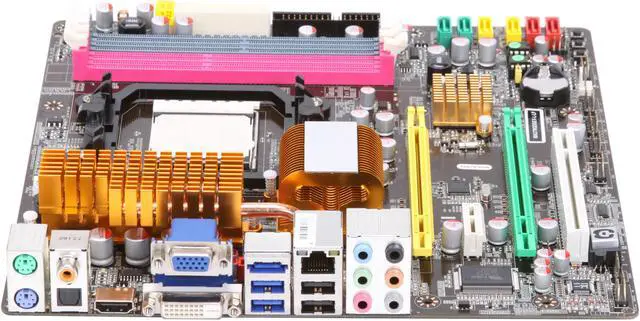

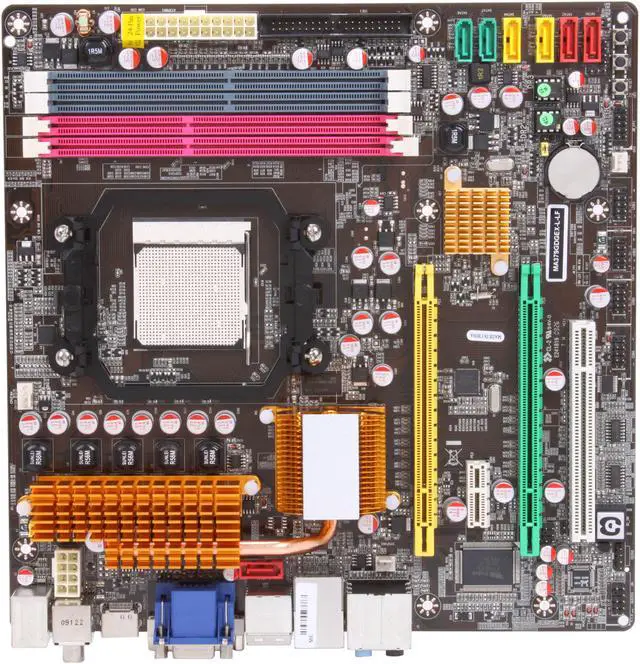

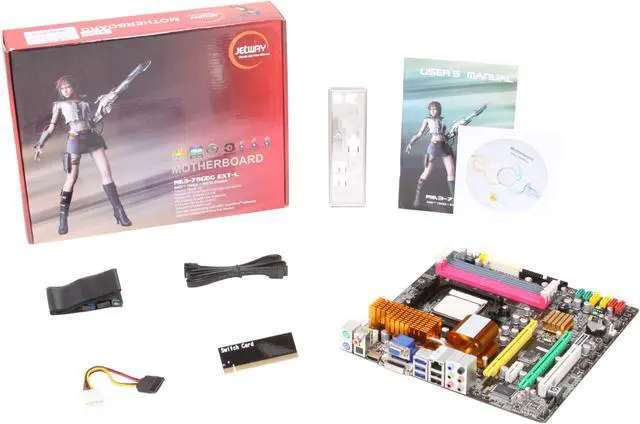

JetWay JMA3-79GDGEXL-LF AM3/AM2+/AM2 AMD 790GX HDMI Micro ATX AMD Motherboard
- AMD 790GX
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron
- DDR2 1066/800 DDR3 1333/1066
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JMA3-79GDGEXL-LF
| Brand | JetWay |
|---|---|
| Model | JMA3-79GDGEXL-LF |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron |
| Chipset | AMD 790GX |
|---|---|
| South Bridge | AMD SB750 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066/800 DDR3 1333/1066 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 slots by 8-LANE |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA RAID | 0/1/5/10 |
|---|
| Onboard Video Chipset | ATI Radeon HD 3300 |
|---|
| Audio Chipset | Realtek ALC883 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0/1.1 headers for 6 USB 2.0/1.1 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports CPU up to 125W Supports AMD OverDrive(AOD) Technology Supports ATI Hybrid CrossFire Technology Supports ATI CrossFireX Technology Supports G.P.I Technology Supports 3D Audio Technology Supports Dual Channel DDR2/DDR3 Integrated ATI Radeon HD 3300 GPU(For Directx 10) Integrated DDR3 128MB side port memory |
|---|
| First Listed on Newegg | December 10, 2009 |
|---|
