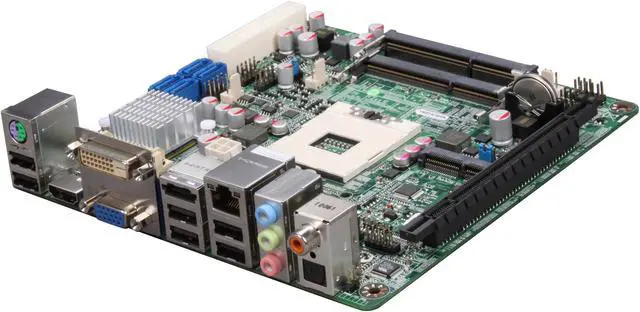

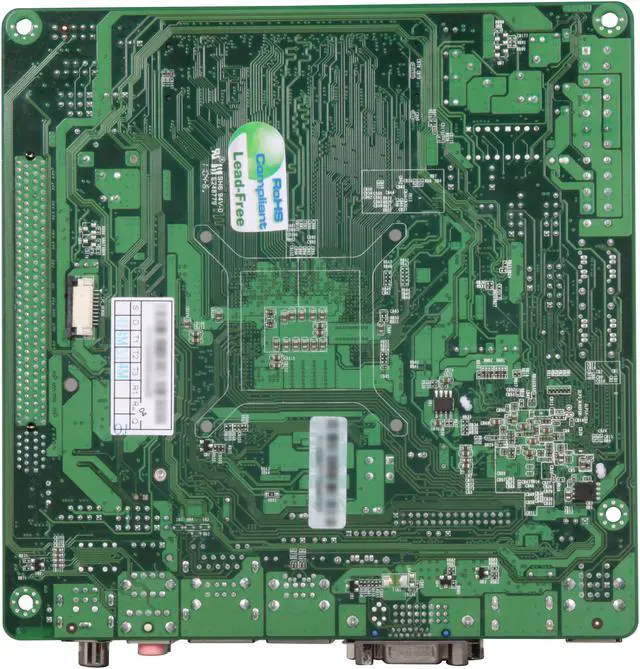

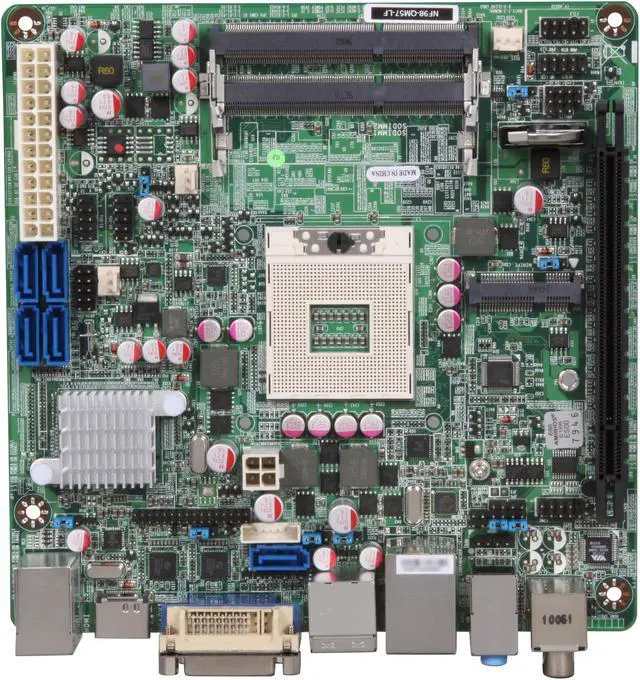

JetWay JNF98-QM57-LF Socket G (PGA 988) Intel QM57 HDMI Mini ITX Intel Motherboard
- Intel QM57
- Core i7 / i5 / i3 mobile (PGA 988)
- DDR3 1066
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JNF98-QM57-LF
| Brand | JetWay |
|---|---|
| Model | JNF98-QM57-LF |
| CPU Socket Type | Socket G (PGA 988) |
|---|---|
| CPU Type | Core i7 / i5 / i3 mobile (PGA 988) |
| Chipset | Intel QM57 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| Mini Card Slots | 1 x Mini PCIe |
| SATA RAID | 0/1/5/10/JBOD |
|---|
| Audio Channels | 6 Channels |
|---|
| LAN Chipset | Intel 82577 LM |
|---|---|
| Max LAN Speed | 1Gbps |

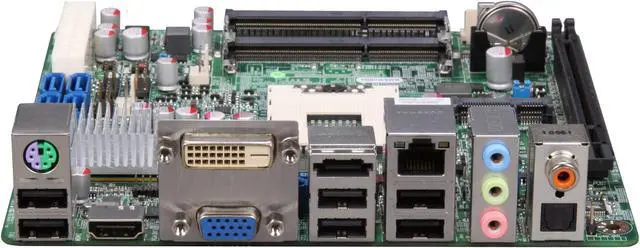

| Back I/O Ports | 1 x eSATA 3GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |
| Features | Integrated 24 -bit Dual Channel LVDS Built -in Watchdog Timer Technology Includes CPU heatsink/fan for processors < 35W |
|---|
| First Listed on Newegg | April 02, 2011 |
|---|
