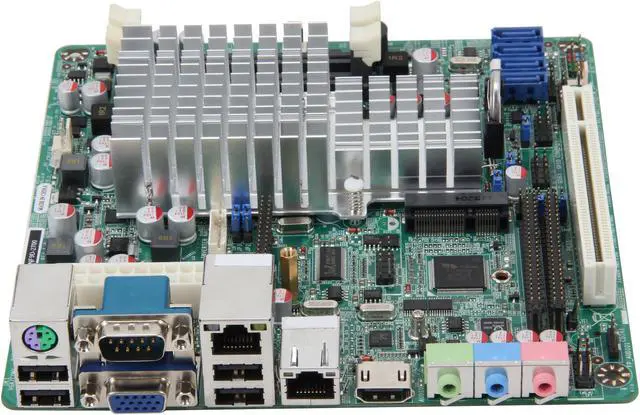

JetWay JNF9D-2700 Intel Atom D2700 (2.13GHz, Dual-Core) Mini ITX Motherboard/CPU Combo

Skip Image Gallery

JetWay JNF9D-2700 Intel Atom D2700 (2.13GHz, Dual-Core) Intel NM10 Mini ITX Motherboard/CPU Combo

(2) |

Write a Review

Intel Atom D2700 (2.13GHz, Dual-Core)
Intel NM10
2×204pin SO-DIMM DDR3 1066/800

Learn more about the JETWAY JNF9D-2700

Model

Brand: JetWay

Model: JNF9D-2700

Combo Type: Motherboard/CPU Combo

Bundle

CPU: Intel Atom D2700 (2.13GHz, Dual-Core)

With Cooler: Yes

Supported CPU

CPU Type: Intel Atom

Chipsets

North Bridge: Intel NM10

Memory

Number of Memory Slots: 2×204pin SO-DIMM

Memory Standard: DDR3 1066/800

Maximum Memory Supported: 4GB

Expansion Slots

PCI Slots: 1

Mini Card Slots: 1 x PCI Express Mini Card Slot (full-size)

Storage Devices

SATA: 2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s

Onboard Video

Onboard Video Chipset: Integrated PowerVR SGX 545 Graphics

Onboard Audio

Audio Chipset: VIA VT1705

Audio Channels: 6 Channels

Onboard LAN

LAN Chipset: Realtek 8111EVL

Second LAN Chipset: Realtek 8111EVL

Max LAN Speed: Dual 10/100/1000Mbps

Rear Panel Ports

PS/2: 1

COM: 1

Video Ports: D-Sub

HDMI: 1 x HDMI

USB 1.1/2.0: 4 x USB 2.0

Audio Ports: 3 Ports

Internal I/O Connectors

Onboard USB: 4 x USB 2.0

Physical Spec

Form Factor: Mini ITX

Dimensions: 6.7" x 6.7"

Features

Features: Embedded Long-life Series, 5 Year Availability

Next-Generation Intel Cedar Trail-D Platform

Intel Atom D2700 Processor, 2.13GHz, Dual-Core, 32nm, 10W

Intel NM10 Express Chipset

Integrated PowerVR SGX 545 Graphics, 640MHz, DirectX 9

1080P HD Playback, Blu-ray 2.0, Dual Independent Displays

Supports 2 x DDR3-800/1066 SO-DIMM up to 4GB

Supports 2 x SATA3 6Gb/s & 2 x SATA2 3Gb/s Devices

Dual Gigabit LAN with Enhanced Surge Protection

HDMI/VGA and 24-bit LVDS Video Outputs, HD Audio

Supports Jetway Daughter Board Expansion Modules

Mini-ITX Form Factor (170mm x 170mm)

Quick Info

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years

Manufacturer Contact Info

Manufacturer Product Page|
Website: http://www.jetwaycomputer.com/|
Support Phone: 1-510-857-0130
Support Email: tech@jetwaycomputer.com|
Support Website|
View other products from JETWAY

Customer Reviews of the JETWAY JNF9D-2700

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (2) 0% (0) 0% (0) 0% (0) 0% (0) 100% (2) Verified Owners Video Reviews Mfr. Responses keyword Go
Dev 10/5/2012 6:32:46 PM Tech Level: 4/5 Ownership: 1/5 Verified Owner	Rating: 1/5junk Pros: Small and power efficient motherboard and processor Cons: 64 bit compatible processor put on a motherboard that has no option to support anything 64 bit. There are not any available driver updates to fix this. Manufacturer blames Intel stating that Intel had told them this Atom processor is not capable of supporting a 64 bit operating system of any kind. Other Thoughts: If you are okay with a 32 bit system then this would be a good option for the job. However, if you did as I did and purchase this because you want a 64 bit system and see the processor will is designed to support it then you will be sadly mistaken when you find out Jetway didn't design the motherboard to support this option Did you find this review helpful? Thanks for the valuable feedback you provided!
Portblock 9/27/2012 9:45:39 AM Tech Level: 5/5 Ownership: 1/5 Verified Owner	Rating: 1/5No linux out of box Pros: none Cons: Does not work with linux firewalls out of the box. We Tried the following: * Smoothwall express v3 sp3 * ClearOS * Endian Firewall Other Thoughts: I order about 2 to 4 boards every couple months, Jetway boards with Via, have always worked in the past for me, so I just assumed Jetway, order it, this time Fail! 0 out of 2 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
