Model

Brand

JetWay

Model

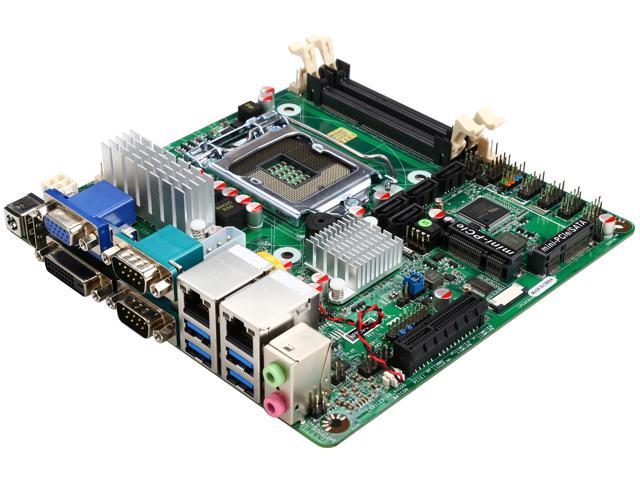

JNF9QU-Q87

Supported CPU

CPU Socket Type

LGA 1150

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipsets

Chipset

Intel Q87 (AKA Lynx Point)

Memory

Number of Memory Slots

2×204pin SO-DIMM

Memory Standard

DDR3 1600

Maximum Memory Supported

16GB

Storage Devices

SATA 6Gb/s

4 x SATA 6Gb/s

mSATA

1 x Shared mSATA/mini-PCI Express Combo slot (Full-size)

SATA RAID

0/1/5/10/JBOD

Onboard Video

Onboard Video Chipset

Requires Intel Core processor with Intel HD Graphics

Onboard Audio

Audio Chipset

Realtek ALC662

Audio Channels

5.1 Channels

Onboard LAN

LAN Chipset

Intel I217-LM

Second LAN Chipset

Intel I210-AT

Max LAN Speed

Dual 10/100/1000Mbps

Rear Panel Ports

Video Ports

1 x DVI-D (up to 1920 x 1080)
1 x VGA

RJ45

2 x RJ45 LAN (10/100/1000)

USB 3.0

4 x USB 3.0

Audio Ports

2 x 3.5mm Audio

Internal I/O Connectors

Onboard USB

1 x USB Pin Headers for up to 2 additional USB 3.0 Ports
2 x USB Pin Headers for up to 4 additional USB 2.0 Ports

Other Connectors

1 x PCI-E x4 Slot
1 x Mini-PCI Express slot (Half-size)
1 x Nuvoton TPM IC onboard
1 x 9-pin Audio header
2 x Serial Headers (2 * RS232)
1 x GPIO header
1 x Chassis Intrusion header
1 x PS2 Keyboard/Mouse header
2 x LAN LED header
1 x SPDIFOUT header
1 x SMBUS header
1 x AT/ATX mode select jumper
1 x Front Panel header
3 x Fan headers
1 x 4-pin Molex Power Output (Male)
1 x 4-pin +9 ~ +24V ATX Power Connector for alternate internal power supply

Physical Spec

Form Factor

Mini ITX

Dimensions (W x L)

6.7" x 6.7"

Features

Features

4th Generation Intel Core i7 / i5 / i3 / Pentium Processor
Long-Life Embedded Class with Planned Lifecycle Through Q4'2018
Built-in +9 ~ +24V DC-in jack
Nuvoton TPM IC Onboard
Support up to 3 Displays, HDMI, DVI-D, VGA
Supports iAMT 9.0 Function
ECO-design for EuP/ErP

Packaging

Package Contents

Accessories Included:
IO shield for JNF9QU-Q87
SATA3 cable
30cm COM cable
Y Power cable
DVD driver disk
