| Product Rating: |

|
| Total Reviews: |
393 |
Asrock 4CoreDual-SATA2 R2.0
- Pros: I previously posted that 4GB of memory would not work with this Asrock 4coredual-sata2 r2.0 motherboard once I attached a SATA hard drive.
I got 4GB of Corsair 2x2GB DDR2-800 TWIN2X4096-6400C5 to work with the PCTreiber modified BIOS 2.20A.
1. used AFUWin flash 4.40 in Windows XP Pro
2. pointed to the directory I had the 2.20A BIOS file
3. chose all files in the pulldown
4. chose the file
5. chose program all blocks
6. chose destroy CMOS checksum.
I shut down and added one 2GB bank of RAM. Upon reboot, I loaded BIOS defaults, saved, and booted into OS. I shutdown and added the other 2GB bank of ram, got into the BIOS and loaded BIOS defaults, saved, and booted into the OS again with no problem. I restarted and got into the BIOS to make changes to my memory timings for optimized settings and speed.
- Cons: (Do steps 5 and 6 at your own risk!!!!! I will not be held responsible for what happens after this. You might have a non-booting motherboard if something goes wrong with the flash)
Great!!!!!!!!!!!!!!!!!!!!!!!!!!!!
- Pros: Definitely a good MB! I have had no real problems out of it, had to upgrade the BOIS and thats it. Specs say that it will only support 2GB of RAM. I have 3 in mine and it is VERY stable. Just thought I would let everyone know about the 3 GB of RAM. Running quad core, HD 3850 agp card, 3GB RAM, 500 GB HD, also XP, Vista, and windows 7 OS's all run great. Right at 1 year mark and hope for many more like this
- Cons: NONE
- Other Thoughts: If your looking for an AGP MB than this one is for you.
Good cross over board
- Pros: For any one who plans to upgrade with old components, this board provides alot of options. It works great.
- Cons: It would not shut down, but there was a bug fix for that on the manufacturers website.
- Other Thoughts: none
| Model |
| Brand |
ASRock |
| Model |
4CoreDual-SATA2 |
| Supported CPU |
| CPU Socket Type |
LGA 775 |
| CPU Type |
Core 2 Quad / Core 2 Extreme / Core 2 Duo / Pentium XE / Pentium D / Pentium Dual Core / Pentium 4 / Celeron / Celeron D, supporting Quad Core Kentsfield processors |
| FSB |
1066/800MHz |
| Supported CPU Technologies |
Hyper-Threading Technology |
| Chipsets |
| North Bridge |
VIA PT880 Pro/PT880 Ultra |
| South Bridge |
VIA VT8237S |
| Memory |
| Number of Memory Slots |
2×184pin + 2×240pin |
| Memory Standard |
DDR 400/DDR2 667 |
| Maximum Memory Supported |
DDRII: 2GB
DDR: 2GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| AGP Slots |
1 x AGP 4X / 8X |
| PCI Express x4 |
1 |
| PCI Slots |
4 |
| Storage Devices |
| PATA |
2 x ATA100 4 Dev. Max |
| SATA 3Gb/s |
2 |
| SATA RAID |
0/1/JBOD |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC888 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
VIA PHY VT6103 |
| Max LAN Speed |
10/100Mbps |

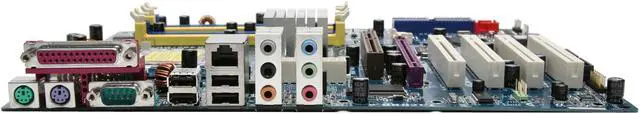

| Rear Panel Ports |
| PS/2 |
2 |
| COM |
1 |
| LPT |
1 |
| USB 1.1/2.0 |
4 x USB 2.0 |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
4 x USB 2.0 |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Power Pin |
20 Pin |
| Features |
| Features |
Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/PCIE/ PCI Buses
Hybrid Booster - Safe Overclocking Technology
HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.
Windows Vista Premium 2007 Logo Ready
HD 8CH I/O: 4 ready-to-use USB2.0 ports, HD 7.1 channel audio jacks |
| Packaging |
| Package Contents |
4CoreDual-SATA2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
1 x HDMI_SPDIF cable |
|
|
Reviewed By: ToddK on 11/10/2009
Tech Level: somewhat high - Ownership: more than 1 year
