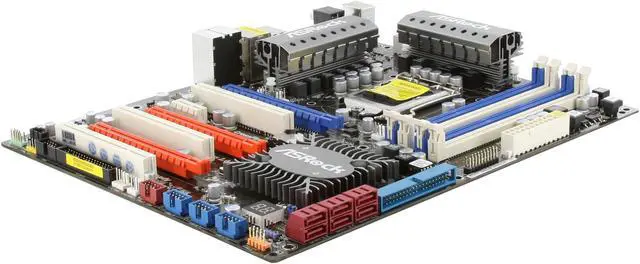

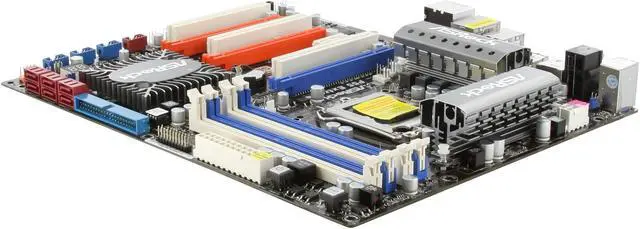

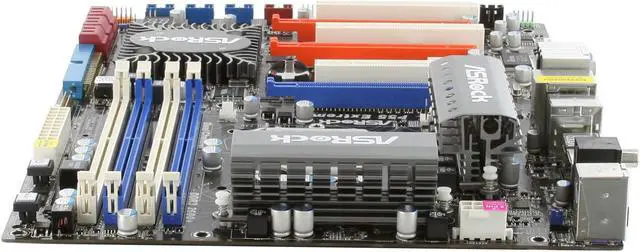

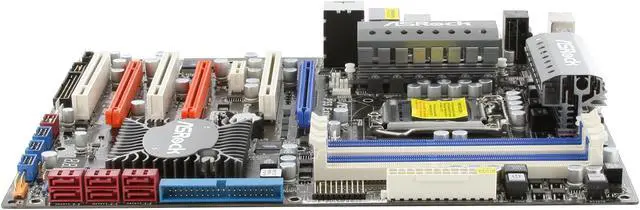

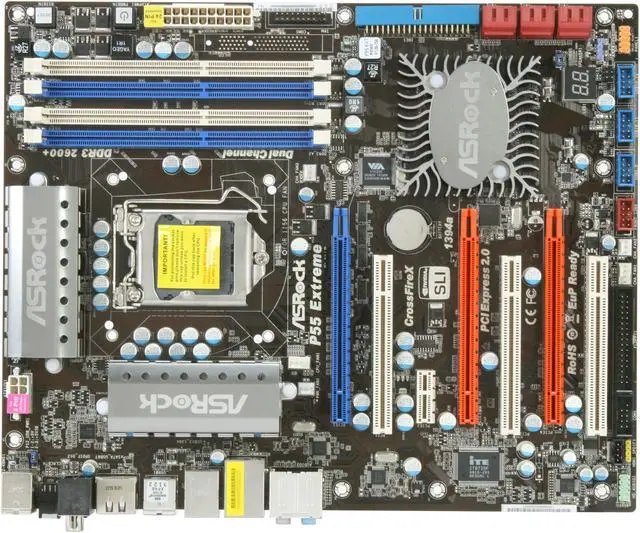

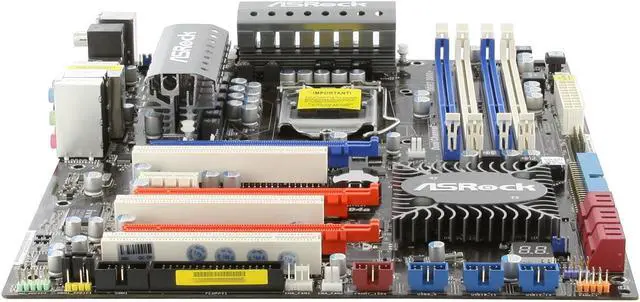

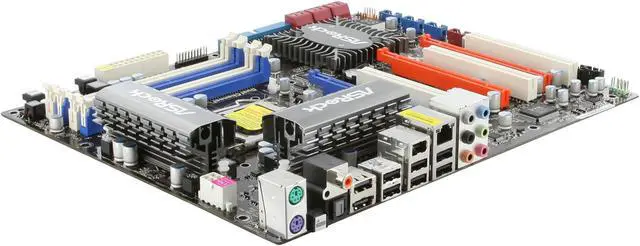

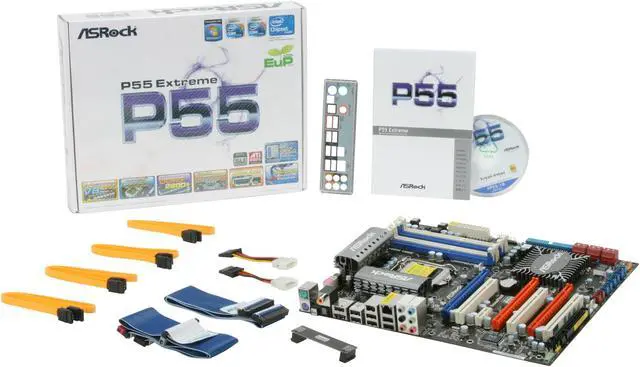

ASRock P55 Extreme LGA 1156 Intel P55 ATX Intel Motherboard

(114) Write a Review
  • Intel P55
  • Core i7 / i5 / i3 and Pentium G6950 Processors in LGA1156 Package
  • DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (114)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock P55 Extreme

Model
Brand ASRock
Model P55 Extreme
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i7 / i5 / i3 and Pentium G6950 Processors in LGA1156 Package
Supported CPU Technologies Supports Intel Turbo Boost Technology
Supports Hyper-Threading Technology
Supports Untied Overclocking Technology
Supports EM64T CPU
Chipsets
Chipset Intel P55
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16 slots (Single at x16 or Dual at x8/x8 mode)
1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
PCI Express x1 1 x PCI Express 2.0 x1 slot (2.5GT/s)
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA RAID 0/1/5/10 Matrix RAID
Onboard Audio
Audio Chipset Realtek ALC890
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 1Gbps
Rear Panel Ports

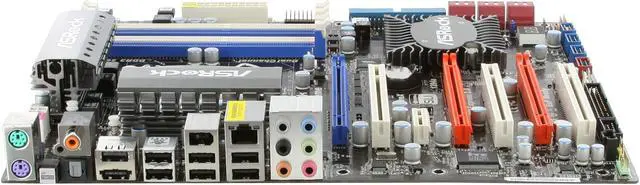

Back I/O Ports 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 7 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 7 x USB 2.0
IEEE 1394 1 x 1394
eSATA 1 x Powered eSATAII/USB Connector
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Onboard 1394 1 x 1394
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Advanced V8 Power Phase Design
Supports Dual Channel DDR3 2600+ (OC)
Supports ATI CrossFireX , 3-Way CrossFireX and Quad CrossFireX
Supports NVIDIA Quad SLI and SLI
3 x PCI Express 2.0 x16 slots, 1 x Powered eSATAII/USB Connector
EuP Ready, Smart Switch Design, Combo Cooler Option (C.C.O.)
7.1 CH, ALC890 Audio Codec, Premium Blu-ray audio support
Supports ASRock Instant Boot, Instant Flash, Smart BIOS, ASRock OC Tuner, Intelligent Energy Saver
1 x TPM header
Additional Information
Date First Available September 15, 2009
