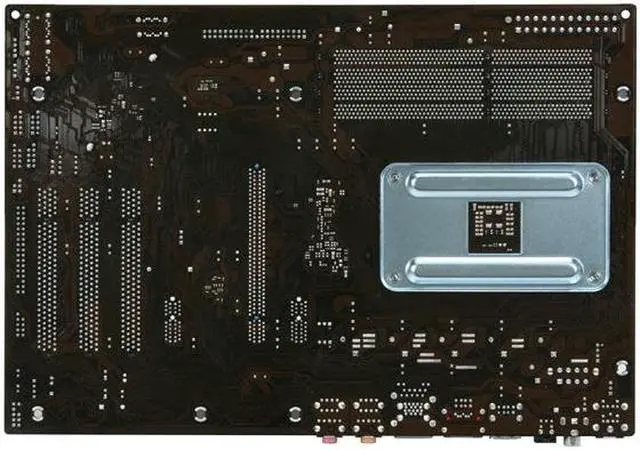

ASRock 770 EXTREME3 AM3 AMD 770 USB 3.0 ATX AMD Motherboard
- AMD 770
- Phenom II / Athlon II / Sempron
- DDR3 1600/1333/1066/800
Specs
Reviews (53)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 770 EXTREME3
| Brand | ASRock |
|---|---|
| Model | 770 EXTREME3 |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 770 |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600/1333/1066/800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| USB 3.0 | 1 x USB 3.0 |
| USB 1.1/2.0 | 5 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.2" |
| Power Pin | 24 Pin |
| Features | Phenom II X6 6-Core CPU Ready ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Supports CPU up to 140W Supports AMD OverDrive with ACC feature (Advanced Clock Calibration) Supports Dual Channel DDR3 1600 2 x SATA3 6.0 Gb/s connectors, 1 x USB 3.0 port, 1 x eSATAII Connector, PCIE Gigabit LAN Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Premium Blu-ray audio support ErP/EuP Ready Free Software: CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial |
|---|
| First Listed on Newegg | April 30, 2010 |
|---|
