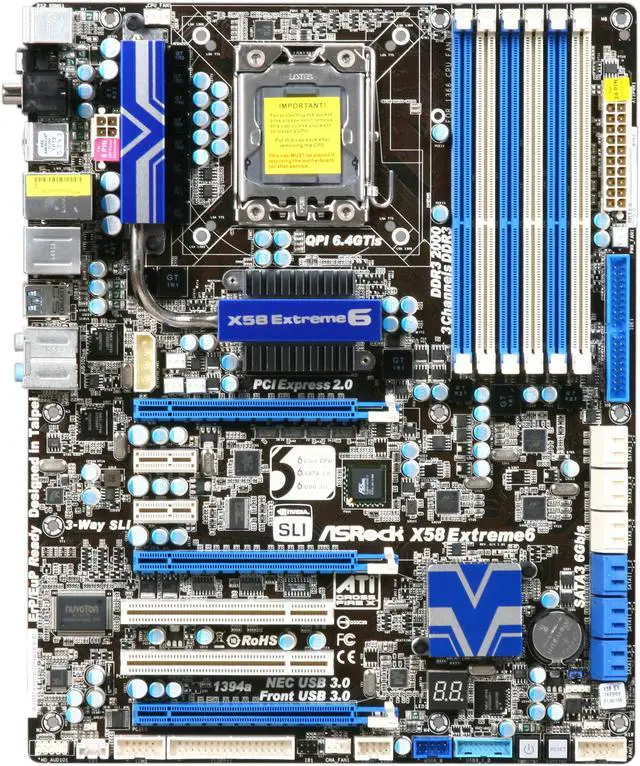

ASRock X58 EXTREME6 LGA 1366 Intel X58 SATA 6Gb/s USB 3.0 ATX Intel Motherboard
Sold and Shipped by
Core i7 (LGA1366)
DDR3 2000(OC)/1866(OC)/1600(OC)/1333(OC)/1066 non-ECC, un-buffered memory; Supports DDR3 ECC, un-buffered memory with Intel Workstation 1S Xeon processors 3500 series
Warranty & Returns
Learn more about the
ASRock X58 EXTREME6
Model Brand ASRock Model X58 EXTREME6 Supported CPU LGA 1366 CPU Type Core i7 (LGA1366) Supported CPU Technologies System Bus up to 6400 MT/s; Intel QuickPath Interconnect Advanced V8 + 2 Power Phase Design Supports Hyper-Threading Technology Supports Untied Overclocking Technology Supports EM64T CPU Chipsets Intel X58 South Bridge Intel ICH10R Memory Number of Memory Slots 6×240pin Memory Standard DDR3 2000(OC)/1866(OC)/1600(OC)/1333(OC)/1066 non-ECC, un-buffered memory; Supports DDR3 ECC, un-buffered memory with Intel Workstation 1S Xeon processors 3500 series Maximum Memory Supported 24GB Triple Channel Expansion Slots PCI Express 2.0 x16 3 x PCI Express 2.0 x16 slots (PCIE1: x16 mode; PCIE4/PCIE5: single at x16 or dual at x8/x8 mode) (Double-wide slot spacing between each PCI-E slot) PCI Express x1 2 x PCI Express x1 PCI Slots 2 x PCI Slots Storage Devices PATA 1 x ATA133 2 Dev. Max 6 x SATA 3Gb/s 2 x SATA3 6.0 Gb/s connectors by Marvell SE9128 4 x SATA3 6.0 Gb/s connectors by Marvell SE9120 (SATA3_6 connector is shared with eSATA3 port) SATA RAID 2 x SATA3 6.0 Gb/s connectors by Marvell SE9128, support RAID (RAID 0, RAID 1 and JBOD) 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10, RAID 5) Onboard Video None Onboard Audio Realtek ALC892 8 Channels Onboard LAN LAN Chipset Realtek 8111E Max LAN Speed 10/100/1000Mbps Rear Panel Ports 2 4 x USB 3.0 USB 1.1/2.0 4 x USB 2.0 IEEE 1394 1 x IEEE 1394 Port eSATA 1 x eSATA3 Connector 1 x Optical, 1 x Coaxial Audio Ports 6 Ports Internal I/O Connectors Onboard USB 2 x USB 3.0 + 2 x USB 2.0 Onboard 1394 1 x IEEE 1394 header Physical Spec Form Factor ATX Dimensions (W x L) 12.0" x 9.6" Power Pin 24 Pin
Features Features ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Six-Core CPU Ready Supports ATI Quad CrossFireX, 3-Way CrossFireX and CrossFireX Supports NVIDIA Quad SLI, 3-Way SLI and SLI Dr. Debug, Smart Swith Design: Power/Reset/Clear CMOS Switch with LED Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA, Good Night LED, Multi-Speed Fan Control, AIWI, APP Charger Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX TruStudio Pro and Premium Blu-ray audio support Free Software: CyberLink DVD Suite - OEM and Trial ErP / EuP Ready
Warranty, Returns, And Additional Information
Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details
Return for refund within: Non-refundable
Return for replacement within: 30 days
This item is covered by Newegg.com's
Replacement Only Return Policy.
