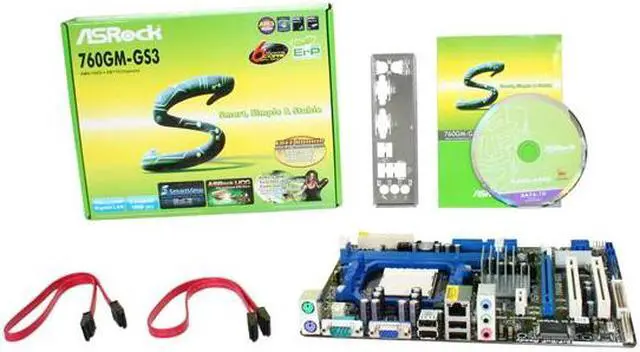

ASRock 760GM-GS3 AM3 AMD 760G + SB710 Micro ATX AMD Motherboard
- AMD 760G
- Phenom II / Athlon II / Sempron 100 Series
- DDR3 1800(OC)/1600(OC)
Specs
Reviews (50)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock 760GM-GS3
| Brand | ASRock |
|---|---|
| Model | 760GM-GS3 |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 760G + SB710 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1800(OC)/1600(OC)/1333/1066/800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | ATI Radeon 3000 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Floppy connector 1 x Print port header CPU/Chassis/Power FAN connector 24 pin ATX power connector 4 pin 12V power connector Front panel audio connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.2" |
| Power Pin | 24 Pin |
| Features | Phenom II X6 6-Core CPU Ready Supports ASRock UCC - Unlock CPU Core Supports Dual Channel DDR3 1800(OC) Integrated AMD Radeon 3000 graphics, DX10 class iGPU, Pixel Shader 4.0 PCIE Gigabit LAN Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies Supports Instant Boot, Instant Flash, OC Tuner, IES, OC DNA, AIWI, APP Charger ErP/EuP Ready Free Software : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial |
|---|
| Date First Available | October 29, 2010 |
|---|
