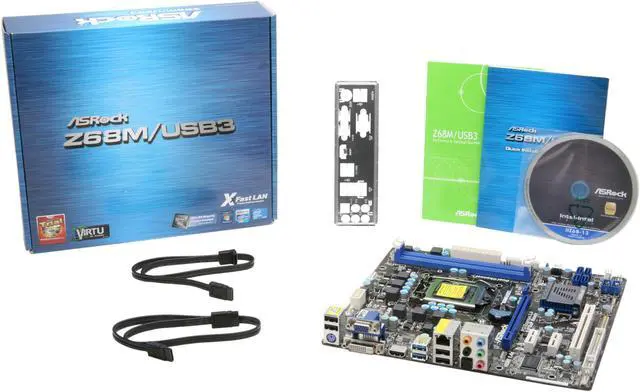

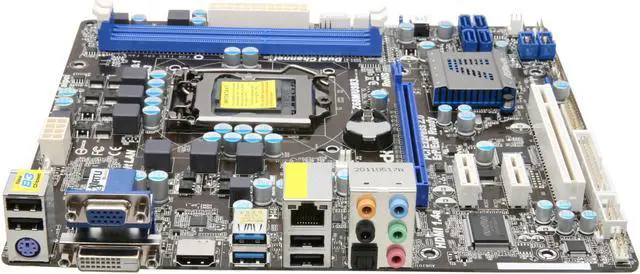

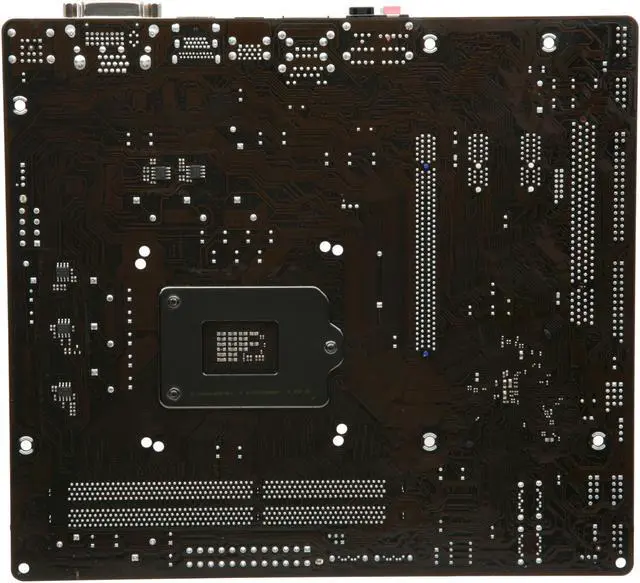

ASRock Z68M/USB3 LGA 1155 Intel Z68 HDMI USB 3.0 Micro ATX Intel Motherboard
- Intel Z68
- Core i7 / i5 / i3 (LGA1155)
- DDR3 2133(OC) / 1866(OC) / 1600 / 1333 / 1066
Specs
Reviews (28)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Z68M/USB3
| Brand | ASRock |
|---|---|
| Model | Z68M/USB3 |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Supported CPU Technologies | Supports Intel Turbo Boost 2.0 Technology Supports Intel K-Series unlocked CPU Supports Hyper-Threading Technology |
| Chipset | Intel Z68 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2133(OC) / 1866(OC) / 1600 / 1333 / 1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Floppy connector 1 x IR header 1 x CIR header 1 x Print Port header 1 x COM port header 1 x HDMI_SPDIF header 1 x Power LED header CPU/Chassis/Power FAN connector 24 pin ATX power connector 8 pin 12V power connector Front panel audio connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |
| Power Pin | 24 Pin |
| Features | 100% All Solid Capacitor Design Supports Intel HD Graphics Built-in Visuals Multi VGA Output : D-Sub, DVI-D and HDMI Support Intel Smart Response, Lucid Virtu Switchable Graphics Supports ASRock XFast USB, XFast LAN Technologies Supports graphical UEFI, ASRock Extreme Tuning Utility (AXTU) Combo Cooler Option (C.C.O.) 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite |
|---|
| First Listed on Newegg | August 18, 2011 |
|---|
