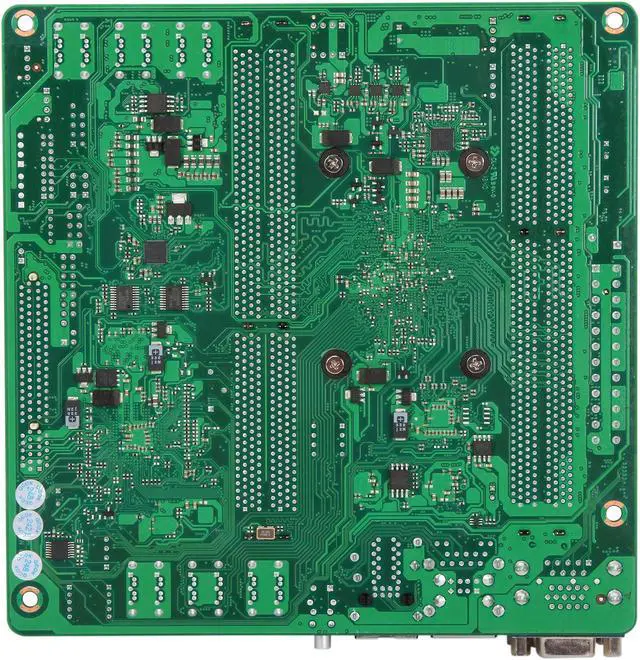

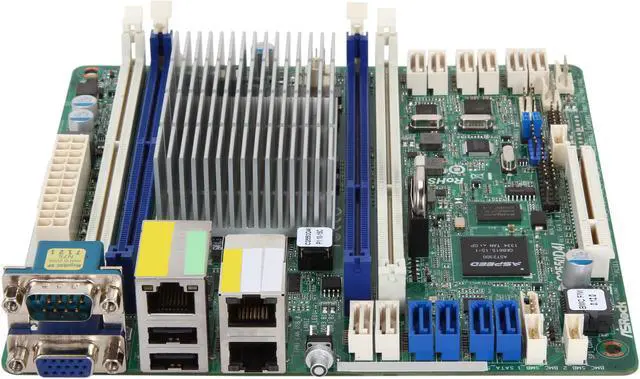

AsRock Rack C2550D4I Mini ITX Server Motherboard FCBGA1283 SOC Supports DDR3 1600 / 1333 ECC / non-ECC Unbuffered UDIMM

OPEN BOX Product Type
  • Intel Avoton C2550 Quad-Core Processor
  • DDR3 1600 / 1333 Dual-channel Max. 64GB
  • 2 x SATA3 6.0 Gbps, 4 x SATA2 3.0 Gbps by C2550
The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the ASRock Rack C2550D4I

Model
Brand AsRock Rack
Model C2550D4I
Supported CPU
CPU Socket Type FCBGA1283 SOC
CPU Type Intel Quad-Core Avoton C2550 Processor
Memory
Number of DDR3 Slots 4 x 240pin
DDR3 Standard Supports DDR3 1600 / 1333 ECC / non-ECC Unbuffered UDIMM
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x8 1 x PCIe 2.0 x8 slot (x8 mode)
Storage Devices
SATA 4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
Additional SATA Marvell SE9220: 2 x SATA3 6.0 Gb/s
Marvell SE9230: 4 x SATA3 6.0 Gb/s
Onboard Video
Onboard Video Chipset Aspeed AST2300
Onboard LAN
LAN Chipset Intel I210
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel I210
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
COM 1
Video Ports 1 x D-Sub
RJ45 2 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
LAN Ports with LED (ACT / LINK LED and SPEED LED)
USB 1.1/2.0 2 x USB 2.0
Features
Features Intel Avoton C2550 Quad-Core Processor

DDR3 1600 / 1333 Dual-channel Max. 64GB UDIMM

2 x SATA3 6.0 Gbps, 4 x SATA2 3.0 Gbps by C2550

4 x SATA3 6.0Gb/s by Marvell SE9230, 2 x SATA3 6.0Gb/s by Marvell SE9172

Dual Intel i210 Gigabit LAN ports (with Teaming function)

3 x USB 2.0 ports (2 x rear ports + 1 x via headers or 1 x rear ports + 2 x via headers controlled by USB_SEL1 and USB_SEL2 jumper)

1 x PCI-E x8 slot
Dimensions
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Additional Information
First Listed on Newegg May 12, 2014
