Model

Brand

ASRock

Model

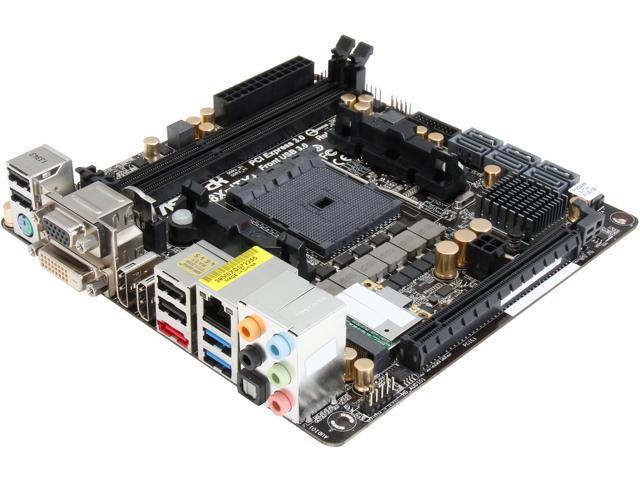

FM2A88X-ITX+

Supported CPU

CPU Socket Type

FM2+ / FM2

CPU Type

Athlon/A- Series (FM2+)

Chipsets

Chipset

AMD A88X (Bolton D4)

Memory

Number of Memory Slots

2×240pin

Memory Standard

DDR3 2400+(OC)/ 2133/ 1866/ 1600/ 1333/ 1066

Maximum Memory Supported

32GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

Mini Card Slots

1 x Half/Full (mSATA) mini-PCI Express Slot

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

SATA RAID

0/1/5/10

Onboard Video

Onboard Video Chipset

Integrated AMD Radeon R7/R5 Series Graphics in A-series APU
DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU
Max. shared memory 2GB
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz
Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports Blu-ray Stereoscopic 3D with HDMI Port
Supports AMD Steady Video 2.0: New video post processing capability for automatic jitter reduction on home/online video
Supports HDCP with DVI-D and HDMI Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Only FM2+ APU can support up to 4096x2160 resolution display via HDMI port.

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Qualcomm Atheros AR8171

Max LAN Speed

10/100/1000Mbps

Wireless LAN

WiFi IEEE 802.11 a / b / g / n

Bluetooth

Bluetooth 4.0 Class II

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x D-Sub
1 x DVI-D

HDMI

1 x HDMI-Out
1 x HDMI-In

USB 3.0

2 x USB 3.0

USB 1.1/2.0

4 x USB 2.0

eSATA

1 x eSATA

S/PDIF Out

1 x Optical

Audio Ports

5 Ports

Internal I/O Connectors

Onboard USB

2 x USB 3.0 + 4 x USB 2.0

Other Connectors

1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x 24-pin ATX Power Connector
1 x 4-pin 12V Power Connector
1 x Front Panel Audio Connector

Physical Spec

Form Factor

Mini ITX

Power Pin

24 Pin

Features

Features

A-Style
- ASRock Cloud
- HDMI-In

BIOS
- 64MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- DRAM, VDDP, VDDR Voltage multi-adjustment

Unique Feature
- ASRock A-Tuning
- ASRock APP Shop
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock X-Boost
- ASRock Restart to UEFI
- ASRock USB Key
- ASRock FAN-Tastic Tuning
- Hybrid Booster: ASRock U-COP

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial)

Hardware Monitor
- CPU temperature sensing
- Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS
- Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
* Carrizo FM2r2 processor supports Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
