Model

Brand

ASRock

Series

ASRock Fatal1ty Gaming

Model

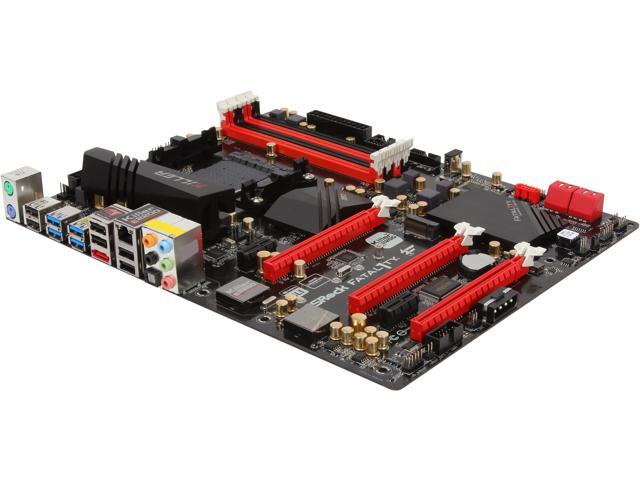

Fatal1ty 990FX Killer

Supported CPU

CPU Socket Type

AM3+/AM3

CPU Type

AM3+ processors
AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron

FSB

2600 MHz

Chipsets

Chipset

AMD 990FX + AMD SB950

South Bridge

AMD SB950

Memory

Number of Memory Slots

4×240pin

Memory Standard

DDR3 2450*(O.C.)/ 2100*/ 1600/ 1333/ 1066

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 2.0 x16

3 x PCI Express 2.0 x16 Slots (PCIE2/PCIE3 @ x16 mode; PCIE5 @ x4 mode)

PCI Express x1

2 x PCI Express 2.0 x1 Slots

Storage Devices

SATA 6Gb/s

5 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug

M.2

1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x2 (10Gb/s)

* M.2_SSD (NGFF) Socket 3 is shared with the eSATA3 connector.

SATA RAID

0/1/0+1/5/JBOD

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Qualcomm Atheros Killer E2200 Series

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port

RJ45

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

USB 3.0

4 x USB 3.0 Ports (ASMedia Hub)

USB 1.1/2.0

5 x USB 2.0 Ports
1 x Fatal1ty Mouse Port (USB 2.0)

eSATA

1 x eSATA 6Gb/s

S/PDIF Out

1 x Optical

Audio Ports

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Internal I/O Connectors

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x Vertical Type A USB 3.0
1 x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports)

Other Connectors

1 x IR Header
1 x COM Port Header
1 x TPM Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x SLI/XFire Power Connector
1 x Front Panel Audio Connector
1 x SPDIF Out Connector

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"

Power Pin

24 Pin

Features

Features

A-Style
- ASRock Cloud
- Purity Sound

BIOS
- 32MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- CPU, DRAM, NB, HT, CPU VDDA, PCIE VDDA, CPU NB Voltage multi-adjustment

Unique Feature
- F-Stream
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock APP Shop
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- ASRock Fast Boot
- ASRock X-Boost
- ASRock Restart to UEFI
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Turbo 50 / Turbo 60 Overclocking
- Good Night LED

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), XSplit, Killer Network Manager

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Voltage

OS - Microsoft Windows 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
