Item#: N82E16813157512

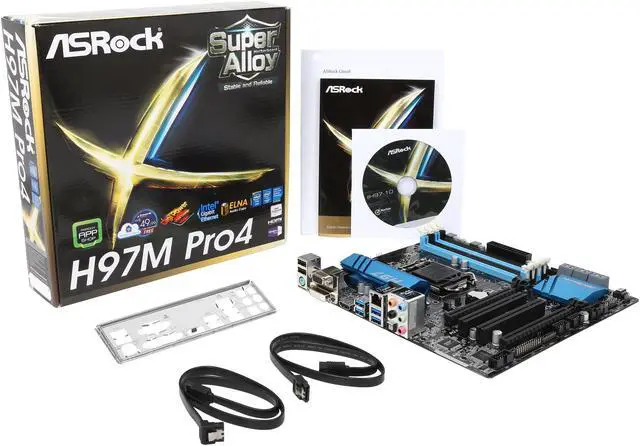

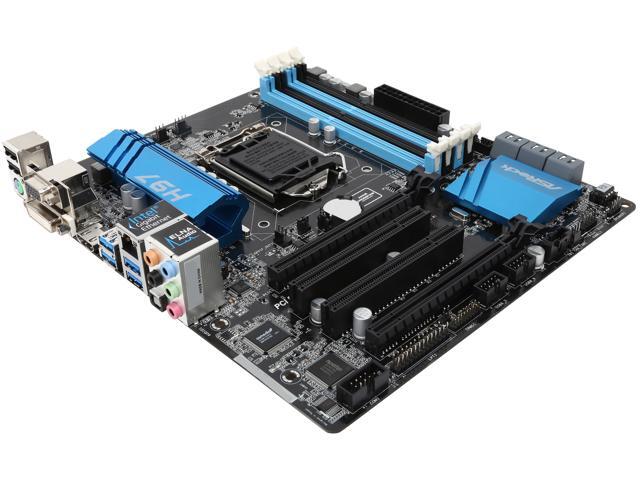

ASRock H97M Pro4 LGA 1150 Intel H97 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Sold and Shipped by Newegg

  • Intel H97
  • Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
  • DDR3/DDR3L 1600/ 1333/ 1066

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
general information

The ASRock H97M Pro4 is built with high-end components, and provides the industry's highest level of features and technologies. It offers you more than enough for an exceptional experience in every aspect.

Features at a Glance

  • ASRock Super Alloy (Premium alloy choke, NexFET MOSFET & Sapphire black PCB)
  • Solid Capacitor design, Digi Power
  • Supports 5th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
  • Supports New 4th and 4th Generation Intel Xeon/Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
  • Supports New 4th and 4th Generation Intel Xeon/Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
  • Supports Dual Channel DDR3/DDR3L 1600
  • Supports AMD Quad CrossFireX and CrossFireX
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCI
  • Graphics Output Options: D-Sub, DVI-D, HDMI
  • Supports Triple Monitor
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • Intel Gigabit LAN
  • 6 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
  • 1 Printer Port Header, 1 COM Port Header, 1 Thunderbolt AIC Connector
  • Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI
FEATURES

general information

Premium Alloy Choke

The new generation alloy chokes effectively increase up to 90% saturation current, and features a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.

viewing viewing

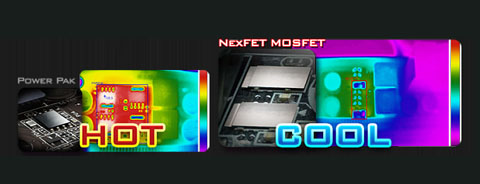

NexFET MOSFET for Memory Power

The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 mO, delivering higher efficiency and lower temperature.

general information

general information

NexFET MOSFETs in memory areas use a special design for protecting them from electrostatic discharge and offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs.

general information

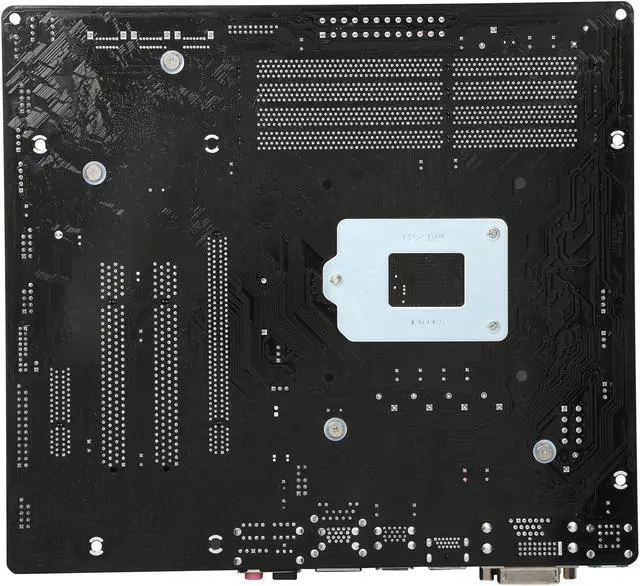

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

general information

general information

Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

Orbweb ME*- Your Personal Cloud, Easy and Always Connects

general information

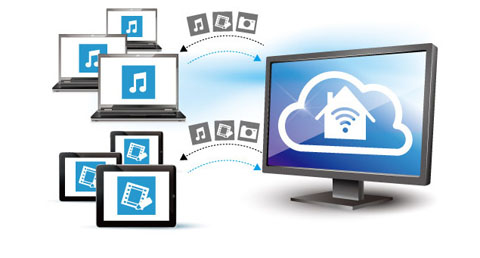

ASRock Cloud technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously. ASRock offers a one-year subscription to Orbweb.ME Professional version, a personal cloud service. It allows you to get connected with your PC's files, music, photos, and video clips remotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function is also available. Now, download Orbweb Me Host, enter ASRock Cloud promotion code "ASR2014B", ASRock's users are allowed to enjoy all services above.

* Orbweb ME is provided by Kloudian Systems Inc. Restriction may apply and the offer is subject to change, termination or discontinuation by Kloudian Systems Inc. without prior notice.

Personal Cloud for Everyone

Cloud service should be simple and personal. Don't take time to upload the files to the public cloud again. Stop spending money on setting up another NAS device you don't know. Orbweb ME's file browser is your solution to zero adaption, managing your folders and files in the cloud. Accessing and exchanging files instantly among all of your PC and storages. All your folders and files are sitting just where you know they are.

general information

Media Library and Streaming

Orbweb Personal's media library takes care of your media content. Organize all your photos, videos and music across your PCs and online storages. Diverse, intuitive and smart sorting help finding desired movies in few clicks. Progressive streaming lets you enjoy your music collection almost no download time. Web browser based and mobile app portal keep you connected in any device any time.

general information

Access File Explorer from Multiple Devices

Orbweb ME allows you to access your own personal File Explorer from multiple devices, bringing your tablets, laptops and PC together. Forgot an important file in your computer at home which you need for the next meeting? Another hard day hiding in the office bathroom, missing your massive collection of funny videos and music clips? You can get it all by connecting your tablets or laptops to access File Explorer and immerse into the paradise in few seconds.

general information

Remote Desktop Anywhere

Laying in the bedroom or sitting in the office, tablet in your hands just becomes smarter. Pick up any work sheet left in office or start any application from you home PC. Orbweb ME's remote desktop not only mobilized your PC but also empower your tablet. No matter the device, No matter the location, Orbweb ME always keeps your PC by you.

* Remote Desktop comes with the Ultimate package which is only free for the first month.

general information

ASRock APP Shop

ASRock APP Shop is designed for your convenience. ASRock provides various apps and supports software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.

general information

general information

general information

SRock App Charger

Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.

general information

XFast LAN

ASRock is rolling out super-efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.

general information

ASRock XFast RAM

ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

Intel Small Business Advantage 2.0

general information

Intel SBA 2.0 with Next Generation Intel Core is a unique, out-of-the-box solution that delivers: an easy-to-use interface, relevant security and productivity applications, and free & easy customization.

Security

  • Software Monitor

    Software Monitor helps keep critical security software running by monitoring it at the hardware level and alerting the business if there has been an attack.

  • Data Backup & Restore

    Data Backup & Restore provides reliable after-hours backup of critical data using the local maintenance timer to remotely power on the PC.

  • USB Blocker

    USB Blocker lets businesses control access to their infrastructure, preventing unauthorized USB devices or file imports or exports on company PCs.

Productivity

  • PC Health Center

    PC Health Center can schedule and perform PC maintenance tasks after hours so as not to interrupt employees' work. It works even if the computer is powered down, as long as it is plugged in.

  • Energy Saver

    With Energy Saver, businesses can save energy by scheduling PCs to power-down at the end of the day and turn on before the work day begins -ready for employees as they arrive in the morning.

Thunderbolt 2 Ready

This motherboard has been certified with an ASUS ThunderboltEX II and is compatible with other third party Thunderbolt devices as well. With the Thunderbolt 2 Add-in-Card, it may support up to six daisy chained Thunderbolt devices up to 20 Gbps.

general information

ASRock Thunderbolt Technology Expert

  • Up to 20 Gbps: The fastest connection to your PC
  • Bi-directional data transfer with PCI Express and DisplayPort
  • Daisy Chain: Up to 6 Thunderbolt devices
  • Large, high-resolution displays (Supports 4K)
  • viewing viewing
    general information

    Digi Power -More Precise, More Efficient

    Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

    general information

    Intel LAN

    Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users.

    general information

    Triple Monitor

    Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

    general information

    A-Tuning

    A-Tuning is ASRock's multi-purpose software suite with a new interface, more new features and improved utilities, including XFast RAM and a whole lot more.

    general information

    USB Key

    In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

    general information

    Restart to UEFI

    Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

    general information

    ASRock OMG (Online Management Guard)

    Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

    general information

    UEFI Tech Service

    Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

    general information

    Dehumidifier

    Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

    general information

    Easy Driver Installer

    For users that don’t have an optical disk drive to install the drivers from ASrock support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required.

    general information

    HDMI-ready

    This motherboard supports HDMI, which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.


    Learn more about the ASRock H97M Pro4

    Warranty, Returns, And Additional Information
    • Warranty
    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years
    • Read full details

    Customer Reviews of the ASRock H97M Pro4

    Do you own this product? Write a Review

    ICON Loading...

    Filter Results

    Go
    • Aaron H.
    • 2/8/2016 9:53:26 PM
    • Ownership: 1 day to 1 week
    • Verified Owner

    1 out of 5 eggsDOA

    Pros: None yet.

    Cons: Board arrived with at least one bent pin. I took the protective cap off and examined the cpu slot and saw this interesting gap on the right hand side. Don't know how many were bent. Took some pictures and filed the RMA. Just waiting on Newegg's response/replacement now. Hopefully #2 shows up and performs. If it does I'll be updating this.

    Manufacturer Response:

    Dear Aaron,

    We sincerely apologize for any inconvenience this may have caused you. ASRock mainboards are fully tested to assure the quality.
    The CPU socket has been covered with protection CAP to avoid damage the pins.
    For more information about CPU installation guide, please visit at link " http://www.asrock.com/Support/QA/TSDQA-103.pdf "

    If you have any technical issues or warranty questions, please contact our Tech Support at http://www.ASRock.com/Support/tsd.asp

    Thank you

    ASRock SUPPORT
    Tech Support Email: http://www.ASRock.com/Support/tsd.asp

    Did you find this review helpful? Yes No

    • Vedran S.
    • 2/6/2016 7:58:24 PM
    • Ownership: 1 day to 1 week
    • Verified Owner

    5 out of 5 eggsGreat Motherboard

    Pros: This is my second ASRock branded motherboard and they are just built rock solid. I had different brands over the years but none seem to hold up as well as ASRock branded ones. Easy set up, its crossfire ready, plenty of fan connectors and just everything you need for a micro atx build. Only other thing that would make it even better would be on board wifi, but thats nothing to dock it on, since i am using it with LAN cable anyway.

    Cons: None at all

    Other Thoughts: My first board was a Z68 board that i still have for my 2700k i7, still works like a champ as well. This board is nicely laid out and is one good solid motherboard.

    Did you find this review helpful? Yes No

    • Christian I.
    • 2/6/2016 12:37:14 PM
    • Ownership: 1 month to 1 year
    • Verified Owner

    5 out of 5 eggsTough to beat for the $$$

    Pros: Cheap, works well with Core i CPUs and Stock Heat Sink/ Fans. Great for building business PCs with no need for lots of extra add-in cards, large fans, etc.

    Cons: The Horizontally mounted SATA ports can be challenging if you don't plan for that when building.

    Did you find this review helpful? Yes No

    • Chad W.
    • 2/4/2016 1:46:02 PM
    • Ownership: 1 month to 1 year
    • Verified Owner

    5 out of 5 eggsGreat potential

    Pros: - Excellent price
    - Beautiful look
    - 7.1 sound
    - Plenty of USB 3 ports
    - Gen 9 chipset
    - 4 memory slots on a ATXm
    - boots easily from flash drive

    Cons: Poorly labeled pins

    Other Thoughts: there seems to be some controversy over whether this board can overclock or not. I bought this with the assumption that it can based on older reviews but apparently there have been recent changes in the Asrock bios drivers that have axed the overclock feature to provide additional stability. I'm sure there's a hack but I'm just going to leave it alone.

    Did you find this review helpful? Yes No

    • GARNET A.
    • 1/31/2016 8:19:15 AM
    • Ownership: 1 day to 1 week
    • Verified Owner

    5 out of 5 eggsGreat product!

    Pros: Very easy to install and set up. The on board graphics work great to get you started out for just messing around. All around a really good board.

    Cons: None.

    Did you find this review helpful? Yes No

    • Scott M.
    • 1/24/2016 9:27:47 AM
    • Ownership: 1 week to 1 month
    • Verified Owner

    5 out of 5 eggsGreat motherboard for the price!

    Pros: I've always had great luck with ASRock, and without surprise it has been performing well. I use it as a pfsense board, it constantly runs and never shuts off. Great features, and a very good board for a budget or low end build such as I use it for.

    Cons: None

    Other Thoughts: I would completely recommend this board. No issues, runs great!

    Did you find this review helpful? Yes No

    • Ari S.
    • 1/24/2016 5:37:06 AM
    • Ownership: 1 month to 1 year
    • Verified Owner

    5 out of 5 eggsSolid board for the price

    Pros: good price to features ratio

    Cons: a few headers are hard to reach. fan control is sometimes iffy

    Other Thoughts: I bought this for a budget build. I decided that the best way to produce less e-waste is to reuse as much of my old PC as possible. In this case it was an ~7 year old Dell Inspiron 530 with a core 2 quad q6600. I decided to use an i3 4170 because it met all my needs and is very energy efficient. I just needed a decent compatible micro atx board and this fit the bill with hdmi output, 6 SATA ports and USB 3. Reusing the dell case was fine except i had to cut out the space for the backplate. PS and case were fully compatible and the only thing that would not reach was the front audio header. I don't use it anyway. For the front USB 2 connection I was able to use 2 of four, and added a 3.5 usb 3 panel.

    It works very well, I was able to transfer my RAID 1 array over fairly easily and do a clean install of windows onto a new SSD for the primary drive. BIOS is easy to use and configure and some of the ASrock utilities are actually fairly useful.

    0 out of 1 people found this review helpful. Did you? Yes No

    • Anonymous
    • 1/22/2016 6:21:53 PM

    4 out of 5 eggsGreat motherboard for its price.

    Pros: Very nice look, looks great inside an open/clear case if you're going for a blue gaming set up (blue LEDs, blue case, blue keyboard, mouse, etc), very easy to install, fits nicely in all of the cases ive used.

    Cons: Looks are a little crammed once you install the everything, might just be my horrible cable management but oh well, not that big of a deal. still a great board

    Other Thoughts: I would happily purchase this motherboard again for a small case build, im definitely going to buy the full sized version of this when i do another build.

    Did you find this review helpful? Yes No

    • David R.
    • 1/22/2016 11:18:36 AM
    • Ownership: 1 day to 1 week
    • Verified Owner

    5 out of 5 eggsGood Board

    Pros: Well, the board didn't come with any mounting hardware. No problem. I had all nine screws ready to mount it and....Only Four screws! Wow! The is a mini board compared to others. However, it works great, everything booted up fine, no glitches. Smooth install!

    Cons: Its kinda hard for cable management when you have the HD Audio head way over there! What was the intent?! Anywho, that is one of the few visible wires. Also, you'll have to buy your own case speaker. This board comes with what is pictured; the board and two SATA cables.

    Other Thoughts: I would definitely recommend this board. Excellent price, easy to manage, UEFI is a big plus

    Did you find this review helpful? Yes No

    • Rich B.
    • 1/22/2016 12:43:23 AM
    • Ownership: 1 month to 1 year
    • Verified Owner

    1 out of 5 eggsArrived damaged BEWARE

    Pros: none so far

    Cons: Arrived with bent CPU socket pins.

    I didn't notice the bent pins until after I had removed the UPC for the short time-restricted rebate offer, so newegg refuses to replace the item.

    ASRock informs me through email that "more than a few bent pins will void the warranty" which I'm betting actually translates to "We're going to call the warranty void when we see the item and will charge you again one way or another".

    I've been doing some reading, and I've found an alarming number of reports from people receiving a motherboard with bent pins. Some people are reporting having sent in their faulty motherboard to ASRock and then ASRock bending the pins themselves then claiming it arrived as such, then voiding the warranty so as not to have to replace their faulty hardware.

    Other Thoughts: Hopefully ASRock will fix this, we'll see. I'll update when I find out if I will get the item I paid for.

    Manufacturer Response:

    Dear Rich,

    We sincerely apologize for any inconvenience this may have caused you.
    ASRock mainboards are fully tested to assure the quality.
    The CPU socket has been covered with protection CAP to avoid damage the pins.
    For more information about CPU installation guide, please visit at link " http://www.asrock.com/Support/QA/TSDQA-103.pdf ".

    If you have any technical issues or warranty questions, please contact our Tech Support at http://www.ASRock.com/Support/tsd.asp

    Thank you

    ASRock SUPPORT
    Tech Support Email: http://www.ASRock.com/Support/tsd.asp

    1 out of 1 people found this review helpful. Did you? Yes No
