Question 1

Does this motherboard come with any SATA cables?

Accepted Answer

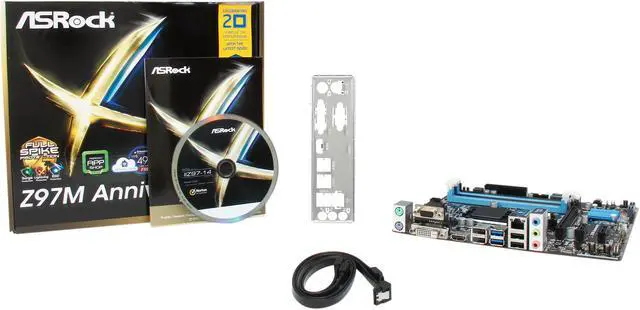

The mother board comes with two sata cables.

Question 2

Will this board work with Haswell Refresh CPU out-of-the-box, no flash needed?

Accepted Answer

According to ASROCK's informational page, YES, this board will support Haswell Refresh CPU's out of the box.  Please take a look yourself by going to ASROCK's website and looking up the specific motherboard.

Question 3

What is the actual size of the board? it just says micro atx.

Accepted Answer

Hrmm, well, I think Micro ATX about covers the size. The only thing you really need to make sure of is that your case can fit a Micro ATX board - That IS how they measure the size, although I suppose boards can vary a very small amount, generally speaking, they're going to be very similar.

Question 4

Why would anyone waist their money buying this?
My first build was asrock and they had the ram voltage set too high.

Accepted Answer

I bought it for the price, the form factor, and the three video ports on the io. Since i am not using a graphics card (casual build for a friend), and since he wanted to use 2 monitors, and possibly 3 in the future, i found this to be a very nice mobo for the price. the voltage settings looked pretty good to me (1.5v for ram, exactly the ram voltage necessary), except for when you enable the pentium anniversary "boost". i disabled that and manually overclocked the pentium g3258 after seeing that it sets the cpu voltage to a crazy 1.42v just for a 4.2 ghz overclock! thus, my only advice is to manually set everything. not a bad mobo at all :)

Question 5

Can you overclock an Intel i5 4690k on this motherboard?

Accepted Answer

Yes, so long as you have enough cooling. Whether that be a high grade air cooler or a liquid cooler, keeping the temperature down is your main concern for overclocking.

But I managed to clock my i54690k to 4.4ghz on this board with an all in one liquid cooler to keep the temperature down. It is very simple to do with this board, as there are preset overclock settings that you can select in the bios.

Question 6

Is the Z97M Ann LGA 1150 Intel Z79 a quad core 3.0 GHz(Per Core)?

Accepted Answer

This is a Z97 micro ATX motherboard designed for the Haswell Refresh line of processors, such as the Intel G3258, i5 4690k and i7 4790k. However, it is compatible with any LGA 1150 processor, which is the Haswell and Haswell Refresh line. The motherboard itself does not have a clock rate. The processor, which you have to install in the motherboard, does. The CPU (a.k.a. the processor) has a specified number of cores and threads, and a specified clock rate per core, depending on the model.

Brand	ASRock
Model	Z97M Anniversary

CPU Socket Type	LGA 1150
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Number of Memory Slots	4x240pin
Memory Standard	DDR3 3100+(OC)/2933(OC)/.../1600
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCI Express x1

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/5/10

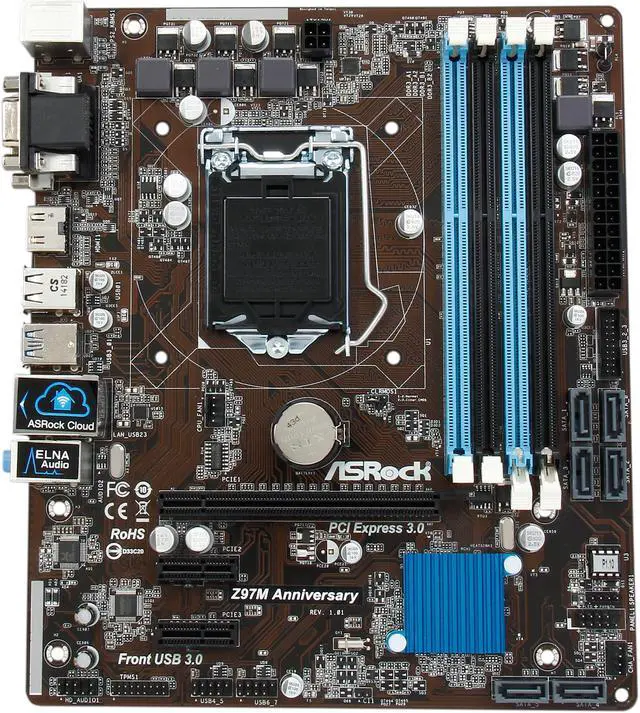

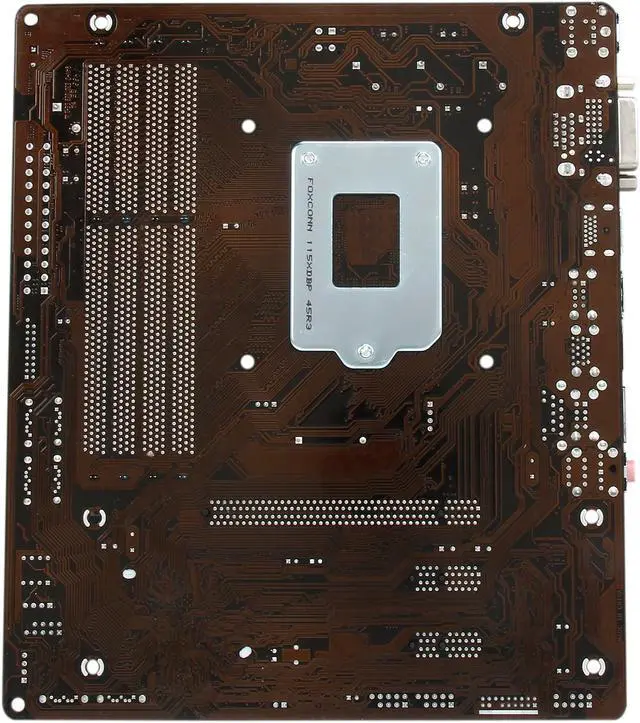

ASRock Z97M Anniversary LGA 1150 Intel Z97 HDMI USB 3.0 Micro ATX Intel Motherboard

Learn more about the ASRock Z97M Anniversary

Customer Reviews of the ASRock Z97M Anniversary

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

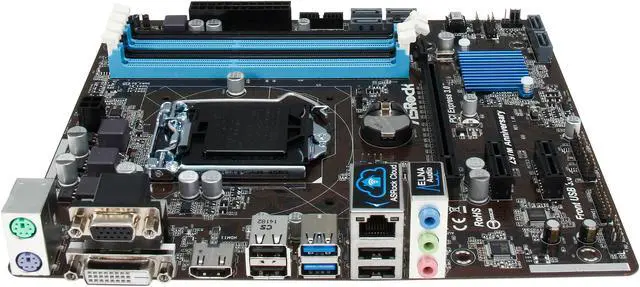

Back I/O Ports	1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.0	4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports	3 Ports

Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors	1 x Chassis Intrusion Header 1 x TPM Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	5.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111GR
Max LAN Speed	1Gbps

Physical Spec
Form Factor	Micro ATX
Power Pin	24 Pin

Item#: N82E16813157529
