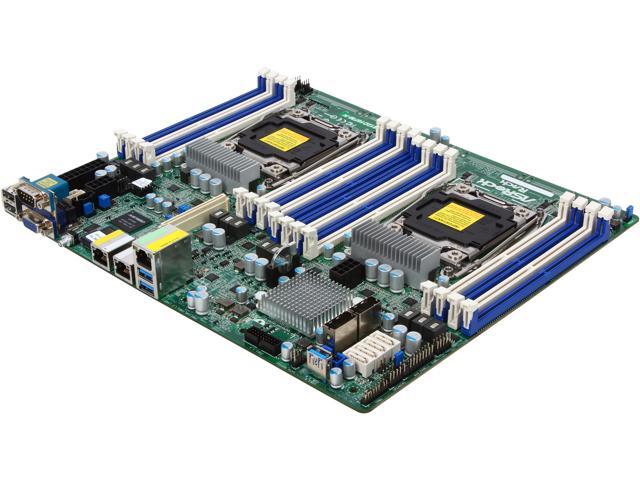

ASRock EP2C612D16FM-N SSI CEB Server Motherboard Dual Socket LGA 2011 R3

(1)

Write a Review

Sold and Shipped by Newegg

Dual Socket LGA 2011 R3
Intel C612
Support Intel Xeon processor E5-2600 v3
Additional Mezzanine card to support 2 x 10G ethernet or 2 x GLAN

Overview
Specifications
Warranty & Returns
Reviews
Q&A

ASRock Server Motherboard EP2C612D16FM-N

Features

CEB 12 x 10.5"
Dual Socket LGA 2011 R3 supports Intel Xeon Processor E5-2600/4600 v3 series
Supports Quad Channel DDR4 2133/1866/1600 ECC DIMM, RDIMM, NVDIMM and LRDIMM, 16 x DIMM slots
Supports 10 x SATA3 6.0Gbps (8 from 2 mini SAS connector + 2 x SATA3 connector), 2 x SATA3 by Marvell 9172

Supports Front Right Angle 2 x16 from each CPU to Midplane, total 4 x16 (need to bundle with an ASRock Rack system board)
Integrated IPMI 2.0 and KVM with Dedicated LAN
Supports Intel Dual GLAN (Intel i210) and additional Mezzanine card to support 2 x 10G Ethernet or 2 x GLAN

Specifications

Motherboard Physical Stats

Form Factor	SSI CEB
Dimensions	12 x 10.5" (30.5 x 26.7cm)

Processor System

CPU	Intel® Xeon processor E5-2600/4600 v3 series
Socket	Dual Socket LGA 2011 R3
Chipset	Intel® C612

System Memory

Capacity	16 DIMM slots
Type	Quad Channel memory technology Supports 2133/1866/1600 ECC DIMM,RDIMM,NVDIMM and LRDIMM
Voltage	1.2V

Expansion Slots

Additional PCIe switch	NA

Storage

SATA Controller	Intel® C612: 10 x SATA3 6.0Gbps (8 from 2 mini SAS connector + 2x SATA3 connector)
Additional Storage Controller	Marvell 9172: 2 x SATA3 6Gbps

Ethernet

Interface	1000 / 100 / 10Mbps
LAN Controller	2 x RJ45 by Intel® i210 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE LAN1 Supports NCSI
Mezzanine	x8 Mezzanine slot supports mezzanine card with 2 x10G Ethernet or 2 xGLAN (2 x 10G Base-T by Intel® X540 or 2 x SFP+ by Intel® 82599ES or 2 x GLAN by Intel® i350 ) Supports NCSI

Management

BMC Controller	ASPEED AST2400
IPMI Dedicated LAN	1 x Realtek RTL8211E for dedicated management GLAN
Features	Watch Dog NMI

Graphics

Controller	ASPEED AST2400
VRAM	DDR3 16MB

Rear Panel I/O

VGA Ports	1 x D-Sub
USB 2.0 Ports	2
USB 3.0 Ports	2
LAN Ports	2 + 1 (IPMI) LAN ports (RJ45) LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Ports	1 (COM1)
UID Button / UID LED	1

Internal Connector

Auxiliary Panel Header	1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header	1
IPMB Header	1
Fan Header	2 x CPU Fans, 6 x system Fans (4-pin)
ATX Power	1 (24-pin) + 2 (8-pin)
USB 3.0 Headers	1 ( support 2 USB 3.0)
USB 2.0 Headers	1 ( support 2 USB 2.0)
Type A USB 3.0 Ports	1
Front Panel	1
Mezzanine	1 (from CPU 1)

System BIOS

BIOS Type	128Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash

Hardware Monitor

Temperature	CPU Temperature Sensing System Temperature Sensing Card Side Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: CPU1/2, VCCM AB/CD/EF/GH, +1.50 PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB

Supported Operating Systems

Operating System	Microsoft Windows Server 2008 R2 SP1 (64-Bit) Server 2012 (64-Bit) Server 2012 R2 (64-Bit) Linux RedHat Enterprise Linux Server 5.9/6.4 (32- / 64-Bit) CentOS 5.9 / 6.4 (32- / 64-Bit) SUSE Enterprise Linux Server 11 SP3 (32- / 64-Bit) FreeBSD 9.1 (32- / 64-Bit) Fedora core 19 (64-Bit) Ubuntu 12.04.2 (64-Bit) / 12.10 (64-Bit) Virtual VMWare ESXi 5.5 (not supported for Marvell 9172)

Operating System

Microsoft Windows

Server 2008 R2 SP1 (64-Bit)
Server 2012 (64-Bit)
Server 2012 R2 (64-Bit)

Linux

RedHat Enterprise Linux Server 5.9/6.4 (32- / 64-Bit)
CentOS 5.9 / 6.4 (32- / 64-Bit)
SUSE Enterprise Linux Server 11 SP3 (32- / 64-Bit)
FreeBSD 9.1 (32- / 64-Bit)
Fedora core 19 (64-Bit)
Ubuntu 12.04.2 (64-Bit) / 12.10 (64-Bit)

Virtual

VMWare ESXi 5.5 (not supported for Marvell 9172)

Environment

Temperature	Operation temperature: 14 - 95°F (10 - 35°C) / Non operation temperature: -40 - 158°F (-40 - 70°C)

Learn more about the ASRock Rack EP2C612D16FM-N

Model

Brand: ASRock

Model: EP2C612D16FM-N

Supported CPU

CPU Socket Type: Dual Socket LGA 2011 R3

CPU Type: Dual Intel Xeon processor E5-2600/4600 v3 series

Chipsets

Other Chipset: Intel C612

Memory

ECC Supported: Yes

Storage Devices

SATA: 10 x SATA3 6.0 Gb/s (8 from 2 mini SAS connector + 2x SATA3 connector)

Additional RAID Controller: Marvell 9172: 2 x SATA3 6Gbps

SAS: LSI 2308: 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector)

Onboard Video

Onboard Video Chipset: Aspeed AST2400

Onboard LAN

LAN Speed: 10/100/1000Mbps

Max LAN Speed: Dual 10/100/1000Mbps

Rear Panel Ports

COM: 1

Video Ports: D-Sub

USB 1.1/2.0: 2 x USB 2.0

USB 3.0: 2 x USB 3.0

Features

Features: Dual Socket LGA 2011 R3 support Intel Xeon processor E5-2600/4600 v3 series
Supports Quad Channel DDR4 2133/1866/1600 ECC DIMM,RDIMM,NVDIMM and LRDIMM ,16 x DIMM slots
Supports 10 x SATA3 6.0 Gb/s (8 from 2 mini SAS connector + 2x SATA3 connector), 2 x SATA3 by Marvell 9172
Supports Front Right Angle 2 x16 from each CPU to Midplane, total 4 x16 (need to bundle with ASRock Rack system board)
Integrated IPMI 2.0 and KVM with Dedicated LAN
Supports Intel Dual GLAN (Intel i210) and additional Mezzanine card to support 2 x 10G ethernet or 2 x GLAN

Dimensions

Form Factor: SSI CEB

Dimensions (W x L): 12" x 10.5"

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Website: http://www.asrockrack.com/index.asp|
Support Phone: 1-909-590-8308
Support Email: server_tsd@asrockamerica.com|
Support Website|
View other products from ASRock Rack

Customer Reviews of the ASRock Rack EP2C612D16FM-N

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (1) 0% (0) 0% (0) 0% (0) 100% (1) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
Brad M. 10/18/2015 6:42:31 AM Ownership: 4/5 Verified Owner	Rating: 2/5IPMI is dead This review is from: ASRock EP2C612D16FM-N SSI CEB Server Motherboard Dual Socket LGA 2011 R3 Pros: Solid physical construction, good kit, OK BIOS (nothing glamorous), board works reliably other than the IPMI system. Cons: The IPMI port or its firmware (more likely) seemed to die after a few logins. I did get a response from ASRockRack on this. Basically there's no IPMI system on this board, I had to give up on that functionality. But this function is important for a remotely installed server, so this was a bad choice. Other Thoughts: I would not buy this again based on their lack of support for this defect. Can't trust them. Did you find this review helpful? Thanks for the valuable feedback you provided!

Filter Results

0% (0)
0% (0)
0% (0)
100% (1)
0% (0)

Verified Owners
Video Reviews
Mfr. Responses

Brad M.
10/18/2015 6:42:31 AM
Ownership: 4/5
Verified Owner

Rating: 2/5IPMI is dead

Pros: Solid physical construction, good kit, OK BIOS (nothing glamorous), board works reliably other than the IPMI system.

Cons: The IPMI port or its firmware (more likely) seemed to die after a few logins. I did get a response from ASRockRack on this. Basically there's no IPMI system on this board, I had to give up on that functionality. But this function is important for a remotely installed server, so this was a bad choice.

Other Thoughts: I would not buy this again based on their lack of support for this defect. Can't trust them.
