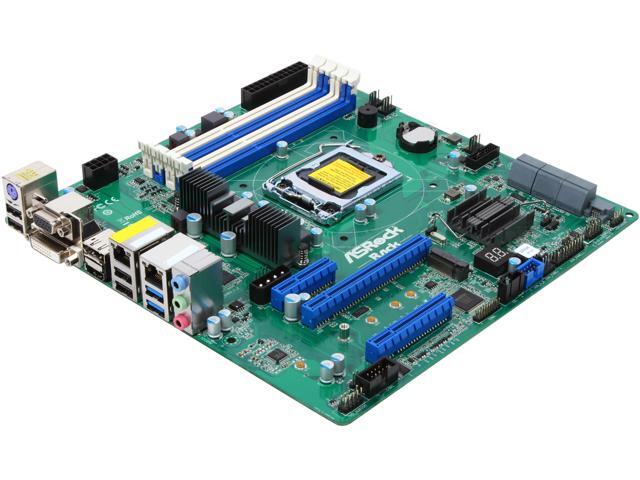

ASRock Server Motherboard Z97M WS
Features
- Micro ATX 9.6 x 9.6"
- Single Socket H3 (LGA 1150)
- Supports 4th Gen & 5th Generation Intel Core™ Processors (Socket 1150)
- 4 x DIMM DDR3 1600/1333 UDIMM, max. 32GB
- 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 2.0 x4, 1 x M.2 slot
- 6 x SATA3 by Intel Z97, support RAID 0, 1, 5, 10
- Supports SATA Express (Port 5)
- Intel i210 + i217LM, supports Dual GLAN with Intel vPro technology
- 4 x USB 3.0 ports (2 rear + 2 via header)
- 6 x USB 2.0 ports (4 rear + 2 via header)
Specifications
MB Physical Status
| Form Factor | Micro ATX 9.6 x 9.6" |
|---|---|
| Dimensions | 9.6 x 9.6" (24.4 x 24.4cm) |
Processor System
| CPU |
|
|---|---|
| Socket | Single socket H3 (LGA1150) |
| Chipset | Intel® Z97 |
System Memory
| Capacity |
|
|---|---|
| Type |
|
| Voltage | 1.5V, 1.35V |
Expansion Slots
| PCIe 3.0 x 16 | 1 slot (x16 or x8, switch with x8 slot) |
|---|---|
| PCIe 3.0 x 8 | 1 slot (x0 or x8, switch with x16 slot) |
| PCIe 2.0 x 4 | 1 slot |
| M.2 | 1 slot (share with SATA Port 4 & Port 5) |
Storage
| SATA Controller |
|
|---|
Audio
| Audio Codec | Realtek ALC892 |
|---|
Ethernet
| Interface | Gigabit LAN 10/100/1000Mbps |
|---|---|
| LAN Controller |
|
Graphics
| Controller | Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
|---|---|
| VRAM | Max. shared memory 1792MB |
| Output | Supports D-Sub with max. resolution up to 1920 x 1200 @ 60Hz |
Rear Panel I/O
| PS/2 KB/Mouse | 1 |
|---|---|
| VGA Ports | D-sub x 1, DVI x 1, HDMI x 1, Display port x 1 |
| USB 3.0 Ports | 2 |
| USB 2.0 Ports | 4 |
| Lan Port |
|
| Audio | 3 Jack |
Internal Connector
| COM Port Header | 1 (COM1) |
|---|---|
| Power LED Header | 1 |
| Auxiliary Panel Header | 1 (Include chassis intrusion, front LAN LED) |
| TPM Header | 1 |
| Fan Header | 5 x 4-pin |
| ATX Power | 1 (24-pin) + 1 (8-pin) |
| USB 3.0 Header | 1 (Each supports two USB 3.0) |
| USB 2.0 Header | 1 (Each supports two USB 2.0) |
System BIOS
| BIOS Type | 128Mb AMI UEFI Legal BIOS |
|---|---|
| BIOS Features |
|
Hardware Monitor
| Temperature |
|
|---|---|
| Fan |
|
| Voltage | Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
Support OS
| OS |
Microsoft Windows
|
|---|
Feature
| Unique Features | ASRock Instant Flash |
|---|
Environment
| Temperature | Operation temperature: 14 - 95°F (10 - 35°C)/ Non operation temperature: -40 - 158°F (-40 - 70°C) |
|---|
