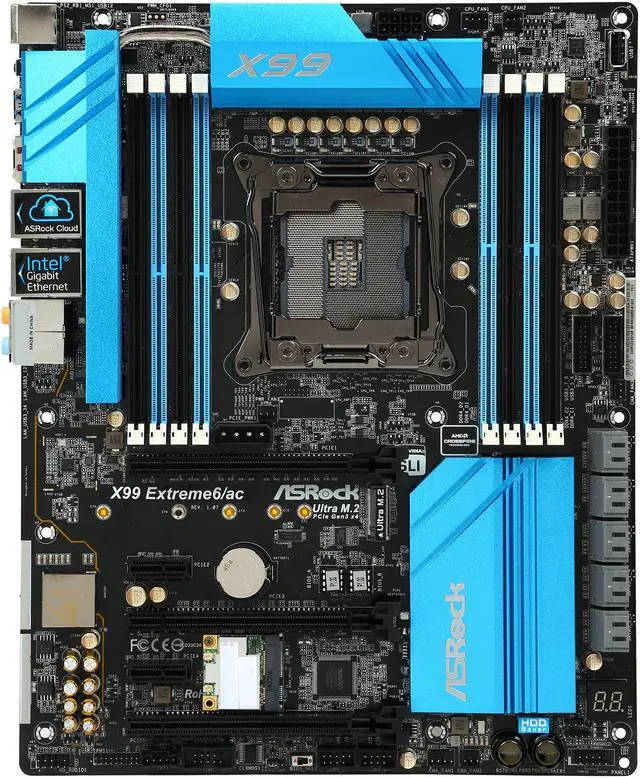

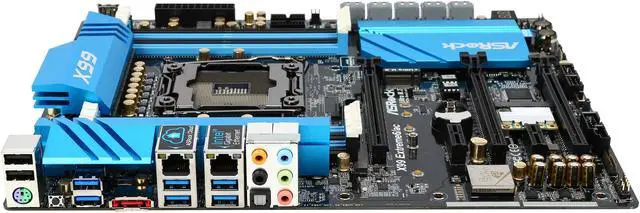

ASRock X99 Extreme6/ac LGA 2011-v3 Intel X99 USB 3.0 ATX Intel Motherboard
OPEN BOX Product Type
- Intel X99
- Core i7 (LGA2011-3) and Xeon 18-Core Processors
- DDR4 3000+ (OC) / 2933+ (OC) / 2800 (OC) / 2400 (OC) / 2133 / 1866 / 1600 / 1333 / 1066
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock X99 Extreme6/ac
| Brand | ASRock |
|---|---|
| Model | X99 Extreme6/ac |
| CPU Socket Type | LGA 2011-v3 |
|---|---|
| CPU Type | Core i7 (LGA2011-3) and Xeon 18-Core Processors |
| Supported CPU Technologies | Supports Intel Turbo Boost 2.0 Technology Supports Untied Overclocking Technology |
| Chipset | Intel X99 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3000+ (OC) / 2933+ (OC) / 2800 (OC) / 2400 (OC) / 2133 / 1866 / 1600 / 1333 / 1066 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 3 x PCI Express 3.0 x16 (PCIE1 @ x16 mode; PCIE3 @ x16 mode; PCIE5 @ x8 mode) *If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE4 will work at x16/x8/x4 and 3-Way SLI is not supported. To support 3-Way SLI, please install CPU with 40 lanes. |
|---|---|
| PCI Express x1 | 2 x PCI Express 2.0 x1 |
| Mini Card Slots | 1 x Mini PCIe |
| Serial ATA (SATA) | 10 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Ultra M.2 |
| SATA RAID | 0 / 1 / 5 / 10 / Intel Rapid Storage 13 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I218-V |
|---|---|
| Second LAN Chipset | Qualcomm Atheros AR8171 |
| Max LAN Speed | 2 x 1Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n / ac |
| Bluetooth | Supports Bluetooth 4.0 / 3.0 + High speed class II |
| Back I/O Ports | 1 x eSATA 6GB/S / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 6 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| USB 3.0 | 6 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Antenna Connectors | 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Onboard USB | 4 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Clear CMOS Switch |
| Form Factor | ATX |
|---|
| Features | ASRock Super Alloy WiFi Support XXL Aluminum Alloy Heatsink Premium 60A Power Choke Premium Memory Alloy Choke Ultra Dual-N MOSFET (UDM) Nichicon 12K Platinum Caps Sapphire Black PCB |
|---|
| First Listed on Newegg | August 13, 2015 |
|---|
