Model

Brand

SUPERMICRO

Model

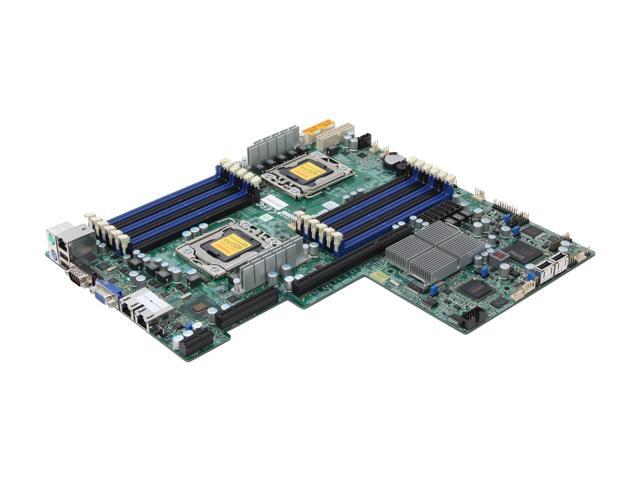

MBD-X8DTU-F-O

Supported CPU

CPU Socket Type

Dual LGA 1366

CPU Type

Dual Intel Xeon 5600/5500 series

QPI

Up to 6.4 GT/s

Chipsets

North Bridge

Intel 5520

South Bridge

ICH10R + IOH-36D

Memory

Number of DDR3 Slots

12 x 240pin

DDR3 Standard

DDR3 1333/1066/800

Maximum Memory Supported

192GB

ECC Supported

Yes

Registered

Yes

Expansion Slots

PCI Express 2.0 x16

Left Side: 1 (x16) PCI-E 2.0 + 1 UIO or 1 (x16) PCI-E 2.0

Storage Devices

SATA

6 x SATA 3.0Gb/s

SATA RAID

RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)

Onboard Video

Onboard Video Chipset

Matrox G200eW

Onboard LAN

LAN Chipset

Intel 82576

LAN Speed

10/100/1000Mbps

Max LAN Speed

Dual 10/100/1000Mbps

Rear Panel Ports

PS/2

2

COM

1

Video Ports

D-Sub

USB 1.1/2.0

2 x USB 2.0

Features

Features

Integrated IPMI 2.0 with Dedicated LAN

CPU: Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
Intel Xeon Processor 5600 Series (Westmere)
Intel Xeon Processor 5500 Series (Nehalem-EP)

Onboard USB

2x USB on-board
4x USB internal headers

Dimensions

Form Factor

Proprietary

Dimensions (W x L)

12.075" x 13.05"
