Item#: N82E16813182354

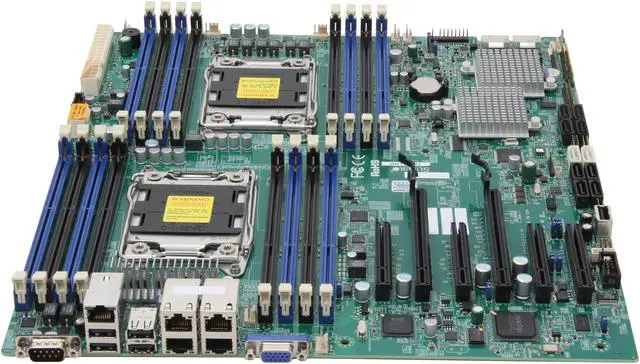

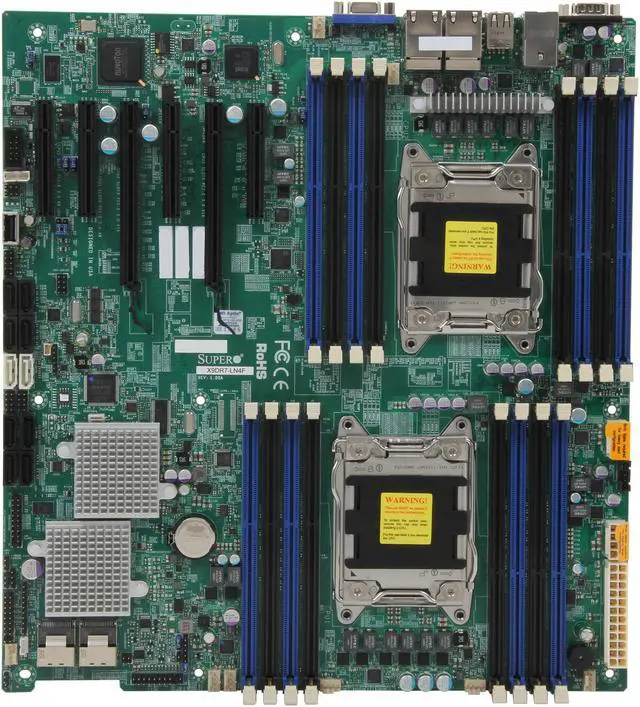

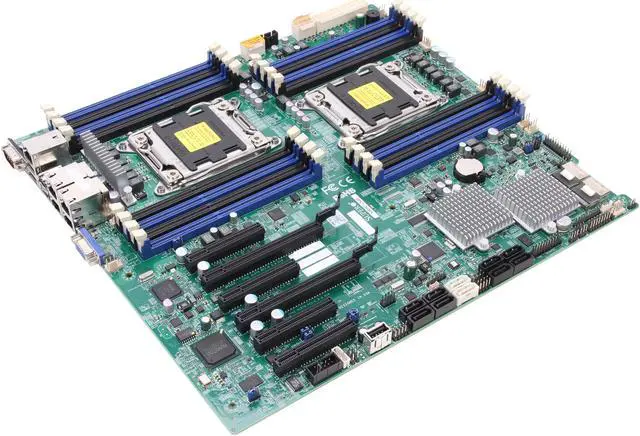

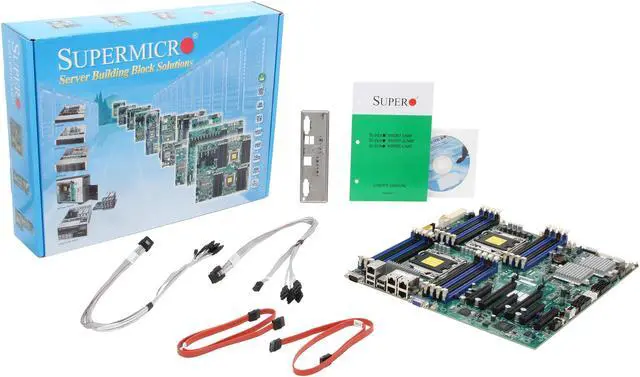

SUPERMICRO MBD-X9DR7-LN4F-O Extended ATX Server Motherboard Dual LGA 2011 DDR3 1600/1333/1066/800

  • Dual LGA 2011
  • Intel C602 Chipset
  • 16 x 240pin
  • Pin It
  • Email this page
ICON Loading...

Major Benefits from Supermicro's in-house Design Superiority

Supermicro motherboard advantages:

  • Technologically-advanced Motherboard Designs Since 1993
  • Consistent highest-quality Design, Components, and Production Expertise
  • Extensive Range of x86 Serverboards Available
  • Competitive Price/Performance
  • High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
  • Standard Form Factors offer Feature - rich Support and application optimization
  • These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.


    Learn more about the SuperMicro MBD-X9DR7-LN4F-O

    Model

    Brand
    SUPERMICRO
    Model
    MBD-X9DR7-LN4F-O

    Supported CPU

    CPU Socket Type
    Dual LGA 2011
    CPU Type
    Dual Intel Xeon E5-2600 Series (up to 135W TDP)
    QPI
    Up to 8.0GT/s

    Chipsets

    Other Chipset
    Intel C602 Chipset

    Memory

    Number of DDR3 Slots
    16 x 240pin
    DDR3 Standard
    DDR3 1600/1333/1066/800
    Maximum Memory Supported
    512GB
    ECC Supported
    Yes
    Registered
    Yes

    Expansion Slots

    PCI Express 3.0 x16
    2 x PCI-E 3.0 x16
    PCI Express x8
    4 x PCI-E 3.0 x8

    Storage Devices

    SATA
    4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
    SATA RAID
    0/1/5/10
    Additional SATA
    4 x SATA 3.0Gb/s
    Additional SATA RAID
    0/1/5/10
    SAS
    8x SAS2 ports (6Gbps) via LSI 2308
    SAS RAID
    RAID 0/1/10

    Onboard Video

    Onboard Video Chipset
    Matrox G200eW

    Onboard LAN

    LAN Chipset
    Intel I350-AM4
    LAN Speed
    10/100/1000Mbps
    Max LAN Speed
    Quad 10/100/1000Mbps

    Rear Panel Ports

    COM
    1
    Video Ports
    D-Sub
    USB 1.1/2.0
    4 x USB 2.0

    Physical Spec

    Form Factor
    Extended ATX
    Dimensions
    12.0" x 13.0"

    Features

    Features
    Memory Capacity:
    Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
    Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)

    IPMI 2.0 & KVM with dedicated LAN

    4 pin PWM Fan Speed control

    *Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.

    Quick Info

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 3 years


    Customer Reviews of the SuperMicro MBD-X9DR7-LN4F-O

    Do you own this product? Write a Review

    ICON Loading...

    Filter Results

    Go
    • Charles M.
    • 2/15/2014 11:05:45 AM
    • Tech Level: High
    • Ownership: 1 month to 1 year

    5 out of 5 eggsAn excellent experience

    Pros: This is a fine motherboard! It does what is advertised, of course, but Supermicro has made the supporting material great as well:
    - The manual is one of the best I've ever seen. Clear, lots of diagrams, every jumper is explained, and all the information you need is right there.
    - Supermicro tech support was very helpful and quick to diagnose a problem (I missed a setting in the BIOS to enable graphics cards, if you have that problem set video priority to "offboard".)
    - Technically speaking, I have no problems with the motherboard. Recognized my hardware, and all that. More ports than you know what to do with, worked out of the box (with exception of video card thing, but I don't fault them because the default setting makes sense in a server situation).

    Cons: None of these is enough to dock a whole egg, but:
    - The motherboard is *technically* not E-ATX. The screw holes don't line up with the standard in some places, so parts of my motherboard are unsupported. I was a little nervous when the motherboard flexed when I was installing RAM, but other than that it's not been a major issue. About half of the screw holes do line up with E-ATX specification.
    - I had some trouble installing a CoolerMaster heatsink. I can't tell for sure if this is the processor socket being a bit wonky or the heatsink being a bit off-size, and I got the heatsinks on in the end. There was plenty of room for two Hyper 212 EVO. Temperatures are fine.
    - The SAS port aims off the side of the motherboard, rather than straight up. The case I chose (CoolerMaster HAF X) had a metal strut in the way, so I have to use the SATA ports or take a dremel to my case. =(
    - Even when the machine is off, there's a green light on the motherboard, and it sort of clashes with the ambiance of the office it's in.

    Other Thoughts: This is our molecular visualization machine: 2 x E5-2680, 8x M393B2G70BH0-CK008 (128 GB ram), Quadro K5000. Running Fedora 19.

    I am very happy with Supermicro, and I will use their products in my future high-end builds. NVIDIA, on the other hand...

    Did you find this review helpful? Yes No

    • Alexander S.
    • 9/12/2013 4:08:18 AM
    • Tech Level: High
    • Ownership: 1 month to 1 year
    • Verified Owner

    1 out of 5 eggsWeak Inegrated Circuit

    Pros: Looks very promising specs are immaculate.

    Cons: Circuitry is fragile mine never turned on except a fiew times at first would get since day one beep code error with gave 5 beeps 2 of a certain pitch and 3 of another and manual documents a single or quadruple beep code so not much help there. Support said incompatible memory. So i replaced it and same problem will not install any software or turn screen on. Giving up buying another board i have 22 years experience I have never seen this ever when looking for a comparable board found only Tyan makes one with same specs. I also found that I was not the only one so do as please some seem to have been making them work however that was not the case for mine.

    0 out of 1 people found this review helpful. Did you? Yes No

    • Andrew N.
    • 6/26/2013 5:45:00 PM
    • Tech Level: High
    • Ownership: 1 week to 1 month
    • Verified Owner

    5 out of 5 eggsBackup up by a great company!!

    Pros: Features abound! This board is full of features. Intel RAID controller, LSI RAID controller, Intel 4 Gig Ethernet Ports, Tons of RAM capacity, tons of SATA and SAS ports and the eATX format really keeps the options open for cases. IPMI features make this an easy motherboard to manage and update remotely.

    Cons: Confusion around the RAID controllers. There are two RAID controllers on this board, but neither are true hardware controllers, they are software controllers that rely on the performance of the subsystem and share memory and CPU cycles with the OS. There are also some really glitchy compatibility issues with Server 2012, especially when using Intel RAID5 and the SCU SATA ports which left me with a dead motherboard.

    Other Thoughts: SuperMicro stands behind their products like no other company. Setting up my server I tried using the Intel RAID controller with Win 2012 on the SCU ports and the BIOS corrupted and it would not boot. I did this twice, once under the guidance of SuperMicro tech support. They spent hours with me helping me diagnose the problem and sending me replacement parts to get it right. I would still be very cautious about Server 2012 using the onboard RAID, but I would say if you ever have a choice between a supermicro product and any other brand go with SuperMicro, they are fantastic!

    1 out of 1 people found this review helpful. Did you? Yes No

    • WILLIAM L.
    • 5/2/2013 2:55:51 PM
    • Tech Level: High
    • Ownership: 1 month to 1 year

    5 out of 5 eggsWorth It

    Pros: Has Intel NIC worth $350 if purchase separately. Has LSI SAS controller worth $250-$300 if purchase separately. Works with a single CPU. Really good running Hyper-V.

    Cons: Needs a Supermicro chassis, not a con if you are in need of a chassis since Supermicro chassis pair well with these.

    Other Thoughts: Have 3 servers in the field, each running 4-6 VMs with Hyper-V on this mobo, and they are trouble-free.

    Did you find this review helpful? Yes No

    • Jeremy B.
    • 1/25/2013 6:17:55 AM
    • Tech Level: High
    • Ownership: 1 month to 1 year
    • Verified Owner

    5 out of 5 eggsGreat Server Motherboard

    Pros: We have built two virtual servers using this board. The onboard LSI SAS controller is great, adding 8 SAS OR SATA 6 Gps ports. This brings the total SATA ports up to 16 of which 10 are 6 gps. The quad intel nic is great. All in all so far our experience is very positive with this board and we plan to buy two more.

    Cons: Server 2012 was not supported out of the box. You have to open a ticket with SuperMicro and they will send updated bios. I am a little uncomfortable running unreleased bios but so far have had no issues.

    4 out of 4 people found this review helpful. Did you? Yes No
