Model

Brand

SUPERMICRO

Model

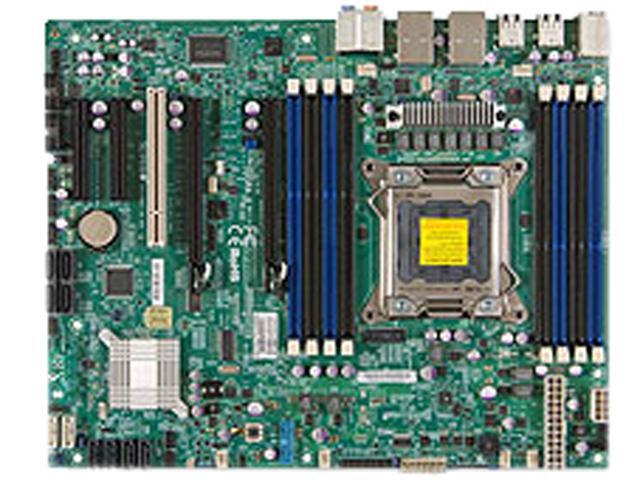

X9SRA

Supported CPU

CPU Socket Type

LGA 2011

CPU Type

Intel Xeon processor E5-2600/1600 and E5-2600/1600 v2 family

Chipsets

Other Chipset

Intel C602 chipset

Memory

Number of DDR3 Slots

8 x 240pin

DDR3 Standard

1866/1600/1333/1066MHz

ECC Supported

Yes

Expansion Slots

PCI Express x16

2 x PCI Express x16

Other Slots

2x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x4 (in x8) slot
1x PCI-E 2.0 x4 (in x8) slot
1x PCI-32 slot

Storage Devices

SATA

2x SATA 3.0 ports (6Gb/s)
4x SATA 2.0 ports (3Gb/s)

SATA RAID

0/1/5/10

Onboard Audio

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Intel 82579LM and 82574L, 2x Gigabit LAN ports

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1

USB 1.1/2.0

4x USB 3.0 ports (5Gbps)
14x USB 2.0 ports total (8x rear + 6x via header)

Audio Ports

Line-in / Line-out / Microphone Ports

Features

Features

Single socket R (LGA 2011) supports Intel Xeon processor E5-2600/1600 and E5-2600/1600 v2 family ,2nd and 3rd Gen. Core i7 series processors (Ci7 CPU only works w/Non-ECC UDIMM)
Intel C602 chipset
Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM sockets
Expansion slots: 2x PCI-E 3.0 x16,1x PCI-E 3.0 x4 (in x8),1x PCI-E 2.0 x4 (in x8), 1x PCI-32
Dual Gigabit Ethernet LAN ports; Intel 82579LM and Intel 82574L
2 SATA3 (6Gb/s), 4 SATA (3Gb/s),& 4 SATA2 (3Gb/s) ports via SCU
4 USB 3.0 (5Gbps) ports (2 rear,2 via header) & 14 USB 2.0 ports(8 rear, 6 via header)
DOM power connector support

Dimensions

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"
