Model

Brand

SUPERMICRO

Model

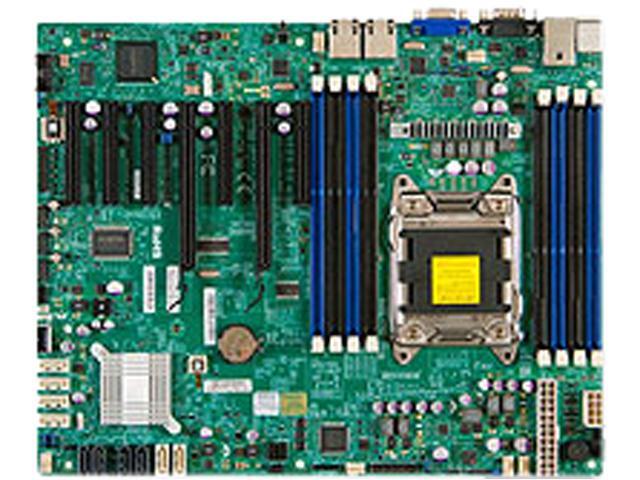

MBD-X9SRL-F-B

Supported CPU

CPU Socket Type

LGA 2011

CPU Type

Intel Xeon E5-2600/1600

Chipsets

Other Chipset

Intel C602

Memory

Number of DDR3 Slots

8 x 240pin

Expansion Slots

PCI Express x16

2 x PCI Express x16

Other Slots

2x PCI-E 3.0 x8 (in x16) slots
2x PCI-E 3.0 x8 slots
2x PCI-E 3.0 x4 (in x8) slots
1x PCI-E 2.0 x4 (in x8) slot

Storage Devices

SATA

4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s

Onboard Video

Onboard Video Chipset

Matrox G200eW 16MB DDR2 graphics

Onboard LAN

LAN Chipset

Intel 82574L

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

2

COM

1

USB 1.1/2.0

9 USB 2.0 ports total (2 rear + 6 via header + 1 Type A)

Features

Features

Single socket R (LGA 2011) supports Intel Xeon processor E5-2600/1600 and E5-2600/1600 v2 family
Intel C602 chipset; QPI up to 8.0GT/s
Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM sockets
Expansion slots: 2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 SATA3 (6Gb/s), 4 SATA2 (3Gb/s), & 4 SATA2 (3Gb/s) ports via SCU
Intel 82574L Dual port GbE LAN
2 SATA3 (6Gb/s), 4 SATA2 (3Gb/s), & 4 SATA2 (3Gb/s) ports via SCU
Integrated IPMI 2.0 and KVM with Dedicated LAN
USB 2.0 ports(2 rear + 6 via header + 1 Type A)
DOM power connector support

Dimensions

Form Factor

ATX

Dimensions (W x L)

12.0" x 9.6"
