Model

Brand

SUPERMICRO

Model

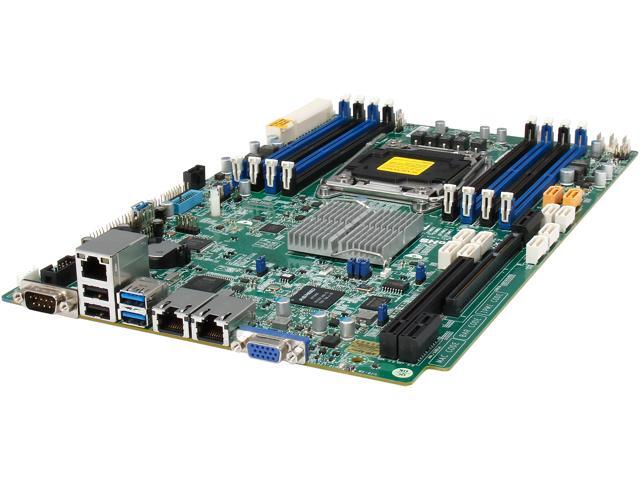

MBD-X10SRW-F-O

Supported CPU

CPU Socket Type

LGA 2011

CPU Type

Intel Xeon processor E5-2600/1600 v3 family (up to 145W TDP **)

Chipsets

North Bridge

Intel C612

Memory

Number of DDR4 Slots

8x 284-pin

DDR4 Standard

2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit

Maximum Memory Supported

Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM

ECC Supported

Yes

Expansion Slots

Other Slots

1x PCI-E 3.0 x8 (in x16) slots
1x PCI-E 3.0 x32 Left Riser slot

Storage Devices

SATA

10x SATA3 (6Gbps) ports

SATA RAID

0/1/10

Onboard Video

Onboard Video Chipset

ASPEED AST2400 BMC

Onboard LAN

LAN Chipset

2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port

Rear Panel Ports

COM

2

Video Ports

1x VGA port

USB 1.1/2.0

8 x USB 2.0

USB 3.0

4 x USB 3.0

Features

Features

Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 and E5-1600 v3 family
Intel C612 Express chipset
Up to 512GB ECC DDR4 2133MHz LRDIMM; 8x DIMM sockets
Expansion slots:1 PCI-E 3.0 x8 (in x16),1 PCI-E 3.0 x32 Left Riser slot
Intel i350-AM2 Dual port GbE LAN
10x SATA3 (6Gbps) via C612
1x VGA, 2x COM, 1x TPM
4x USB 3.0 ports, 8x USB 2.0 ports
2x SuperDOM with built-in power

Dimensions

Form Factor

Proprietary

Dimensions (W x L)

8.15" x 13.05", (20.70cm x 33.15cm)
