Item#: N82E16813188048

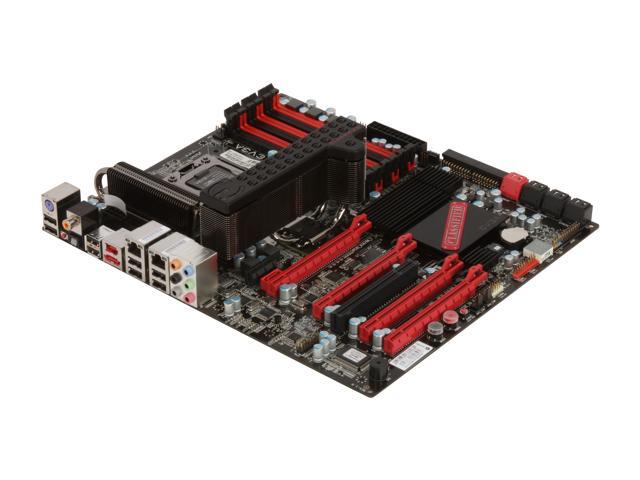

EVGA E760 CLASSIFIED "Overclocker's Pick" 3-Way SLI + PhysX 1366 Intel X58 EATX Intel Motherboard

  • LGA 1366
  • Intel X58
  • 6×240pin DDR3 1600+
ICON Loading...

You've used EVGA's video cards for running down your in-game enemies; now add their mobo to your arsenal. The board is based on the Intel X58 platform and supports the Intel Core i7 processor. You can install up to 24GB of triple channel DDR3 1600+ memory to run the front side bus at full speed.

There are 4 PCIe x16 slots supporting 3-way SLI configuration. is the board has native support for Gigabit Ethernet and RAID, increasing throughput by eliminating bottlenecks on the motherboard. The Dual Gigabit ports support DualNet technology for a fast 2GB network connection. Plus, RAID levels 0, 1, 0+1, and 5 are supported flexible RAID application.

  • newegg Intel Core i7 Support Based on the Intel X58 Express chipset, the EVGA X58 SLI Classified supports the Intel's latest processer Core i7, to deliver ultra powerful performance.
  • newegg NVIDIA 3-way SLI Technology NVIDIA 3-way SLI (Scalable Link Interface) Technology allows up to three graphics cards to run in parallel for as much as 2.8X the performance of a single card configuration, taking your gaming experience to the next level with mind-blowing frame rates and resolutions.
  • newegg Serial ATA with RAID The EVGA X58 SLI Classified features revolutionary Serial ATA interface to provide scalable performance for storage devices. SATA technology enables easy-to-install, high-performance and low-power hard drives. The nine SATA ports support RAID 0, 1, 0+1, 5 and JBOD array for better performance, enhanced data security, and flexible capacity upgrades.
  • newegg Dual Gigabit LAN The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. Dual Gigabit LAN means rapid data transfers from WAN to LAN without any added arbitration or latency.
  • newegg IEEE 1394a Support IEEE 1394 is a widely used standard of interface between personal computers and digital AV equipment. With IEEE 1394a you can easily connect digital devices such as a digital camcorder to the IEEE 1394a port provided on this motherboard for up to 400Mbps data transfer speeds.

Learn more about the EVGA 141-BL-E760-A1

Model

Brand
EVGA
Model
141-BL-E760-A1

Supported CPU

CPU Socket Type
LGA 1366
CPU Type
Core i7 (LGA1366)

Chipsets

Chipset
Intel X58
South Bridge
Intel ICH10R

Memory

Number of Memory Slots
6×240pin
Memory Standard
DDR3 1600+
Maximum Memory Supported
24GB
Channel Supported
Triple Channel

Expansion Slots

PCI Express 2.0 x16
4 (x16/x8)
PCI Express x1
1
PCI Slots
1

Storage Devices

PATA
1 x ATA100 2 Dev. Max
SATA 3Gb/s
9
SATA RAID
0/1/0+1/5/JBOD

Onboard Audio

Audio Channels
8 Channels

Onboard LAN

Max LAN Speed
Dual 10/100/1000Mbps

Rear Panel Ports

PS/2
1
USB 1.1/2.0
8 x USB 2.0
IEEE 1394
1 x IEEE 1394a
eSATA
1 x eSATA 3Gb/s
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports

Internal I/O Connectors

Onboard USB
4 internal headers
Onboard 1394
1 x 1394a

Physical Spec

Form Factor
Extended ATX
Dimensions
12" x 10.38"

Features

Features
Enthusiast Layout supporting 2-Way, 3-Way, and 3-Way SLI w/PhysX
10 Phase Digital PWM w/ switching frequency up to 1333KHz
EVGA Vdroop Control
EVGA E-LEET Tuning utility
EVGA EZ Voltage read points
Onboard Clear CMOS, Power, and Reset Buttons
Onboard CPU Temperature Monitor
Passive chipset heatsink
EVGA SPD Utility that saves to the motherboards bios
100% Solid State Capacitors

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the EVGA 141-BL-E760-A1

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • CHRISTIAN S.
  • 3/16/2013 8:53:07 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

3 out of 5 eggsWell it died

Pros: Very good performance at the time (2009) Tons & tons of options, layout is great easy to locate the whole board & very good looking. Good size.

Cons: Well it was 3 yrs old but used for only 2. Never overclocked ( Really! ). The time I spent troubleshooting was a killer (u guys know what i'm talking about) on & off with EVGA switching other parts praying it's anything but the board.

Other Thoughts: What is worse my EVGA GTX480 VC Only lasted 1 year & was thankfully under warranty. But to have 2/2 EVGA products fail in 2 years is very upsetting. I got basically zero help from the EVGA team. Tech's saying things like "check your cables" & "you should have spent more $ for Extended warranty. Well that does not help me now! So great stuff when working. Just wish I had better help.

1 out of 1 people found this review helpful. Did you? Yes No

  • Jeff B.
  • 1/8/2013 3:07:08 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsI'm with Mike!

Pros: Beautiful board loved how it looked when I bought it still like it and plan on continue using it for at least another year! Did and still does everything I wanted it to do. Price when I bought it was unbeatable and performance has been way above average.

Cons: None just sad that 1 of the usb connections on the back died but that is nothing.

Other Thoughts: EVGA continues to prove they make quality products love that red glowing E.

Did you find this review helpful? Yes No

  • Michael M.
  • 11/24/2012 1:16:43 PM
  • Tech Level: Average
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreaT

Pros: Had this board for 3 years now,, Runs Great.. Over clocks fairly easy Runs cool..

Cons: Non concidering its 3year old technology .. Some one here said it doenst over clock,, well he's so wrong lol

Other Thoughts: Some one here said it doesnt over clock,, well he's so wrong lol

1 out of 1 people found this review helpful. Did you? Yes No

  • Benjamin L.
  • 6/24/2012 3:56:27 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Great Motherboard! Never has let me down.

Cons: none

Did you find this review helpful? Yes No

  • Jeffrey S.
  • 11/18/2010 6:17:14 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsTerrible EVGA warranty

Pros: This is a great board while it works but I can't recommend overclocking it once you have had it longer than 30 days due to EVGA's unwillingness to stand behind the product. The term "overclocker's pick" is false advertising because any overclocking you do with this board will likely void your warranty from EVGA.

Cons: I am a system builder and have purchased about 10 of these boards in the last 6 months to build overclocked computers. Two of the boards have had problems and I tried to return them for repair or exchange. An 8 out of 10 success rate is pretty good, unless you have to eat the entire cost of the replacement boards (not to mention rebuild the computer) when they fail.

1) Board 1. Lasted 3 months. EVGA claims "serial number mismatch" and refuses RMA. Board was out of warranty with Newegg. Newegg confirmed that the serial number provided to EVGA through the RMA process was correct and matched my order and graciously gave me a replacement board.

2) Board 2. Lasted 5 months. Verified with EVGA tech support over phone that "FF" code shown means non functional. EVGA refuses RMA due to corner of board being bent during shipping.Suggests filing an insurance claim and buying a new board from them. Would you buy insurance to ship a broken board? NO? Then out of luck.

Other Thoughts: After you have this board 30 days, you are not covered by Newegg's excellent replacement service and must send the board in to EVGA.

EVGA will refuse your RMA for the slightest little reason possible. You need to ship your damaged board WITH INSURANCE for this reason. Makes sense doesn't it? EVGA denies product, makes you file a claim, then has you use the insurance money to purchase a new board from EVGA.

2 out of 5 people found this review helpful. Did you? Yes No

  • BRANDON T.
  • 10/14/2010 2:14:15 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsEVGA E760 CLASSIFIED

Pros: All the features you could ever possibly need on the X58 chipset. Awesome design and great cooling on the northbridge and southbridge. Red and black color scheme really looks sharp with CORSAIR DOMINATOR GT's. Sweet little LCD screen on the motherboard that displays CPU temp. This is the best of the best when it comes to X58 motherboards. EASILY got to 4GHz stable with my i7 950. I will definitely push it some more. Also, it isn't called "Overclocker's Pick" for nothing ;) Awesome overclocking potential!

Cons: It's not cheap... nothing to deduct an egg for though! I personally believe it's worth every penny.

Other Thoughts: A little overkill for my build, but I didn't care. Leaves plenty of room for future upgrades.

Core i7 950 @ 4GHz
EVGA E760 CLASSIFIED
EVGA GeForce GTX 480 SC
CORSAIR DOMINATOR GT DDR3-2000
Corsair AX850 850W
Antec Nine Hundred Two

If you are planning on installing a Megahalem on this motherboard, it WILL touch the northbridge heatsink, but it still fits fine.

Did you find this review helpful? Yes No

  • Anonymous
  • 10/2/2010 12:17:47 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

5 out of 5 eggsGreat Board!

Pros: Posted first try, Easy to setup, My first computer build easy to understand, Manual made it cake. Tons of overclocking options + Software on evga site for it.

Cons: Northbridge gets alittle hot it seems but doesnt seem to cause any issues.

Other Thoughts: Would recommend to anyone.

Did you find this review helpful? Yes No

  • Anonymous
  • 9/29/2010 4:44:43 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsExcellent mb

Pros: Feature packed
Good stock cooling
Bios loaded with tweaks
Lots of aftermarket support
debug led
ability to use evga bot external control box

Cons: Size
lack of nf200 chipset
poorly placed extra sata port by pci-e slot

Other Thoughts: I got mine directly through evga via stepup of a e758 which wasn't well behaved. Early bugs addressed via bios updates. I'm very pleased with my e760 especially running on water. Evga has proven themselves as a customer oriented company where service is a top priority. I run evga mb's in all of my pc's.

Did you find this review helpful? Yes No

  • John K.
  • 9/28/2010 10:45:29 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsIt's a good board!

Pros: -Great overclocking features
-Stable
-No NF200 on board
-Voltage measuring points
-lots of fan headers

Cons: -NB and PWM heatsinks need a fans on them badly. The NB especially will get quite warm without one.
-No USB3/SATA3
-NB heatsink blocks the installation of some PCIE 1x cards

Other Thoughts: This board easily took my i7 920 to 4200Mhz (HT off), and runs my Dominator GT ram at super tight CAS6 timings @ 1688mHz. 24/7 stable.

-If you use SLI/Crossfire, you want to use the 1st and 3rd PCIE slots on the board, so that you get full 16x/16x lanes to both cards. However, this requires a 100mm bridge cable. The SLI bridge cable is included. You'll have to buy your own bridge cable if you use crossfire.

-X68 is going to be out in a few months. If you're looking to buy one of these new, at this point, you might as well wait or pick one up used.

Did you find this review helpful? Yes No

  • William K.
  • 9/23/2010 2:34:06 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsReally nice board!

Pros: The board itself is nice. Runs good so far.

Cons: The first board came DOA, Newegg was amazing in cross shipping and getting me working again.

Other Thoughts: Running the board with two 480's. With a AX1200.

1 out of 1 people found this review helpful. Did you? Yes No
