Does it come with a power supply? The package description doesn't say anything about one, other than the fact it needs one.

It doesn't include one, so you'll have to buy one or use one with micro USB plug (most android-based smartphone or tablets has one). You'll want an ac adapter with 5V and at least 1A to be safe (2A preferred). You can try plugging it into a USB port, but some ports doesn't supply enough power, so that's at your own risk.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

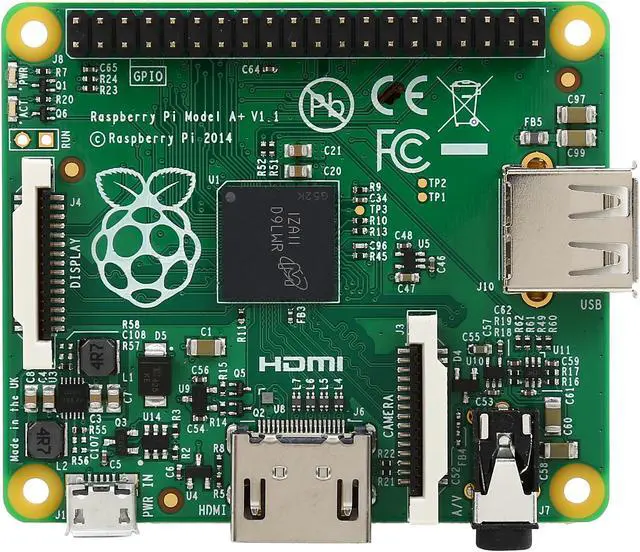

Main image of Raspberry Pi Model A+ Project Board (83-16459)

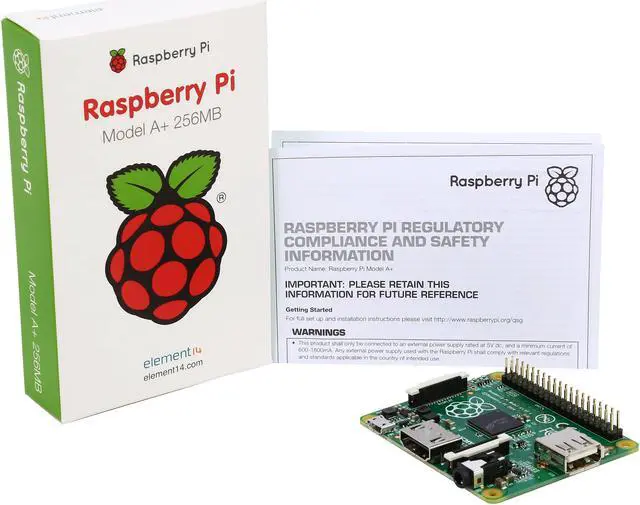

Alt view image 2 of 5 - Raspberry Pi Model A+ Project Board (83-16459)

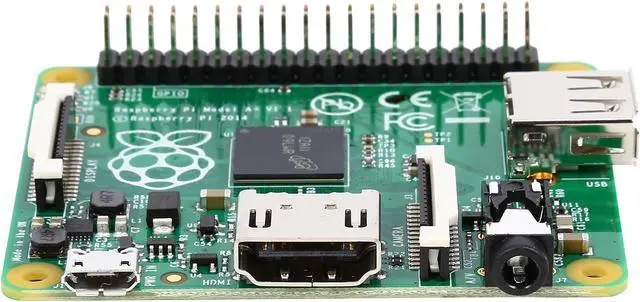

Alt view image 3 of 5 - Raspberry Pi Model A+ Project Board (83-16459)

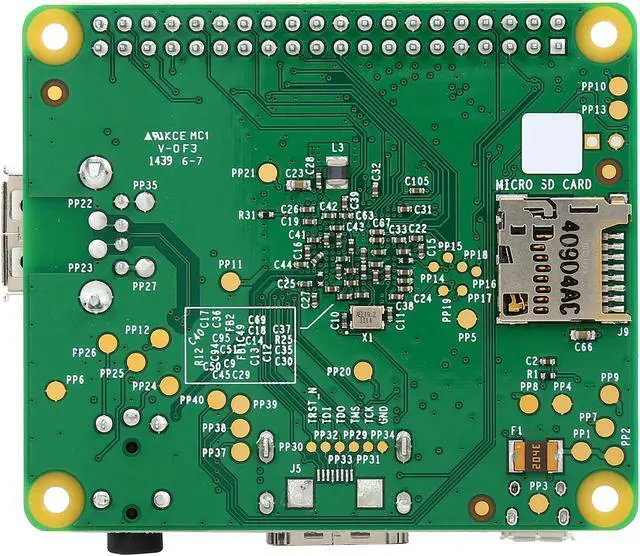

Alt view image 4 of 5 - Raspberry Pi Model A+ Project Board (83-16459)

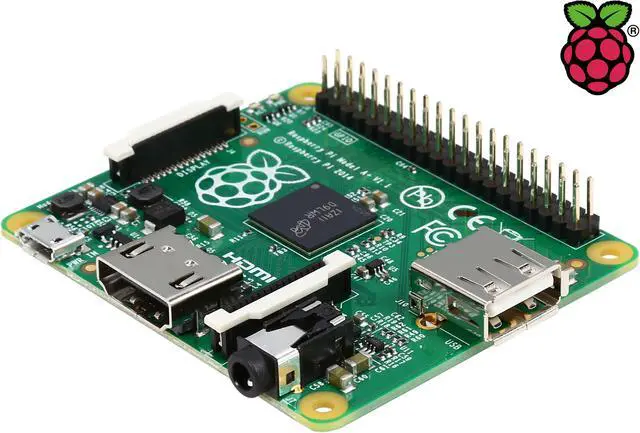

Alt view image 5 of 5 - Raspberry Pi Model A+ Project Board (83-16459)

Shop All Newark Products

Raspberry Pi Model A+ Project Board (83-16459)

(4) Write a Review

ARM 700Mhz CPU
256MB RAM
USB, HDMI, 2 Ribbon Slot

Specs

Reviews (4)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Newark 83-16459

Model
Brand	Newark
Model	83-16459
Combo Type	Raspberry Pi Model A+ Project Board

Bundle
Motherboard	Raspberry Pi Model A+
CPU	ARM 700Mhz CPU
Memory	256MB Ram

Features
Features	The design is based around a Broadcom BCM2835 SoC, which includes an ARM1176JZF-S 700 MHz processor, VideoCore IV GPU, and 256 Megabytes of RAM. This revision A+ board features four mounting holes for easy installation, a built-in reset circuit, and can be powered via the USB data ports. The design does not include a built-in hard disk or solid-state drive, instead relying on an microSD card for booting and long-term storage. This board is intended to run Linux kernel based operating systems. The Raspberry Pi uses Linux-kernel based operating systems. The Raspberry Pi does not come with a real-time clock, so an OS must use a network time server, or ask the user for time information at boot time to get access to time and date info for file time and date stamping. However a real time clock (such as the DS1307) with battery backup can be easily added via the I2C interface. Board Specifications - Processor: ARM 700Mhz CPU - USB: One USB 2.0 Port - Video Output: HDMI and Composite - Sound: L/R Stereo (via 3.5mm 4 Pole Cable) - Memory: 256MB Ram - Operating System: Uses microSD card slot to load O/S - Digital interfaces: 2 onboard ribbon slots for Camera and Display - GPIO: 40 GPIO pins, backwards compatible to B board

Physical Spec
Dimensions (W x L)	5" x 3"

Additional Information
First Listed on Newegg	November 22, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
