Model

Brand

ASUS

Model

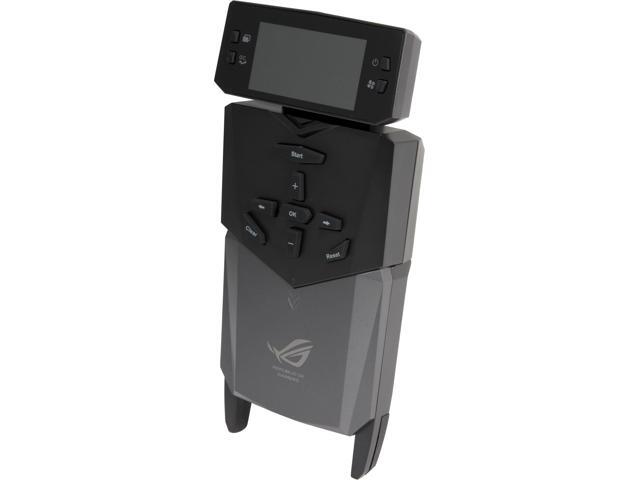

OC Panel

Details

Specifications

Display: 2.6" LCM

I/O Ports
-POWER:1 x SATA power connector
-ROG_EXT port:1 x 18-1 pin data connection port
-FAN: 4 x 4-pin extra Fan connectors

Power
-Voltage: +12V, +5V, +5VSB
-Power consumption: 5A

Installation requirements
-1 x 5.25" drive bay required for NORMAL Mode installation
-1 x SATA power cable from system power supply

Compatibility
-Maximus VI Series (Extreme/Formula/Gene/Hero/Impact) and other motherboards with ROG_EXT port

Features

Features

Pure hardware-based overclocking support

Boot debug POST code

Intuitive tunning in two OC modes
- EXTREME Mode for subzero OC benching
- NORMAL Mode for in-chassis usage

Seamless integration with CPU Level Up at one-click OC button

Real-time control and display CPU fan speed, temperature, BCLK and RATIO

Adjustable system voltages, frequencies on-the-fly

Stylish design with 90 plus-degree-tilt movable faceplate (EXTREME Mode)

FanSpeed Control button
- Standard/Silent/Turbo mode

4 additional 4-pin fan headers

LCM backlight on/off

ROG exclusive features
- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- VGA SMB header
- ProbeIt
