Model

Brand

ASUS

Model

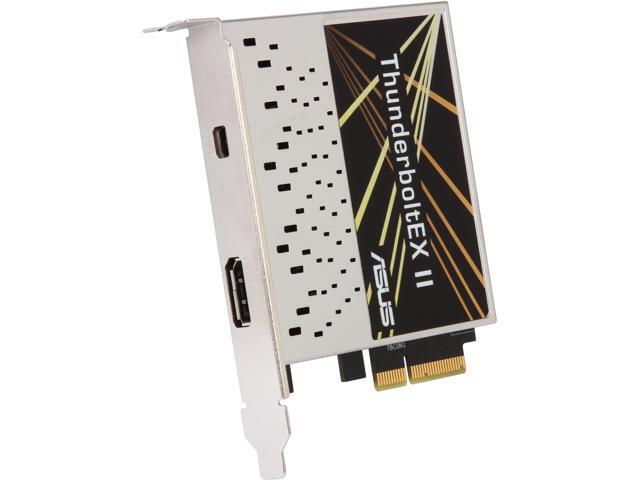

ThunderboltEX II

Spec

Specifications

Chipset: Intel DSL5320 Thunderbolt 2 Controller

External Connectors
-1 x Thunderbolt 2 port runs up to 20Gbps
-1 x DisplayPort IN port
-1 x 9 pin TB header

Dimensions: 3.35" x 3.94"

Interface:
-PCI Express 2.0 x4 interface
-Compatible with PCI Express x8, and x16 slots

VGA:
-Supports Thunderbolt 2 Interface with max. resolution of 4096 x 2160@24Hz / 3840 x 2160@60Hz
-DisplayPort 1.2 Multi-Stream Transport compliant; supports DisplayPort 1.2 monitor daisy-chain up to 3 displays

Data Rate: 1 x Thunderbolt 2 port, maximum at 20Gbps bidirectional

Operating System:
-Windows 8.1 32/64-bit
-Windows 8.1 64-bit
-Windows 8 64-bit
-Windows 8 32/64-bit
-Windows 7 32/64-bit
-Windows 7 (Ultimate SP1) 32/64-bit

Accessories
-1 x DisplayPort cable
-1 x mini DisplayPort Cable
-1 x ASUS TB header cable(linked from an ASUS motherboard's TB header to ThunderboltEX II card's TB header)

Compatible Model
-MAXIMUS VI EXTREME
-SABERTOOTH Z87
-Z87-PRO
-Z87-PRO(V EDITION)
-Z87-PLUS
-Z87-PLUS(VivoMouse EDITION)
-Z87-A
-Z87-A(NFC EXPRESS EDITION)

Features

Features

Thunderbolt 2 Technology - 2X Faster than original Thunderbolt and 4X faster than USB3.0. Daisy-chain up to 9 devices per port with improved transferring speed up to 20 Gb/s.

Simply Plug and Upgrade! - Compatible with all the Thunderbolt devices

Easy Installation - Exclusively Compatible with ASUS 8 series MBs
