AMD 100-505748(100-505857) FirePro S9000 6GB 384-bit GDDR5 PCI Express 3.0 x16 Server Graphics

  • FirePro S9000
  • 6GB GDDR5
  • PCI Express 3.0 x16
ICON Loading...

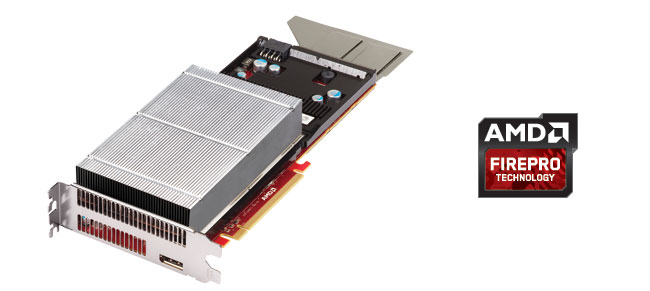

AMD FirePro™ S9000 Server Graphics

AMD FirePro™ S9000 is the industry's most powerful single GPU server graphics card available for powering Compute, Virtual Desktop Infrastructure and Workstation Graphics deployments in the data center. It features a blazing 3.23 TFLOPS of peak single-precision compute performance and is up to 2.4 times as fast as competitive solutions, due in part to its innovative all-new Graphics Core Next (GCN) architecture, which allows it to effortlessly process challenging compute workloads.

Equipped with a massive 6GB GDDR5 frame buffer, S9000 delivers up to 1.49 times the memory bandwidth of the competing solution - a scorching 264 Gbps. With high performance computing (HPC) features like error correcting code (ECC) memory and 806 GFLOPS of dual-precision floating-point performance, it's the ideal choice for HPC workflows.

Cutting-edge graphics and compute performance through the all-new Graphics Core Next (GCN) architecture, delivering up to 1.8 billion triangles/second and 3.23 TFLOPS of peak single-precision and 806 GFLOPS of dual-precision floating-point performance



  • Error correcting code (ECC) memory to ensure computation precision and accuracy
  • Designed for use in rackmount and blade servers and PCIe® expansion chassis
  • Support for Microsoft® RemoteFX, and Citrix® and VMware® virtual machines





S9000

Graphics Core Next (GCN) Architecture

The world's first 28nm GPU architecture, GCN is designed for high utilization, high throughput and multitasking. It's the only discrete graphics architecture compatible with the x86 programming model, paving the way for future software and hardware integration.

Energy Efficient Design

AMD FirePro™ consumes 225W at maximum power and features intelligent power monitoring and management technologies. AMD PowerTune technology dynamically optimizes GPU power usage and AMD ZeroCore Power technology significantly reduces power consumption at idle.

AMD PowerTune

AMD PowerTune technology is an intelligent system that performs real-time analysis of applications that utilize a GPU. In the event that an application is not making the most of the power available to the GPU, AMD PowerTune can improve that application's performance by raising the GPU's clock speed by up to 30% - automatically.

Passive Cooling

Designed for silent operation, and simplifies thermal design for servers.

Scalable Ultra Parallel Processing Architecture

Enables revolutionary floating-point performance across a wide range of computing applications:


  • 806 GFLOPS of peak double-precision floating-point performance
  • 3.23 TFLOPS of peak single-precision floating-point performance




S9000

Error Correcting Code (ECC) Memory

Helps ensure the accuracy of computations by correcting single or double bit errors as a result of naturally occurring background radiation.

Support for OpenCL™ 1.2, DirectX® 11 and OpenGL® 4.2

Support for latest industry standard APIs enables optimal performance in leading applications.

Memory



  • Size/Type: 6GB GDDR5
  • Interface: 384-bit
  • Bandwidth: 264 Gbps
    Compute Performance


  • 3.23 TFLOPS single-precision and 806 GFLOPS double-precision peak floating-point performance
  • Error Correcting Code (ECC) memory support
    Display Outputs

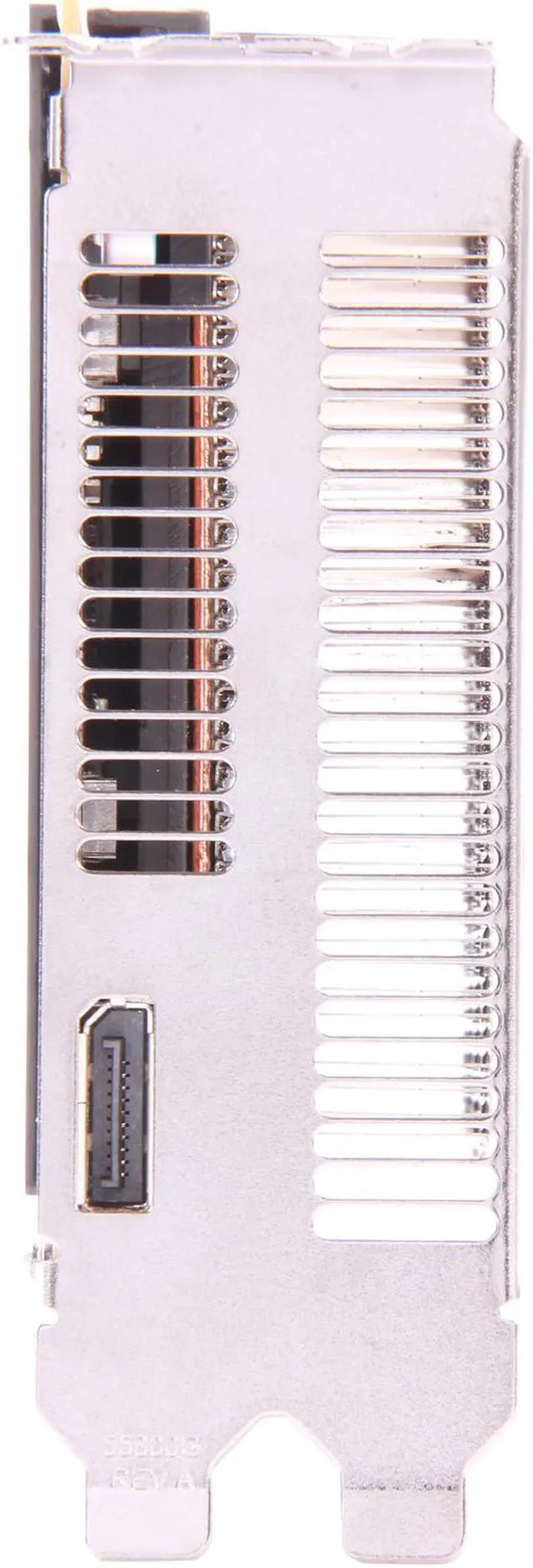

  • One DisplayPort

    API/Features/OS Support

  • DirectX® 11
  • OpenGL 4.2
  • OpenCL™ 1.24
  • Shader Model: 5.0
  • AMD Eyefinity Technology Support: Yes
  • OS Support: Microsoft® Windows® 8 or Microsoft Windows Server® 20125, Windows Server® 2008 R2 SP1, Windows® 7, Windows® XP, Windows Vista® and Linux® (32- or 64-bit)




S9000

Cooling/Power/Form Factor



  • Max Power: 225W
  • Slots: Two
  • Form Factor: Full height/ Full length
  • Bus Interface: PCIe® x16
  • Cooling: Passive heat sink
    System Requirements


  • 20 CFM airflow cooling
  • Available PCI® Express x16 (dual slot), 3.0 for optimal performance
  • Power supply plus one 2x4 (8-pin) AUX power connector 2GB system memory
  • Microsoft® Windows® 8 or Microsoft Windows Server® 20125, Windows Server® 2008 R2 SP1, Windows® 7, Windows® XP, Windows Vista® and Linux® (32 or 64-bit)
  • Internet connection for driver installation



System Requirements

  • AMD FirePro™ S9000 server graphics card
  • Single DisplayPort to Single-link DVI adapter (passive)
    Warranty and Support


  • Three-year limited product repair/replacement warranty
  • Direct toll free phone and email access to dedicated workstation technical support
  • Advanced parts replacement option




What's in the Box

S9000


Learn more about the ATI 100-505748(100-505857)

General

Brand
AMD
Model
100-505748(100-505857)

Interface

Interface
PCI Express 3.0 x16

Chipset

Chipset Manufacturer
AMD
GPU
FirePro S9000
Core Clock
900Mhz

Memory

Memory Size
6GB
Memory Interface
384-bit
Memory Type
GDDR5

3D API

DirectX
DirectX 11
OpenGL
OpenGL 4.2

Ports

DisplayPort
1

Spec

Digital Resolution
4096 x 2160
Cooler
Passive heat sink
Operating Systems Supported
Microsoft Windows Vista, Windows 7 or Linux (32-bit or 64-bit
Support for Windows 8 and Windows Server 2012 planned for future driver release
System Requirements
Max Power: 225W

Single PCIe x16 lane, 3.0 for optimal performance

2GB system memory

Internet access for software installation

Power supply plus one 2x4 (8-pin) AUX power connector

Features

Features
Specially designed for use in rackmount servers, blades and PCIe expansion chassis

Passive thermal solution for deployment flexibility

Energy efficient design and dual-slot heatsink help reduce power costs

6GB GDDR5, largest frame buffer offered in an AMD passively cooled form factor

Optimized performance for workstation graphics applications

Removable retention bracket

Support for SMBus temperature reporting at boot up

Massively parallel architecture for GPU compute

Support for Citrix and VMware virtual machines

Support for Microsoft RemoteFX

PCIe 3.0 compliant

Designed and thoroughly tested by AMD

Planned minimum four year lifecycle

806 GFLOPS of peak double-precision floating-point performance

3.23 TFLOPS of peak single-precision floating-point performance

Packaging

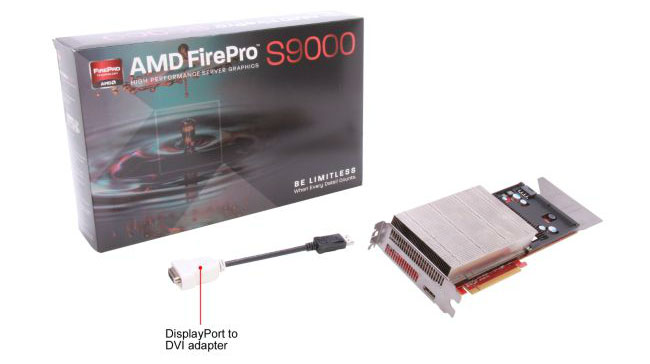

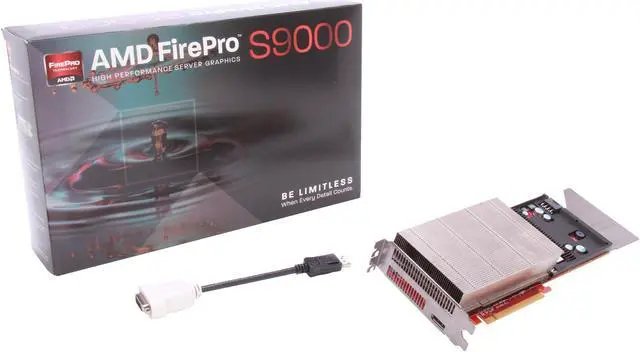

Package Contents
AMD FirePro S9000 server graphics card
Single DisplayPort to Single-link DVI adapter (passive)

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
