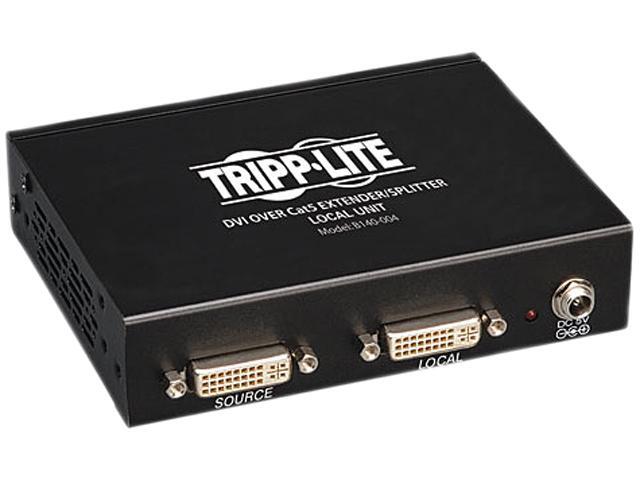

Tripp Lite DVI over Cat5 Extender/Splitter, 4-Port B140-004

Non Wall Plate Extender
Connector B: DVI-I (FEMALE) x 2
Connector A: RJ45 (FEMALE) x 4

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Tripp Lite's B140-004 splits a DVI-D single-link signal into 5 (1 Local, 4 Remote), and allows you to locate monitors over long distances using a single Cat5e/6 cable. Connect up to 13 monitors (1 Local, 12 Remote) by daisychaining up to three units together. When used with an active remote unit (B140-1A0 or B140-1A0-WP), a signal can be extended up to 200 ft. at 1024 x 768 (60Hz); or, up to 100 ft. at 1600 x 1200 (60Hz). When used with a passive remote unit (B140-1P0 or B140-1P0-WP), a signal can be extended up to 100 ft. at 1024 x 768 (60Hz); or, up to 50 ft. at 1600 x 1200 (60Hz). 24Awg, Solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required to reach max distance and resolution. Mounting hardware is included that allows the B140-004 to be rackmounted, wallmounted or pole mounted. Also, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket.

Learn more about the Tripp Lite B140-004

Model

Brand: Tripp Lite

Model: B140-004

Details

Extender & Repeater Type: Non Wall Plate Extender

Performance

Distance: up to 200 ft.

Connection

DVI: Connector B: DVI-I (FEMALE) x 2

Other Connector: Connector A: RJ45 (FEMALE) x 4

Specification

Specification: Cable Type: DVI
Display Style: Splitter
Color: Black

Feature

Feature: Transmits a single DVI-D Single-Link signal to 4 monitors up to 200 ft. from the source.

When using a B140-1A0 or B140-1A0-WP active remote unit, a 1024 x 768 (60Hz) signal can be extended up to 200 ft., or a 1920 x 1080 (60Hz) signal up to 150 ft..

When using a B140-1P0 or B140-1P0-WP passive remote unit, a 1024 x 768 (60Hz) signal can be extended up to 100 ft., or a 1920 x 1080 (60Hz) signal up to 50 ft..

24Awg, solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required to reach maximum distance and resolution.

Includes an additional DVI port for the connection of a local monitor.

Local DVI port can be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local).

Mounting hardware is included that allows the B140-004 to be rackmounted, wallmounted or pole mounted.

Up to three B140-004 local units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket.

Compatible with all operating systems.

Plug and play; No drivers required.

HDCP and DDC compatible.

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Dimensions & Weight

Dimensions: 5" x 4" x 1.125"

Package Contents

Package Content: B140-004 DVI Over Cat5 Extender/Splitter, 4-Port
1 ft. DVI daisychain cable
Mounting hardware
External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
Owner Manual
