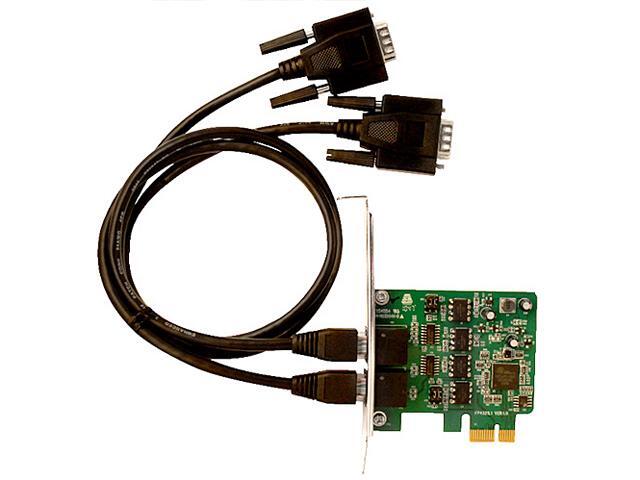

SIIG DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation Model ID-E20211-S1

Sold and Shipped by Newegg

PCI Express to Serial Port Card
921.6 Kb/s (Max) Data Transfer Rate

Overview
Specifications
Warranty & Returns
Reviews
Q&A

SIIG's DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation is a high performance adapter card designed to instantly add two 422/485 serial ports with 15KV ESD and 3KV optical isolation protection to your PCIe enabled desktop computer. Its 422/485 serial interface delivers data transfer rates of up to 921.6Kb/s, and features 15KVDC ESD protection for use in industrial environments. The DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation connects with two RJ-45 to DB9 cables and with the included spare low-profile bracket installs in either standard height or low-profile systems offering the utmost flexibility in system chassis installation.

The DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation is FCC and CE approved and RoHS compliant. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.

Learn more about the SIIG, Inc ID-E20211-S1

Model

Brand: SIIG

Model: ID-E20211-S1

Details

Type: PCI Express to Serial Port Card

External Ports: 2 x Serial Ports

Data Transfer Rate: 921.6 Kb/s (Max)

Operating Systems Supported: Windows 8 (32-/64-bit) / 7 (32-/64-bit) ) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000

Specifications: Chipset: Oxford uPCIe952

FIFO buffers: 256 byte

Serial port cable: 2x
RJ45 (male) to 9-pin DB-9 (male)
Length: 19.7" (50cm)

Requirements:
Desktop PC with an available PCIe slot
Windows 8 (32-/64-bit) / 7 (32-/64-bit) ) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000

Features

Features: Supports serial port data transfer rates up to 921.6 Kb/s

Built in 15KVDC ESD serial interface protection

Built in 3KV optical isolation

Built in 256 byte FIFO buffer

Built in H/W, S/W data direction flow control

Packaging

Package Contents: DP 2-Port Industrial 422/485 PCI Express Adapter Card with 3KV Isolation

Two RJ-45 to DB9 male cable

Software CD

Spare low profile bracke
